INSTALLATION INSTRUCTIONS
8
K

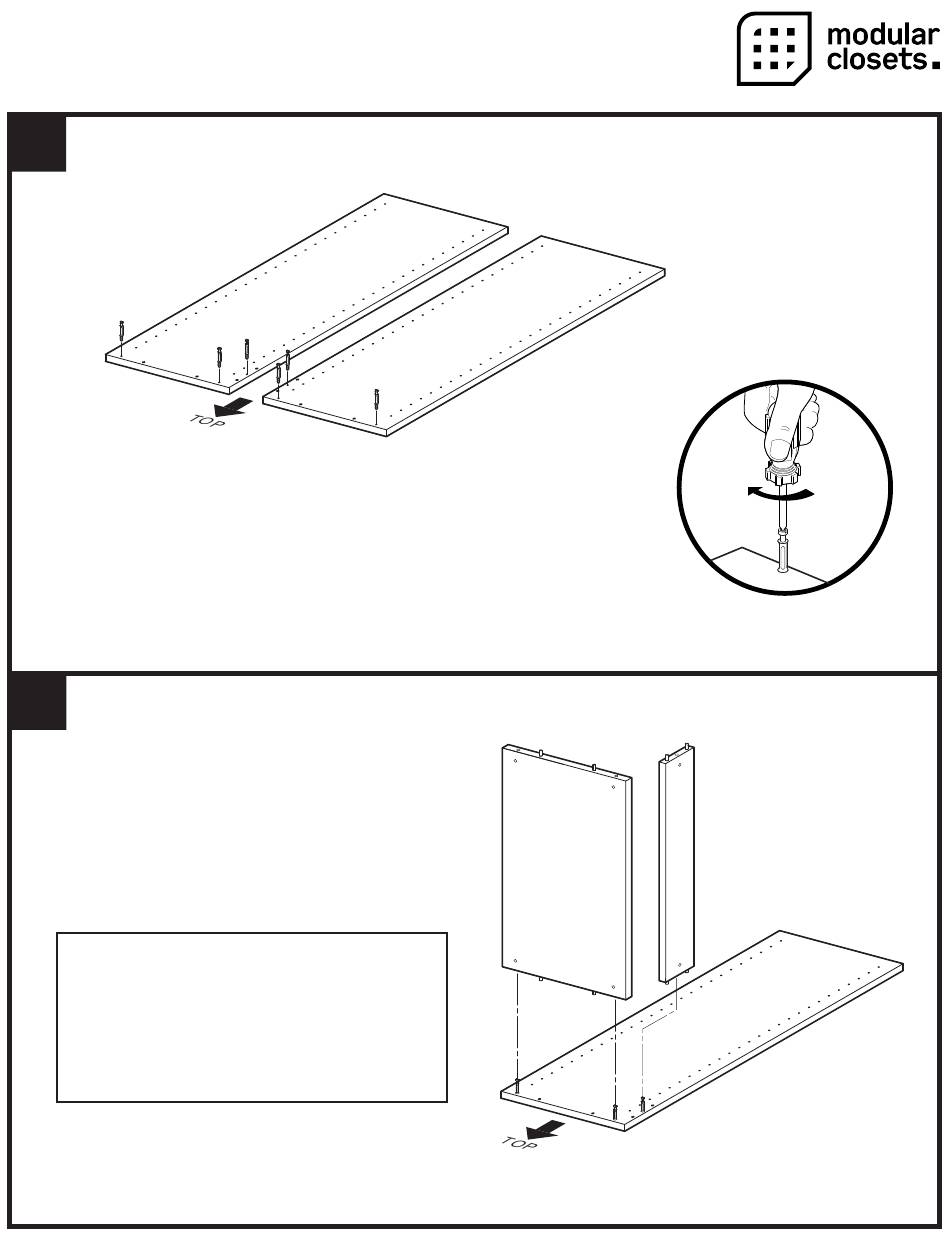

8.1 Install one Cam Post (K) into each of the 6 holes on Upper Left Side Panel (E)
and Upper Right Side Panel (F). Tighten until Cam Posts are seated against
Side Panels.
9
9.1 Assemble Upper Set Shelf (G) and Rear Hanging
Cleat (I) onto Upper Right Side Panel (B) by sliding
the Shelf and Cleat onto Cam Posts (K) on Right
Side Panel. BE SURE dowel pins in Shelf and Cleat
engage drilled holes in Right Side Panel, and all
parts are pressed flush against Panel.
IMPORTANT NOTES
Install Set Shelf (D) with finished edge facing forward
(toward front of unit) and holes for Cam Locks facing
the top of the unit.
Install Rear Hanging Cleat (I) with holes for Cam
Locks facing the rear of the unit and unfinished edge
against Set Shelf (D).
