INSTALLATION INSTRUCTIONS
4

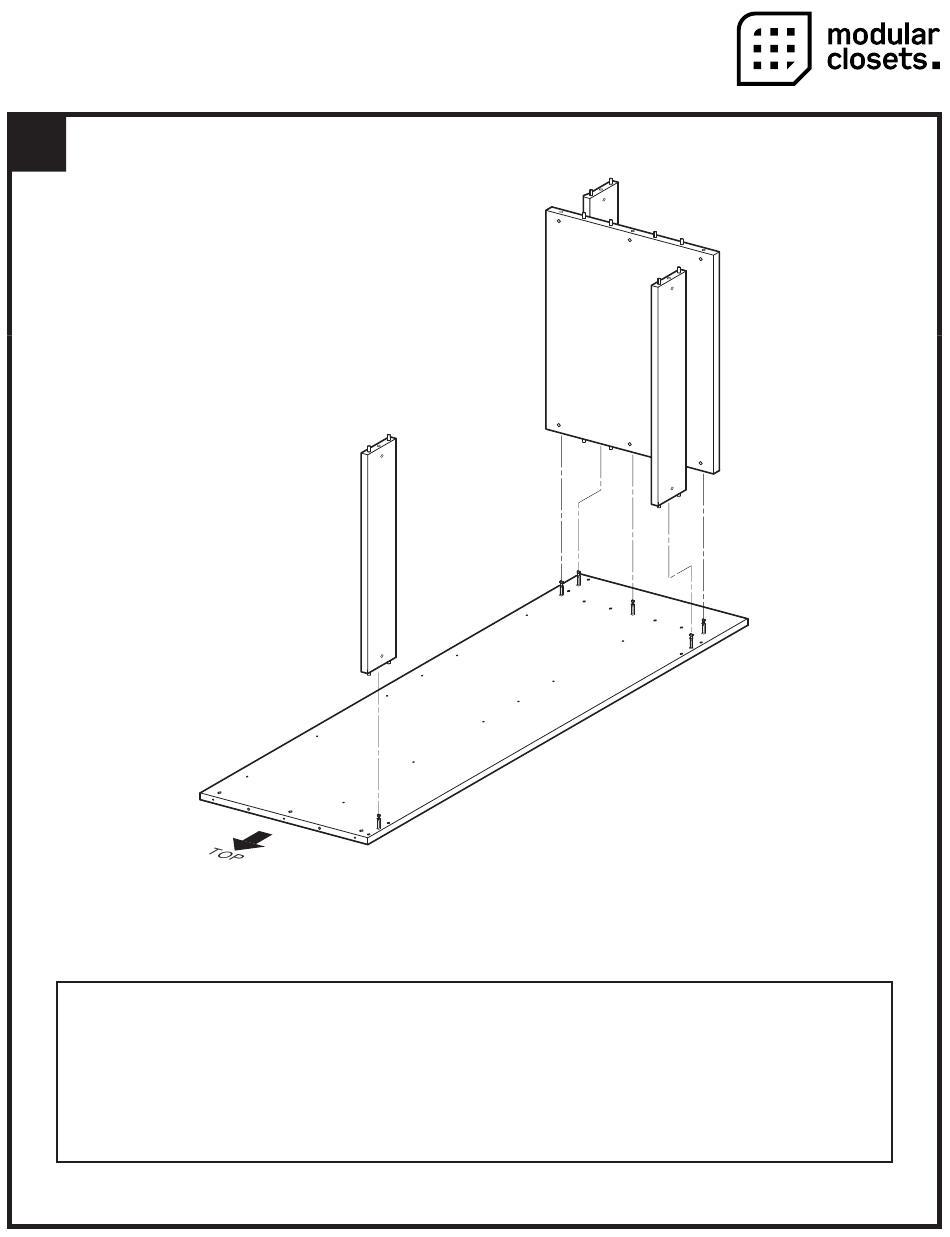

4.1 Assemble Base Set Shelf (D), Rear Hanging Cleats (I) and Toe Kick (J) onto Base Right Side Panel (B) by sliding
the Shelves, Cleats and Toe Kick onto Cam Posts (K) on Right Side Panel. BE SURE dowel pins in Shelves, Cleats
and Toe Kick engage drilled holes in Right Side Panel, and all parts are pressed flush against Panel.
IMPORTANT NOTES
Install Set Shelf (D) with finished edge facing forward (toward front of unit) and holes for Cam Locks facing up
(toward the top of the unit).
Install lower Rear Hanging Cleat (I) and Toe Kick (J) with holes for Cam Locks facing the rear of the unit and
unfinished edges against Set Shelf (D).
Install upper Rear Hanging Cleat (D) with holes for Cam Locks facing the rear of the unit and the unfinished edge
facing the top of the unit.
ASSEMBLY AND
HUTCH
I
K
J
D
I
K
K
