Summary of Contents for TSI Instruments DICKEY-john GAC 2700-LF

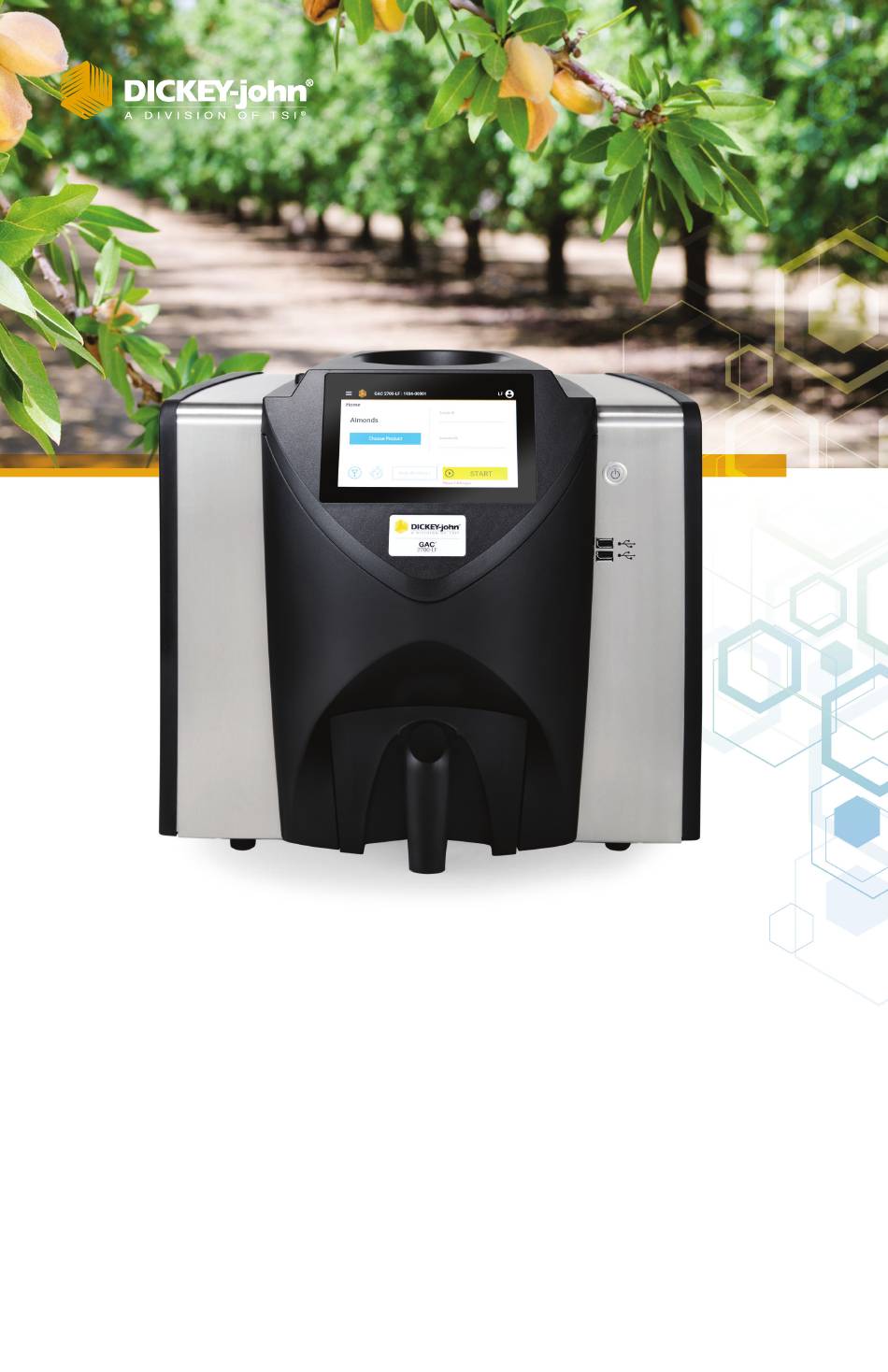

- Page 1 Quick Start Guide 2700-LF ™ Moisture Tester...
- Page 2 O v e r v i e w ™ Thank you for purchasing the GAC 2700-LF moisture tester, ™ which extends DICKEY-john’s GAC 2700 moisture tester capability for products requiring a larger funnel. ™ The GAC 2700-LF moisture tester quickly tests and automatically calculates moisture content, test weight (bulk density), and temperature of the sample using 149 MHz / UGMA technology.
- Page 3 The operator is responsible for ensuring the results of the testing are as accurate as possible by following approved maintenance procedures on a regular basis, making sure the calibrations are up to date and the latest version is being utilized, by cleaning the instrument and its sensors on a regular and as-needed basis depending on the amount of dust, dirt, and debris encountered in the instrument’s use, by monitoring performance using daily check samples and by adhering to the check procedures set...
- Page 4 ™ S e t t i n g u p t h e G A C 2 7 0 0 M o i s t u r e T e s t e r ™ Setting up the GAC 2700 moisture tester requires the following procedures: 1.
- Page 5 6. Press down on the bracket to release. 7. Slide the bracket toward the bottom of the instrument. 8. Insert the hex bolt into the operating location hold and tighten using the Allen wrench. 9. Perform the same procedure to the bracket on the right-side wall. 10.
- Page 6 I n i t i a l S e t u p Once the unit is powered up, the unit will already be logged into the default user profile. This default user can run samples and access most functions of the unit. The default user will be logged into each time the unit is restarted.
- Page 7 A d v a n c e d S e t u p Users should also consider using the Settings menu to configure ™ the GAC 2700 moisture tester to specific application requirements: • Data export via serial port communication •...
-
Page 8: External Cleaning
M a i n t e n a n c e ™ The GAC 2700 moisture tester utilizes an RF frequency of 149 MHz to make measurements within the machine. It is not a strong signal strength. If potential interference is determined to originate from the ™... -
Page 9: Internal Cleaning
Periodically use a rag to wipe the grain hopper and the (2) upper grain hopper sensors. Figure 1 Grain Hopper Sensors INTERNAL CLEANING Performing continuous tests can result in material accumulation around the critical internal components and adversely affect the measurement. Two types of cleaning are recommended on an as needed basis: •... - Page 10 C o m m o n E r r o r C o d e s ERROR ERROR CODE Empty Cell Measurement Out of Spec Empty Cell Weight Out of Spec No Products Installed Fill Motor Jammed Invalid Grain Calibration File Moisture Too High Moisture Too Low Instrument Low Temp Limit Exceeded...
-
Page 11: Warranty
D I C K E Y - j o h n ® W A R R A N T Y Dealers have the responsibility of calling to the attention of their customers the following warranty prior to acceptance of an order ®... - Page 12 Quick Start Guide 2700-LF ™ Moisture Tester DICKEY-john and the DICKEY-john Logo are registered trademarks of TSI Incorporated in the United 5200 Dickey John Road +1 217-438-3371 ® States and may be protected Auburn, IL 62615 +1 217-438-6012 fax under other country’s trademark www.dickey-john.com ©2023 DICKEY-john registrations.
