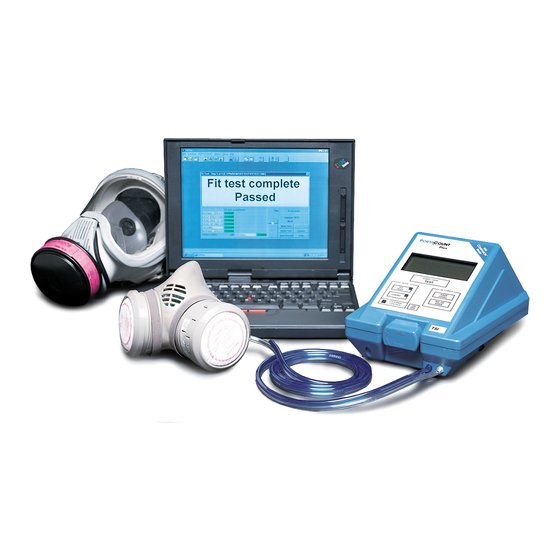

R e s p i r a t o r F i t T e s t i n g
SHIP/MAIL TO:
TSI Incorporated
500 Cardigan Road
Shoreview, MN 55126-3996
USA
U.S.
Technical Support:
1-800-874-2811
1-651-490-2811
Fax:
1-651-490-3824
P
ORTA
Operation and Service Manual
®
C
Plus
OUNT
Model 8020
P/N 1980092, Revision M
August 2006
E-mail address:
answers@tsi.com
Website:
http://www.tsi.com
INTERNATIONAL
Technical Support:
(001 651) 490-2811
(001 651) 490-3824
Fax:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PortaCount Plus 8020 and is the answer not in the manual?

Questions and answers

Related Manuals for TSI Instruments PortaCount Plus 8020

Summary of Contents for TSI Instruments PortaCount Plus 8020

  • Page 1 R e s p i r a t o r F i t T e s t i n g ® Plus ORTA OUNT Model 8020 Operation and Service Manual P/N 1980092, Revision M August 2006 SHIP/MAIL TO: E-mail address: TSI Incorporated answers@tsi.com 500 Cardigan Road...
  • Page 2 Copyright© TSI Incorporated / 1997–2006 / All rights reserved. Part Number 1980092 / Revision M / August 2006 Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the operator's manual, shall be free from defects in workmanship and material for twenty-four (24) months, or the length of time specified in the operator's manual, from the date of shipment to the customer.

  • Page 3: Table Of Contents

    CONTENTS CHAPTERS UNPACKING........................1 IDENTIFYING THE PARTS ....................3 Keypad..........................3 Display ..........................4 Status Messages .........................4 SERVICE ......................4 LOW BATTERY Warning ..................5 LOW PARTICLE ....................5 Sampling Ports ........................5 Electrical Connections ......................6 Alcohol Related Parts ......................7 Miscellaneous Parts ......................8 CONDUCTING A FIT TEST ....................11 Why Fit Test? ........................11 Preparations for Fit Testing ....................11 Respirators for Quantitative Fit Testing................11...
  • Page 4 Re-assembling the Alcohol Cartridge ................34 Drying the Alcohol Wick ....................34 Daily Checks........................35 Particle Check ......................35 Zero Check........................35 Max FF Check ......................36 Battery Maintenance......................37 Shipping & Storage Precautions ..................38 TROUBLESHOOTING ......................39 Troubleshooting the P Plus ................39 ORTA OUNT On-line Troubleshooting Guide ..................39 Nozzle Cleaning ........................44 APPENDICES SPECIFICATIONS ......................45...
  • Page 5 INTRODUCTION This manual discusses all aspects of the P ® Plus Respirator Fit Tester except for topics that ORTA OUNT concern the use of the Fit Test Software with a computer. Regardless of whether you intend to use the Plus with or without software, you should become familiar with this manual first. Many of ORTA OUNT the details in this manual that concern P...

  • Page 7: Chapters

    Chapter 1 UNPACKING ® The following items are included with the P Plus Respirator Fit Tester. If any are missing or ORTA OUNT damaged, notify TSI immediately. Standard items included with the P Plus ORTA OUNT Model 8020 Description Plus Model 8020 ORTA OUNT Alcohol Cartridge...

  • Page 9: Identifying The Parts

    Chapter 2 IDENTIFYING THE PARTS Use the numbered paragraphs with the correspondingly numbered arrows to identify the various parts of the P ® Plus Respirator Fit Tester and its accessories. It will be necessary for you to be familiar ORTA OUNT with the part names in order to follow the instructions in this manual.

  • Page 10: Display

    NO. OF EXER Key Use the NO. OF EXER key to view and change the number of exercises to be used in the fit test protocol. Press the key momentarily to check the number of exercises without changing it. Press and hold the key down to scroll through the available values.

  • Page 11: Low Battery Warning

    LOW BATTERY Warning The flashing message: "LOW BATTERY" warns you that there are about 15 minutes remaining before the P Plus turns itself off due to lack of sufficient battery power. Finish the fit ORTA OUNT test in progress and then install a fresh battery, or plug in the AC adapter. LOW PARTICLE The "LOW PARTICLE"...

  • Page 12: Electrical Connections

    Electrical Connections Battery Cover & Battery Cover Latch The battery compartment is located underneath the P Plus behind the Battery Cover. ORTA OUNT Slide your finger under the Battery Cover Latch and lift to remove the cover. Tools are not required.

  • Page 13: Alcohol Related Parts

    AC Adapter Model 8024 The AC Adapter plugs into the External Power Connector on the P Plus and your AC ORTA OUNT wall outlet. The AC Adapter senses the input voltage automatically. Older P s were ORTA OUNT shipped with single voltage AC Adapters. Computer Interface Cable with 9/25 Pin Adapter The Computer Interface Cable (Model 8927) is used to connect the P Plus to an...

  • Page 14: Miscellaneous Parts

    Storage Cap The Storage Cap is used to cover the Cartridge Cavity of the P Plus or to cover the ORTA OUNT Alcohol Fill Capsule, whichever does not currently hold the Alcohol Cartridge. Spare Alcohol Wicks Two spare Alcohol Wicks are included with the P Plus.
  • Page 15 36 & 37 Tube Adapters There are two Tube Adapters shipped with each P Plus. The adapters are used to ORTA OUNT connect the Sample Tube to a respirator sample fitting (or probe) that is larger than the 1/8 inch (3 mm) inside diameter of the Sample Tube.
  • Page 16 Optional—Model 8095 N95-Companion The N95-Companion is an optional accessory that allows the P Plus to fit test lower ORTA OUNT efficiency filtering-facepiece (disposable) respirators such as class N95, R95 and P95 varieties available in the USA and P1 and P2 classes available in many other countries. Class-99, class-100 (USA), and P3 (other countries) disposables can be fit tested with the P Plus alone.

  • Page 17: Conducting A Fit Test

    Chapter 3 CONDUCTING A FIT TEST ® NOTE: This chapter describes how to conduct a quantitative respirator fit test using the P ORTA OUNT Plus Respirator Fit Tester. This procedure assumes that the mask being tested is a negative-pressure air- purifying respirator or a positive-pressure mask temporarily converted to function like a negative-pressure air-purifying respirator.
  • Page 18 Probes for filtering-facepiece (disposable) respirators Disposable respirators can be fit tested by inserting a test probe through the filter material. The optional TSI Model 8025-N95 Probe Kit includes disposable probes and insertion tools. Order TSI Model 8025-N95R Probe Refill Kit for additional probes (no tools). Plus Model 8020 can successfully fit test class-100, class-99 and P3 NOTE: The P ORTA...

  • Page 19: Precautions

    Respirator manufacturers' technique There is a growing number of respirator manufacturers who provide sampling adapters that permit fit testing in one's own respirator. Contact your distributor or call the manufacturer direct and ask if such accessories are available. TSI fit test adapter kits TSI Sampling Adapters allow you to fit test using the respirator that is actually used by that individual.

  • Page 20: Fit Testing With Fitplus Fit Test Software (Version 2.12 Or Higher)

    Fit Testing with FitPlus Fit Test Software (version 2.12 or higher) Most P Plus users conduct fit testing with the included FitPlus Fit Test Software because it ORTA OUNT makes the fit test process easy and provides documentation and record keeping functions. When used, FitPlus software controls all P functions making it unnecessary to use the keypad controls ORTA...

  • Page 21: Fit Testing Without Computer Software

    Fit Testing Without Computer Software Follow the steps below to setup the P Plus for fit testing in “stand-alone” mode instead of ORTA OUNT using FitPlus Fit Test Software. In stand-alone mode, you will have to manually record the fit test results and information about the person and respirator being fit tested.

  • Page 22: Conducting A Fit Test In Stand-Alone Mode

    Conducting a Fit Test in Stand-alone Mode The instructions below assume that you want to perform a fit test using a half-mask respirator in compliance with the US Dept. of Labor, Occupational Safety and Health Administration (OSHA) Respiratory Protection Standard 29 CFR 1910.134. Make appropriate adjustments for other fit test protocols.
  • Page 23 previous exercise will remain visible on the display along with the PASS or FAIL message. As originally shipped, the P Plus will use 60-second exercises to comply with U.S. ORTA OUNT OSHA Standard 29CFR1910.134. Normal breathing Remain still and breathe as usual. Deep breathing Take long deep breaths as if working hard.

  • Page 24: Common Problems Resulting In Low Fit Factors

    Common Problems Resulting in Low Fit Factors Here is a list of the most common problems that result in lower than expected fit factors. Assuming the Plus passes the Daily Checks, explore the following possibilities. ORTA OUNT Not using high efficiency filters If you are not using high-efficiency class-99 or class-100 filters (P3 for non-USA users) on the respirator, you may never get a high fit factor.

  • Page 25: Operating The Portacount Plus

    Chapter 4 OPERATING THE PORTACOUNT PLUS This chapter contains detailed instructions for operating the P ® Plus Respirator Fit Tester ORTA OUNT manually as a stand-alone instrument. You should learn to operate the P Plus in this manner ORTA OUNT even if you plan to use the IBM-PC compatible FitPlus Fit Test Software included with the instrument.
  • Page 26 Locate a fully charged battery pack and plug it into the battery connector located inside the battery compartment. Note that the two connector pins are different sizes. Make certain that the connector is inserted into the battery pack with the correct polarity. DO NOT force the connector into the battery pack.

  • Page 27: Connecting The Optional Printer

    Connecting the Optional Printer The P Plus can be used with an optional portable printer. The printer provides hard copy ORTA OUNT documentation of the fit test and eliminates the tedious and error-prone task of manually recording fit test results. Of course, if you want the ultimate degree of automation, you should use the FitPlus Fit Test Software included with your P Plus.

  • Page 28: Fit Test Mode

    If a printer is used, the data printed in 1-Second Count Mode is actually 2-second averages, printed every 2 seconds (because the printer is too slow to print every second). The Display shows 1-second averages, updated every second. In 15-Second Count Mode, both the Display and printer will show 15-second averages, printed and updated every 15 seconds.
  • Page 29 displayed. The fit factor for the final exercise will be displayed for only 3 seconds. Then a triple "beep" will sound, indicating that the fit test has been completed and the overall fit factor and PASS/FAIL message is visible on the display. If the fit test is terminated before the last exercise is completed (by pressing the TEST START/STOP key), the fit factor display will go blank and the exercise number will reset to zero.

  • Page 30: External Control Mode

    question arises as to whether or not the P Plus is functioning properly. See the ORTA OUNT maintenance chapter for instructions on performing the Daily Checks. External Control Mode External Control Mode is used when the P Plus is being controlled through the Data ORTA OUNT Port by an external computer.

  • Page 31: Changing/Checking The Exercise Duration For Stand-Alone Operation

    Refer to the regulation or standard that applies to your industry or hazard for guidance on which exercises should be performed and how many there should be. Press the NO. OF EXER (number of exercises) key just long enough to hear the audible "beep" to display the number of exercises currently set.

  • Page 32: Status Messages

    All exercise durations were set to 60 seconds when the P Plus was shipped new from the ORTA OUNT factory. The factory timing sequence is: Ambient purge 4 seconds Ambient sample 5 seconds Mask purge 11 seconds Mask sample 40 seconds TOTAL 60 seconds If necessary, the P...

  • Page 33: Service Message

    filtration equipment. Try another location or generate additional particles with a candle or TSI Model 8026 Particle Generator if this is the case. The Ambient Tube may be blocked or restricted in some way, or the sample tubes may be reversed such that the ambient sample is being drawn from the respirator instead of the ambient air.
  • Page 34 ALWAYS KEEP THE ALCOHOL CARTRIDGE IN THE ALCOHOL FILL CAPSULE DURING TRANSPORT AND STORAGE. ALWAYS USE THE ALCOHOL STORAGE CAP TO COVER THE CARTRIDGE CAVITY OF THE Plus DURING TRANSPORT AND STORAGE. ORTA OUNT NEVER LEAVE THE CARTRIDGE CAVITY OPEN LONGER THAN NECESSARY. KEEP THE STORAGE CAP AND ALCOHOL CARTRIDGE CLEAN.

  • Page 35: Maintenance

    Chapter 5 MAINTENANCE Registration Please fill out and mail the registration card that came with your instrument or register online at http://register.tsi.com. You may re-register at any time to update our records. You will need your instrument model number and serial number. Registration allows TSI to keep in-touch with you regarding important information concerning the TSI instrument(s) and software you own.
  • Page 36 The isopropyl alcohol that is required to properly operate the P Plus must be very high purity ORTA OUNT "reagent grade" (99.5% pure) alcohol. Isopropyl alcohol that is available from pharmacies, drug stores, or other consumer outlets is low purity and usually contains significant percentages of water and other substances that can cause performance problems with the P Plus.
  • Page 37 Fill Line Squeeze alcohol into the Alcohol Fill Capsule until it is even with or slightly above the scribed fill-line near the base. RECAP THE ALCOHOL BOTTLE IMMEDIATELY. NOTE: TSI used to provide a black sponge located at the bottom of the Fill Capsule. That sponge is no longer used and should be removed from the Fill Capsule.

  • Page 38: Alcohol Cartridge

    ALWAYS RECAP ALCOHOL FILL CAPSULE AND OTHER CONTAINERS IMMEDIATELY TO PREVENT ABSORPTION OF MOISTURE AND THE ESCAPE OF ALCOHOL VAPORS. If you do not intend to use the P Plus right now, you should store the Alcohol ORTA OUNT Cartridge in the Alcohol Fill Capsule. The Alcohol Fill Capsule is designed to be a safe transportation and storage container for alcohol.

  • Page 39: Changing The Alcohol Wick

    ALCOHOL CARTRIDGE CLEAN. ALWAYS SET THEM DOWN WITH THE END STANDING UP. Changing the Alcohol Wick The wick and screen inside the Alcohol Cartridge may be changed in the field. Two spare wicks and screens were included with the P Plus when it was new.

  • Page 40: Re-Assembling The Alcohol Cartridge

    Hold the screen up to the light and look through it to make sure it is clean. All openings in the mesh should be clear. If any of the openings are blocked, clear them by blowing air through the screen. If the screen cannot be 100% cleaned, replace it with a new one. A new screen is included with each new wick.

  • Page 41: Daily Checks

    Daily Checks There are three maintenance checks that should be performed once each day the P Plus is used ORTA OUNT and whenever a problem is encountered. The Daily Checks must be performed in the order given below. 1. Particle Check 2.

  • Page 42: Max Ff Check

    If the P Plus will not Zero Check, any fit tests you conduct may result in lower fit ORTA OUNT factors than would be measured otherwise. The risk is that you may fail people who actually have good fits, thereby wasting time and effort. There is no possibility that failure to Zero Check could result in overstated fit factors.

  • Page 43: Battery Maintenance

    TSI recommends that the Zero Check Filter be left attached to the sample line whenever the Plus is turned on but not in use. This prevents lint and debris from being drawn into ORTA OUNT the instrument and blocking the air flow. Battery Maintenance NOTE: As of January 2003, battery packs are no longer available from TSI.

  • Page 44: Shipping & Storage Precautions

    Shipping & Storage Precautions It is important to remove all alcohol from the P Plus during transportation and storage. ORTA OUNT Anytime you put the P Plus back into the carrying case you should: ORTA OUNT Remove the Alcohol Cartridge from the P Plus and store it in the Alcohol Fill ORTA OUNT...

  • Page 45: Troubleshooting

    Chapter 6 TROUBLESHOOTING TSI recommends that the P ® Plus Respirator Fit Tester be cleaned and recalibrated annually. ORTA OUNT Try to arrange your fit testing schedule to allow for annual factory recalibration. If your fit testing schedule is seasonal or you expect heavy usage during an upcoming period (such as an outage) we recommend that you have the P Plus serviced prior to that time.
  • Page 46 Symptom Possible Causes Solution SERVICE Message Appears Low on alcohol Refill Alcohol Cartridge. Excessive moisture inside Change Alcohol Wick inside Alcohol Cartridge. Dump old ORTA OUNT alcohol from the Alcohol Fill Capsule and add fresh alcohol. Run 2 hours to dry optics (remove the alcohol cartridge and install storage cap).
  • Page 47 Symptom Possible Causes Solution LOW BATTERY message Battery pack is discharged. Replace the discharged battery appears pack with a charged pack. AC Adapter is malfunctioning. Replace AC Adapter. Poor contact with AC adapter. Clean contacts and spread spilt- pin on back of P ORTA OUNT Does not switch on...
  • Page 48 Symptom Possible Causes Solution Fit factor of 1 or very low Respirator is not equipped with Install proper filter for fit testing. HEPA, class-99, class-100, or P3 Use the optional N95-Companion filters. for class-95 disposable (If the P passes the respirators.
  • Page 49 Symptom Possible Causes Solution Suspicious readings (continued) Leaking respirator probe. Tighten or seal probe. Tubing in fit test adapter is Straighten out tubing. kinked or pinched. Respirator is faulty. Fix or replace the respirator. Particle count is zero or near zero Alcohol level is low.

  • Page 50: Nozzle Cleaning

    Nozzle Cleaning The following procedure can be used to clear the small (pin-hole size) internal nozzle if it becomes clogged with lint or other debris. The symptom of a clogged nozzle is a low (perhaps zero) ambient particle count usually, but not always, causing the Particle Check and/or Max FF Check to fail.

  • Page 51: Specifications

    Appendix A SPECIFICATIONS Model 8020 P Plus ORTA OUNT Size................9.5 in. x 7.5 in. x 5.5 in. (24 cm x 19 cm x 14 cm) Weight................ 3.3 lb. (1.5 kg) Fit Factor Range ............. 1 to greater than 10,000 Concentration Range..........

  • Page 53: Theory Of Operation

    Appendix B THEORY OF OPERATION How the P Plus Works ORTA OUNT The P Plus measures respirator fit by comparing the concentration of microscopic particles ORTA OUNT outside the respirator to the concentration of particles that have leaked into the respirator. The ratio of these two concentrations is called a fit factor.
  • Page 54 Aerosol is drawn through the instrument by a diaphragm vacuum pump operating at a flowrate of 0.7 liter per minute. The flow enters the instrument through either the ambient port or the sample port. The switching valve determines which port is used. The outlet of the switching valve leads to the saturator end cap where the flow splits.

  • Page 55: Calculating Fit Factor

    Appendix C CALCULATING FIT FACTOR Fit factor is defined as the particle concentration outside the respirator divided by the particle concentration inside the respirator. Because ambient concentration can vary over time, the P Plus calculates the fit factor by ORTA OUNT taking the average of the ambient concentrations measured before and after the respirator sample and then dividing by the concentration measured in the respirator.

  • Page 57: Calculating Particle Concentration

    Appendix D CALCULATING PARTICLE CONCENTRATION Particle concentration is calculated by counting the number of particles passing through the sensor in a given period of time. Since the flow rate is known (1.67 cm /sec), the particle concentration can be determined. In 1-Second Count Mode the equation is: Particle Concentrat...

  • Page 59: Internal Timing In Fit Test Mode

    Appendix E INTERNAL TIMING IN FIT TEST MODE NOTES: Internal timing is different when the optional Model 8095 N95-Companion is in use. See the N95-Companion Operation and Service Manual for more information. The exercise timing outlined below occurs when the P Plus is used in Stand-Alone ORTA OUNT...
  • Page 60 Test Sequence in Fit Test Mode as Shipped From Factory Action Time Notes Ambient purge 4 seconds Test started Ambient sample 5 seconds Mask purge 11 seconds Mask sample 40 seconds Ambient purge 4 seconds Ambient sample 5 seconds Display fit factor First cycle (exercise) completed Mask purge 11 seconds...

  • Page 61: Using The Tsi Porta Ount Plus To Fit Test Positive Pressure Respirators

    Appendix F USING THE TSI P PLUS TO FIT TEST POSITIVE ORTA OUNT PRESSURE RESPIRATORS On January 8, 1998, OSHA released the long-awaited revision to the Respiratory Protection Standard 29CFR1910.134. It replaces the standard with the same name and number that was released in 1971. This new revision has far reaching impact on a large number of existing OSHA standards in that it replaces certain provisions related to respirator use.
  • Page 62 When an adapter is not available, the only alternative is to use a surrogate mask or test mask. This involves purchasing a negative-pressure air-purifying mask that has the same sealing surfaces as the positive- pressure mask that will actually be used for respiratory protection. For quantitative fit testing, the mask will need a sampling port so that a sample can be drawn from the breathing zone.

  • Page 63: The Rainbow Passage

    Appendix G THE RAINBOW PASSAGE hen the sunlight strikes raindrops in the air, they act like a prism and form a rainbow. The rainbow is a division of white light into many beautiful colors. These take the shape of a long round arch, with its path high above, and its two ends apparently beyond the horizon.
