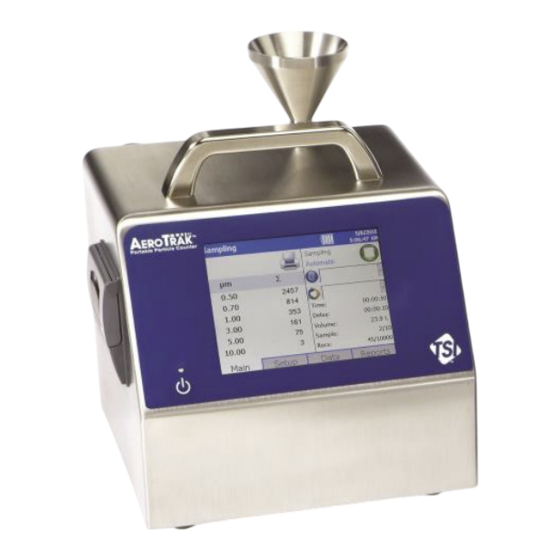

TSI Instruments S9900 Setup Manual

Calibration system for aerotrak handheld, remote, and portable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
TSI
S9900 Calibration
®
System for AeroTrak
Handheld, Remote,
and Portable
Airborne Particle Counters
Setup Manual
P/N 6003620, Revision G
March 2023
www.tsi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S9900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TSI Instruments S9900

Summary of Contents for TSI Instruments S9900

  • Page 1 ® S9900 Calibration ® System for AeroTrak Handheld, Remote, and Portable Airborne Particle Counters Setup Manual P/N 6003620, Revision G March 2023 www.tsi.com...
  • Page 2 Start Seeing the Benefits of Registering Today! ® ® Thank you for your TSI instrument purchase. Occasionally, TSI releases information on software updates, product enhancements ® and new products. By registering your instrument, TSI will be able to send this important information to you. http://register.tsi.com As part of the registration process, you will be asked for your comments on TSI products and services.

  • Page 3: Manual History

    M a n u a l H i s t o r y The following is a manual history of the AeroTrak ® Airborne Particle ® Counters TSI S9900 Calibration System for Handheld, Remote, and Portable Airborne Particle Counters Setup Manual (P/N 6003620). Revision Date April 2010 May 2011...
  • Page 4 (This page intentionally left blank) ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 5: Warranty

    W a r r a n t y Part Number 6003620 / Revision G / March 2023 Copyright ©TSI Incorporated / 2010-2023 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA E-mail Address answers@tsi.com Limitation of Warranty and (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.)
  • Page 6 Customer Service department at 1-800-680-1220 (USA) or +001 (651) 490-2860 (International). Trademarks TSI, TSI logo, and AeroTrak are registered trademarks of TSI Incorporated in the United States and may be protected under other country’s trademark registrations. ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 7: Table Of Contents

    C o n t e n t s Manual History ..................iii Warranty ....................v Contents ....................vii CHAPTER 1 Introduction and Unpacking ..........1 Unpacking ................... 1 Optional Accessories ............... 8 CHAPTER 2 System Setup ..............9 Set up for Dry PSL ................9 Particle Generator Assembly ............
  • Page 8 (This page intentionally left blank) ® ® viii S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 9: Chapter 1 Introduction And Unpacking

    7501/7310/7510 Remote, and Model 8240/8260/9310/9510/9350/ 9550/9500 Portable Airborne Particle Counters. This setup manual will help you quickly begin using your S9900 Calibration System. More detailed information is in the manual for each model of airborne particle counters. This document will help you set up and prepare to ®...
  • Page 10 Purge Filter 0.1 CFM 700005 (zero filter for handhelds) TSI 200 L/min 4040 Flowmeter (22 mm ISO Taper intake and outlet) TSI 300 L/min 4043 Flowmeter (1/2” intake and outlet) ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...
  • Page 11 Part/ Item Description Model Reference Picture Pulse Height Analyzer S7000033 Cable, Photo Board S7000032 Signal To PHA CCAPC Remotes S7000048 Calibration Cover ® Reference 7201-02F Remote USB Hub 710021 USB to RS-232 1102138 Converter HEPA Filters that 710019 carry PSL (QTY 6) Chapter 1: Unpacking and Introduction...
  • Page 12 02BT, 9306-03, 9306- 04, 9306-V2, 9306-10 Portables 24V 3A 801692 Models 9310-02, 9350-02, 9350-03, 9510-02, 9550-02, 9500-01 Power Cord, North 1303053 America/Japan Power Cord 1303230 U.K./Hong Kong 10A/240V Power Cord 1303075 (10A/230V) ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...
  • Page 13 Part/ Item Description Model Reference Picture Power Supply 2613171 100/230 VAC EC 7.5 VDC 1.6 A Conn AC North 1302013 America/IEC320 RTANG Conn AC 1302014 EURO/IEC320 RTANG Conn AC UK/IEC320 1302015 Fuse RTANG Conn AC 1302025 AUST/IEC320 RTANG Tubing 0.19” ID 3ft 801688 Power Supply 700253...
  • Page 14 Barbed 0.1 CFM 9306 Computer cable 700036 USB A to mini B Computer cable 700033 USB A to B Cross over cable 1102126 Power Cable 7301-P 700117 Calibration inlet kit S7000128 ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...
  • Page 15 Part/ Item Description Model Reference Picture Makeup air valve S7000147 Assembly Dilution Air Tee S7000148 Assembly ARwP Calibration S7000248 Test Fixture CCAPC SS Mixing S7000269 Chamber Chapter 1: Unpacking and Introduction...

  • Page 16: Optional Accessories

    Small beam dump/Mirror Removal tool Large beam dump removal tool T-handle large mirror removal tool Stand Dated License Key Part/ Item Description Model Reference Picture CCAPC Field S7000077 Calibration Software License key ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 17: Chapter 2 System Setup

    C H A P T E R 2 S y s t e m S e t u p The standard setup uses all of the S9900 Calibration System components. S e t u p f o r D r y P S L For all PSL sizes 3 µm and greater, dry PSL is used.
  • Page 18 (700098) to one side. The smaller, middle port is used for the PSL carrying filter assemblies. Dry PSL Particle Generator 700098 100 L/min Zero Filter Assembly 710019 PSL Filter Kit 710017 0.44” I.D. Tubing S7000148 Dilution Tee ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 19: Set Up The Flow Cal Flowmeter Assembly

    S e t u p t h e F l ow C a l F l o w M e t e r As s e m b l y The dilution bridge will come pre-assembled. The dilution bridge allows adjustment of the particles concentration.

  • Page 20: Wet Particle Generation Setup

    1. Tubing 0.19” ID (801688) should be cut to 8-12” long. 2. Connect the nebulizer (S7000050) at the top with 0.19” ID (801688) tube to the dilution bridge (S7000051). ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 21: Tubing Connections

    T u b i n g C o n n e c t i o n s S7000148 710016 700098 Dilution Air Tee 0.31” I.D. Tubing 100 L/min Zero Filter Assy. 710017 0.44” I.D. Clean Dry Air S7000147 Tubing 4043 (tubing not Makeup Air Assembly Flowmeter...
  • Page 22 (make sure the flow meter is set to volumetric mode). Instrument Flow Rate (L/min) Makeup Air Flow Rate (L/min) 2.83 28.3 33.0 55.0 110.0 ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 23: Setup For Aerotrak Remote With Pump

    ® S e t u p f o r Ae r o T r a k R e m o t e w i t h P u m p NOTICE Use CCAPC Field Calibration Software version 4 when calibrating the AeroTrak ®...

  • Page 24: Communications

    Open the ® Windows control panel and click on the Network Connections icon. 2. Click on the Local Area Connection icon in the list of connections. ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...
  • Page 25 3. Double-click on the Internet Protocol (TCP/IP) item. 4. Set the IP Address to a fixed address as shown below and click OK and OK again. 5. Plug in the Ethernet crossover cable between the computer and the ARwP or plug in the two standard cables and Ethernet hub between the computer and ARwP.

  • Page 26: Other Communication And Power Connections

    USB plug into an available USB port on the computer or into the USB hub. Plug in the 12 VDC power supply (700006) into remote and to an appropriate power source (110 to 250 VAC 50/60 Hz). ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 27: Handheld 9303 Cable Connections

    H a n d h e l d 9 3 0 3 C a b l e C o n n e c t i o n s ® Communications with a TSI Handheld 9303 uses an USB A to mini B connection (700036).

  • Page 28: Calibration Overview

    There is no need to disassemble the calibration kit once it has been set up for use, unless transportation of the kit requires it. Mounting the system on a transportable board or case may shorten setup times. ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 29: Chapter 3 System Maintenance

    C H A P T E R 3 S y s t e m M a i n t e n a n c e M a i n t e n a n c e 1. Replace wet PSL every week.
  • Page 30 5. Replace tubing once a year. 6. Clean all fittings and mixing chamber once a year. ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 31: Chapter 4 Contacting Customer Service

    Stirling Road Cressex Business Park High Wycombe, Bucks HP12 3ST UNITED KINGDOM Telephone: +44 (0) 149 4 459200 E-mail: tsiuk@tsi.com TSI Instruments Singapore Pte Ltd 150 Kampong Ampat #05-05 KA Centre SINGAPORE 368324 Telephone: +65 6595-6388 Fax: +65 6595-6399 E-mail:...
  • Page 32 TSI Instrument (Beijing) Co., Ltd. Unit 1201, Pan-Pacific Plaza, No.12 A, Zhongguancun South Avenue Haidian District, Beijing CHINA 100081 Telephone: +86 10 8219 7688 Fax: +86 10 8219 7699 E-mail: tsibeijing@tsi.com ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...

  • Page 33: Returning For Service

    R e t u r n i n g f o r S e r vi c e and complete the on-line “Service Visit our website at https://tsi.com/service Request” form or call TSI ® at 1-800-680-1220 (USA), (651) 490-2860, or 001 651 490-2860 (International) for specific return instructions.
  • Page 34 (This page intentionally left blank) ® ® S9900 Calibration System for AeroTrak Airborne Particle Counters...
  • Page 36 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 680 1220 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030 P/N 6003620 Rev.
