Summary of Contents for TSI Instruments 4046

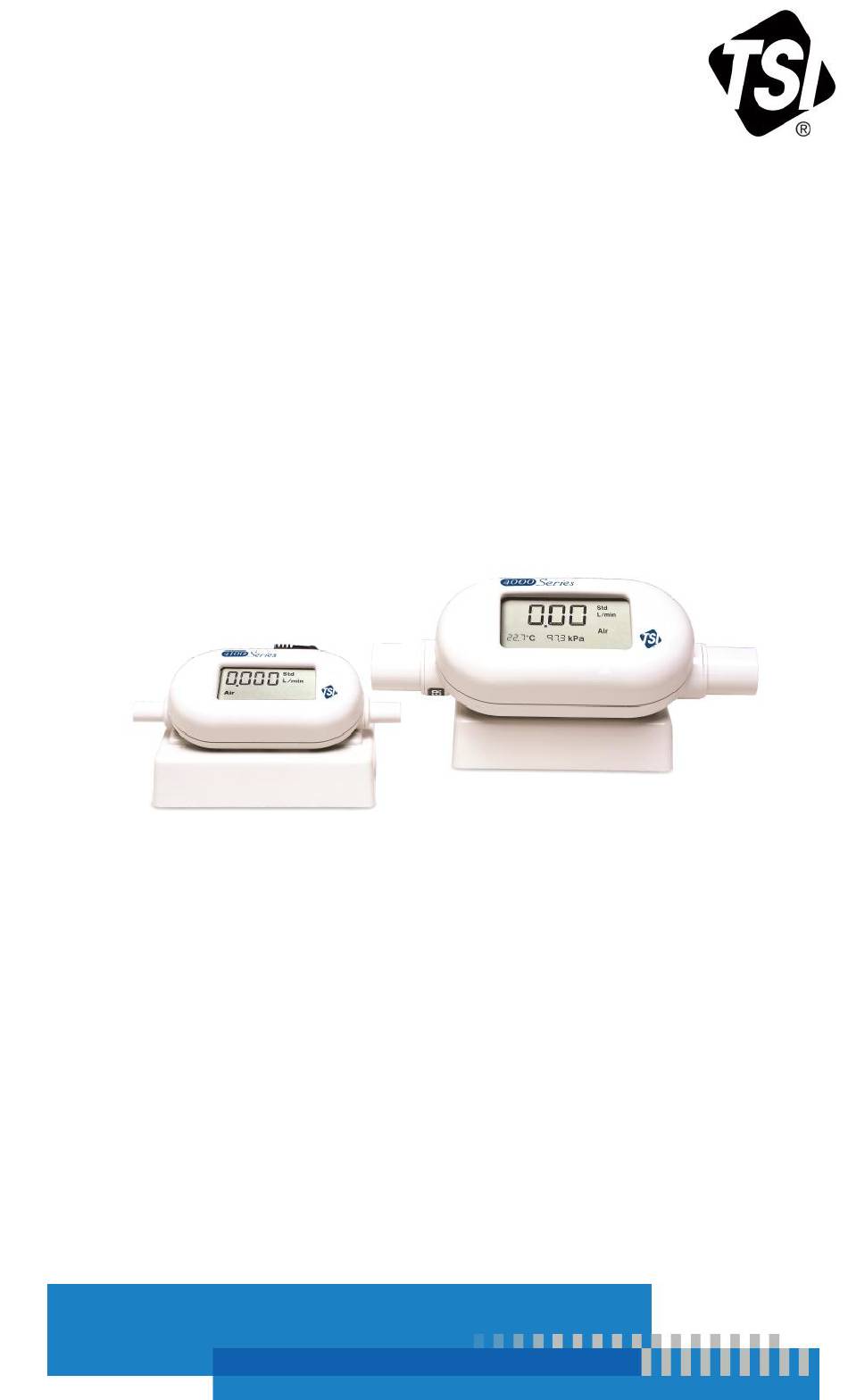

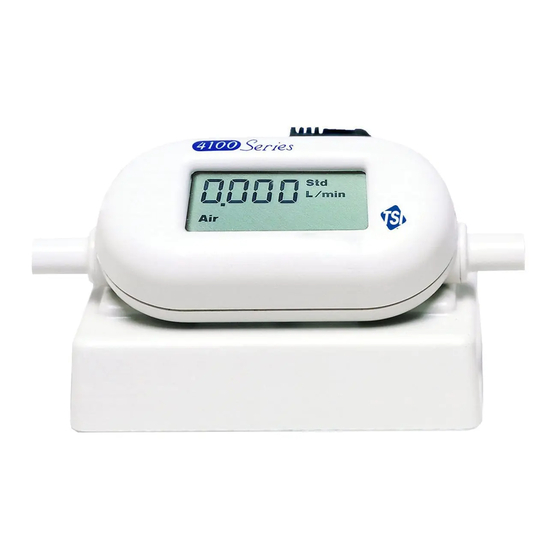

- Page 1 Primary Calibrators Model 4046/4146 User’s Guide P/N 1980512, Revision H May 2022 www.tsi.com...
- Page 2 Start Seeing the Benefits of Registering Today! ® Thank you for your TSI instrument purchase. Occasionally, ® releases information on software updates, product enhancements and new products. By registering your ® instrument, TSI will be able to send this important information to you.
- Page 3 Copyright TSI Incorporated / 2004-2022 / All rights reserved. Address TSI Incorporated, 500 Cardigan Road, Shoreview, MN 55126 USA W A R N I N G ® calibrators employ a heated platinum sensor. They should not be used in the presence of flammable or explosive gases or mixtures.
- Page 4 EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS. TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE...
-
Page 5: Table Of Contents
CONTENTS CHAPTERS Unpacking and Parts Identification .......... 1 Setting-Up ................... 3 Assembly Instructions for the Calibrators ........3 Supplying Power ................4 Connecting Filter and Flow Tubes ..........4 Operation ..................7 Overview ..................7 ON/OFF Switch ................7 Flow Rate Measurement .............. 7 Setting Flow Rates and Calibrating Instruments ...... - Page 6 (This page intentionally left blank)
-
Page 7: Chapters
Model 4046: 22 mm 1S0 taper 1602292 Model 4146: 63 mm HEPA filter with 0.375 inch 1602342 barbed fittings Tubing Kit Model 4046 with connectors and battery pack TK4000 mounting lugs Model 4146 with connectors and battery pack TK4100 mounting lugs... - Page 8 Figure 1-1 Model 4046 Components 1. Calibrator 5. 6 AA-size Batteries 2. Soft-Sided Carrying Case 6. Adapter 7. User’s Guide 3. Mounting Lugs 4. Tubing 8. High-Efficiency Inlet Filter Figure 1-2 Model 4146 Components 1. Calibrator 6. High-Efficiency Inlet Filter 7.
-
Page 9: Setting-Up
Chapter 2 Setting-Up Assembly Instructions for the Calibrators The calibrator can be quickly attached to the battery pack by screwing the mounting lugs into the threaded holes in the base of the calibrator. The lugs should then be placed over the receiving holes in the top of the battery pack and snapped gently into place. -
Page 10: Supplying Power
Power Supply: 7.5 VDC ± 1.5 V, 300 mA maximum Connecting Filter and Flow Tubes The Model 4046/4146 has a thermal sensor exposed to the air flow ® that must be protected from foreign matter and particles. TSI supplies a filter that should be connected to the inlet of the calibrator;... - Page 11 Figure 2-2 Typical Setup Configurations Setting-Up...
- Page 12 Active Sampling Instrument without internal dampening chamber (e.g., ® SidePak AM510 Personal Aerosol Monitor) Figure 2-3 Typical Dampening Module Set Up Use the 6 in. (15 cm) tubing to connect the dampening chamber in line between the Model 4146 Calibrator and the instrument. For best results, position Dampening Module with openings to the side, off the work surface.
-
Page 13: Operation
Be sure to follow all instrument manufacturer’s flow setting and calibration procedures. 1. Start up the Model 4046/4146 Calibrator and let it warm up for 1 minute prior to setting any flow rates or conducting any calibrations. -
Page 14: Dampening Module
Dampening Module The Dampening Module is included for use with systems that DO NOT have internal dampening chambers. The Dampening Module (P/N 1040229) can be added in line between the end of the sampling train and the Model 4146 calibrator. The Dampening Module reduces flow pulsation with insignificant affect on flow rate or back pressure. - Page 15 NOTICE ® The TSI DustTrak and SidePak Sampling Pumps contain internal dampening chambers. The Dampening Module is not needed to measure flow rates with these instruments. ® The TSI SidePak AM510 Personal Aerosol Monitor does not ® contain an internal dampening chamber. TSI recommends using the Dampening Module when using the Model 4146 Calibrator to measure AM510 flow rates.
- Page 16 (This page intentionally left blank) Chapter 2...
-
Page 17: Maintenance
Re-certification To maintain a high degree of confidence in the measurements made ® by the Model 4046/4146, TSI recommends that the instrument be ® returned to TSI every 12 months for re-certification. The calibrator... -
Page 18: Storage
Storage When storing the calibrator, ALWAYS cover the ends of flow tubes with the caps provided to prevent dust or other foreign matter from entering the tube. Chapter 4... -
Page 19: Troubleshooting
Chapter 5 Troubleshooting Table 3 lists the symptoms, possible causes, and recommended solutions for common problems encountered with Model 4046/4146 Calibrators. If the symptom is not listed, or if none of the solutions ® solves the problem, please contact TSI Technical Support at 1-800- 680-1220 or 651-490-2860. - Page 20 ® contact an applications engineer at TSI Incorporated, (651) 490-2860 or contact answers@tsi.com. • If the Model 4046/4146 fails, or if you are returning it for service, ® visit our website at tsi.com/service or contact TSI TSI Incorporated...
-
Page 21: Specifications
0 to 50°C Storage, Ambient ..-20 to 60°C Physical Dimensions Model 4046: 7.2 in. × 2.5 in. × 2.1 in. External Dimensions ..(18.3 cm × 6.4 cm × 5.3 cm) Model 4146: 5 in. × 2 in. × 1.25 in. - Page 22 NOTES: Accuracy stated at standard conditions of 21.1°C and 101.3 kPa. Accuracy stated with air temperature and flow body temperature within ±10°C of one another. Accuracy stated measuring dry air (less than 10% R.H.). Includes ±0.5% of reading repeatability. Volumetric flow rate is calculated from the mass flow measurement. Add an additional 0.25% of reading to the flow accuracy to account for the uncertainty in measuring air temperature and pressure.
- Page 23 Figure A-1 Model 4046 Dimensions Figure A-2 Model 4146 Dimensions Specifications...
-
Page 25: Primary Vs. Secondary Standard
Appendix B Primary vs. Secondary Standard By definition, a primary standard is one whose value is without relation or comparison to any other reference. There are three primary standards—mass, length, and time. There is no primary standard for air flow rate since the measurement is dependent on all three primary standards of mass, length, and time. - Page 26 (This page intentionally left blank) Appendix B...
- Page 28 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 680 1220 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030 P/N 1980512 Rev.
