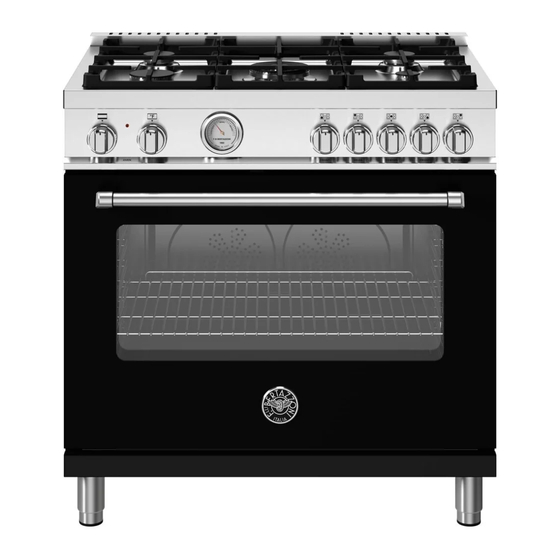

- Page 1 INSTALLATION MANUAL USER AND MAINTENANCE MANUAL FREESTANDING DUAL FUEL RANGES, GAS WORKTOP, ELECTRIC MANUAL CLEAN OVEN MODEL www.bertazzoni.com...
- Page 3 Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.
- Page 5 USER MANUAL VALIDITY The following manual is valid for all the product codes mentioned below: • MAS365DFMNEV • MAS365DFMBIV • MAS365DFMXV • PRO365DFMXV...
-
Page 6: Table Of Contents
............... . . BERTAZZONI SERVICE . - Page 7 ..............KEEPING YOUR BERTAZZONI CLEAN .
-
Page 9: Installation Manual
WHAT TO DO IF YOU SMELL GAS Natural or LP gas. • Do not try to light any appliance. FOR THE INSTALLER: Before installing the Bertazzoni • Do not touch any electrical switch. appliance, please read these instructions carefully. This appliance shall be installed in accordance with the •... -
Page 10: Data Rating Label
WARNINGS WARNING Cancer and Reproductive Harm — www. P65Warnings.ca.gov. DATA RATING LABEL The data rating label shows the model and serial number of the range. It is located under the control panel and in the last page of this manual. Fig. -
Page 11: Before Installation
BEFORE INSTALLATION GAS PRESSURE • This appliance shall only be installed by an authorized professional. The maximum inlet gas supply pressure incoming to the • This appliance shall be installed in accordance with the gas appliance pressure regulator is 1/2 PSI (13.8″ iwc or manufacturer’s installation instructions. -
Page 12: Ventilation Preparation
VENTILATION PREPARATION This range will best perform when installed with Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni range and have the same finish for a perfect look. Before installation of the exhaust hood, consult local or regional building and installation codes for additional specific clearance requirements. -
Page 13: Specifications
SPECIFICATIONS 25'' 15/16 3 '' 7/16 11/16 Fig. 2 • A 36″ • B 37″½ MAX Injector By–pass Burner Pressure Max Rate Min Rate diam.[mm] Type [iwc] [Btu/hr] [Btu/hr] diam.[mm] 3,500 0.90 4″ 1,025 Regulated Auxiliary 3,300 0.54 10″ 0.29 (Propane) 5,900 1,729... -
Page 14: Clearance Dimensions
CLEARANCE DIMENSIONS INSTALLATION ADJACENT TO KITCHEN METAL HOOD CABINETS 36″(91.5 cm) This range may be installed directly adjacent to existing 25 1/2″(65 cm) and 31 1/2″ (80 cm) countertop high cabinets (36″ or 91.5 cm from the floor). 13″ (33.0 cm) For the best look, the worktop should be level with the 18″... -
Page 15: Installation Requirements
INSTALLATION REQUIREMENTS ELECTRICAL properly-grounded horizontally-mounted electrical receptacle should be installed no higher than 3″ (7.6 cm) above the floor, no less than 2″ (5 cm) and no more than 8″ (20.3 cm) from the left side (facing product). Check all local code requirements. An agency-approved, properly-sized manual shut-off valve should be installed no higher than 3″... -
Page 16: Electrical Connection
ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD Disconnect electrical power at the circuit breaker box or fuse box before installing the appliance. Provide appropriate ground for the appliance. Use copper conductors only. Failure to follow these instructions could result in serious injury or death. ELECTRICAL GROUNDING This appliance is equipped with a three-prong plug for your Fig. -
Page 17: Four Wires Connection
ELECTRICAL CONNECTION FOUR WIRES CONNECTION • Connect the L1 receptacle terminal to the incoming BLACK electrical supply wire (L1-hot wire) • Connect the L2 receptacle terminal to the incoming RED electrical supply wire (L2-hot wire) • Connect the NEUTRAL receptacle terminal to the incoming NEUTRAL (WHITE) electrical supply wire •... -
Page 18: Wiring Diagram
WIRING DIAGRAM The electric wiring diagrams and schematics are attached behind the range, and should not be removed except by a service technician, then replaced after service. Fig. 11... -
Page 19: Gas Connection
GAS CONNECTION FLEXIBLE CONNECTIONS WARNING DO NOT USE AN OPEN FLAME WHEN In case of installation with flexible couplings and/ or quick- CHECKING FOR LEAKS! disconnect fittings, the installer must use a heavy-duty, AGA design-certified commercial flexible connector of at Leak testing of the appliance shall be conducted according least 1/2″... -
Page 20: Pressure Regulator
GAS CONNECTION PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has two female threads 1/2″... -
Page 21: Installation
INSTALLATION APPLIANCE INSTALLATION UNPACKING THE RANGE • Remove all packing materials from the shipping pallet but leave the adhesive-backed foam layer over brushed- metal surfaces to protect it from scratches until the range is installed in its final position. Only the film on the side panels should be removed before inserting the range between the cabinets. -
Page 22: Installing The Legs
INSTALLATION INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly To increase the clearance between the front edge of the installed. worktop and the burners, it is possible to install a front guard for the worktop. -
Page 23: Installing The Island Trim
INSTALLATION INSTALLING THE ISLAND TRIM INSTALLING BACKGUARD (OPTIONAL) The island trim must be installed prior to operation of the The backguard must be installed prior to operation of the appliance appropriate ventilation oven appliance appropriate ventilation oven compartment. compartment. The island trim is only placed on the cooktop, remove all The backguard is an optional contact you dealer for buying tape and packaging before installing it. -
Page 24: Installing The Anti-Tip Devices
INSTALLING THE ANTI-TIP DEVICES ANTI-TIP BRACKETS The anti-tip bracket shipped with the range must be properly secured to the rear wall as shown in the picture below. The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been levelled. -
Page 25: Gas Conversion
GAS CONVERSION STEP 1: PRESSURE REGULATOR WARNING Before carrying this operation, The pressure regulator supplied with the appliance is a disconnect the appliance from gas and convertible type pressure regulator for use with Natural electricity. Gas at a nominal outlet pressure of 4″ iwc or LP gas at a nominal outlet pressure of 10″... -
Page 26: Step 2: Surface Burners
Replace nozzles using the conversion set supplied with the and will disappear with use. With propane (LP) gas, slight range or by a Bertazzoni authorized parts warehouse. Each yellow tips on the primary icon are normal. nozzle has a number indicating its flow diameter printed on the body. -
Page 27: Step 4: Minimum Flame Adjustment
GAS CONVERSION STEP 4: MINIMUM FLAME ADJUSTMENT WARNING These adjustments should be made only for use of the appliance with natural gas. For use with liquid propane gas, the choke screw must be fully turned in a clockwise direction. SURFACE BURNERS Light one burner at a time and set the knob to the MINIMUM position (small flame). -
Page 28: Installation Checklist
INSTALLATION CHECKLIST A qualified installer should carry out the following checks: Range mounted on its legs Island trim or Backguard attached according to instruction Anti-tip device properly installed Clearance to cabinet surfaces as manufacturer’s guideline Proper ground connection Gas service line connected following manufacturer’s guideline Valves, stoppers and gasket installed between the range and the service line... -
Page 29: Final Preparation
FINAL PREPARATION • Before using the oven, remove any protective wrap from the stainless steel. • All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless steel cleanser. • If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! •... -
Page 30: Bertazzoni Service
We have a dedicated team of trained 866 905 0010 professionals to answer your needs. https://us.bertazzoni.com/more/support If you own a Bertazzoni appliance and need service in the If located in CANADA: US or Canada please use the following contact information: 800 561 7265 https://ca.bertazzoni.com/more/support... -
Page 31: User And Maintenance Manual
WARNINGS Warning and Important Safety Instructions appearing in this In Massachusetts: manual are not meant to cover all possible conditions and All gas products must be installed by a “Massachusetts” situations that may occur. licensed plumber or gasfitter. A “T” handle type manual gas Common sense, caution, and care must be exercised when valve must be installed in the gas line connected to this installing, maintaining, or operating the appliance. -
Page 32: In Case Of Fire
WARNINGS IN CASE OF FIRE Turn off appliance and ventilation hood to avoid spreading the flame. Extinguish flame then turn on hood to remove smoke and odor. • Cooktop: Smother fire or flame in a pan with a lid or cookie sheet. -
Page 33: Cooking Safety
WARNINGS COOKING SAFETY • DO NOT cook directly on the oven bottom. This could result in damage to your appliance. Always use the oven racks when cooking in the oven. • Once the unit has been installed as outlined in the Installation Instructions, it is important that the fresh air Do not connect any appliances to the plugs above or near supply is not obstructed. -
Page 34: Induction Cooking Surfaces
WARNINGS INDUCTION COOKING SURFACES CLEANING SAFETY • Surface areas on or adjacent to the unit may be hot • Turn off all controls and wait for appliance parts to cool enough to cause burns. Do not touch the cooking area before touching or cleaning them. -
Page 35: Electrical Shock Hazard
WARNINGS ELECTRICAL SHOCK HAZARD WARNING-TIPPING HAZARD Make sure all controls are OFF and oven is COOL before Children and adults can tip over the range if it has not been cleaning. Failure to do so can result in burns or electrical secured. -
Page 36: Worktop And Knobs Layout
WORKTOP AND KNOBS LAYOUT 4 5 6 7 Fig. 31 Heating element Oven functions selector Oven thermostat Left front burner Left rear burner Central burner Right front burner Right rear burner... -
Page 37: Gas Cooktop
GAS COOKTOP BURNER CAPS AND GRATES The correct flame height depends on: • size and material of pan being used The burners and the burner caps must be properly placed • food being cooked for the cooktop to function properly. •... -
Page 38: Using The Power Burners
GAS COOKTOP USING THE POWER BURNERS C. high central-outer D. low central-outer To give further flexibility, the dual power burner can be used as a single simmer burner if the central burner alone is GAS SHUT-OFF SAFETY - THERMOCOUPLE ignited or as a power burner if the outer burner is also ignited. -
Page 39: Electric Convection Oven
ELECTRIC CONVECTION OVEN USING THE OVEN WARNING Attention! When using the oven for the first 1) Place rack in desired position and shut the door. time it should be operated for 15-30 2) Select the oven function with the dedicated function minutes at a temperature of about 500℉/ knob. -
Page 40: Special Functions
ELECTRIC CONVECTION OVEN UPPER BAKE CONVECTION Heat from upper element only. Heat from the convection element and airflow convection with fan. Use this setting for browning and reheating dishes such as Use this mode for most recipes being careful at calibrating lasagne, moussaka and cauliflower cheese. -
Page 41: Condensation
ELECTRIC CONVECTION OVEN CONDENSATION GETTING THE BEST RESULTS • Minimize opening and closing the oven door during It is normal for a certain amount of moisture to evaporate operation. from the food during any cooking process. The amount depends on the moisture content of the food. The moisture •... -
Page 42: Broiling Recommendation
ELECTRIC CONVECTION OVEN BROILING RECOMMENDATION FOOD ITEM CONTROL APPROXIMATE COOKING SPECIAL INSTRUCTIONS TEMPERATURE SETTING TIME AND TIPS SELECTOR BEEF 500℉ fixed temperature 15 to 20 minutes Broil until no pink in center setting Ground Beef Patties, ½″ thick T-Bone Steak 500℉... -
Page 43: Troubleshooting Common Problems With Oven Cooking
ELECTRIC CONVECTION OVEN TROUBLESHOOTING COMMON PROBLEMS WITH OVEN COOKING REMEDY PROBLEMS CAUSE Cakes burned on the sides or not Oven too hot Reduce temperature done in center Use recommended pan size Wrong pan size Cakes crack on top Batter too thick Follow recipe or add liquid Oven too hot Reduce temperature... -
Page 44: Telescopic Glides
ELECTRIC CONVECTION OVEN TELESCOPIC GLIDES The telescopic glides fit any shelf level and work with the wire shelves provided as standard equipment. FITTING THE GLIDES 1) Locate the two spring clips at the front and back of the glides. 2) Locate the pin on the glide that indicates the back. 3) Choose the right level and position the telescopic glide near the upper wire. -
Page 45: Keeping Your Bertazzoni Clean
KEEPING YOUR BERTAZZONI CLEAN BURN HAZARD CLEANING THE INDUCTION COOKTOP Make sure the heating elements are turned off and allowed Allow the glass to cool down until the residual heat indicator to cool completely before any cleaning and/or maintenance is off before cleaning. Never use scouring powders or paste, operation. -
Page 46: Simple Maintenance
Please call our toll free line to identify service technicians in your area: If located in the US, BC, B, Sk and MB 866 905 0010 https://us.bertazzoni.com/more/support Fig. 41 If located in CANADA, ON, QC, PE, NU, NS, NL, NB •... - Page 47 SIMPLE MAINTENANCE TOP OVEN LIGHT Bulb type: halogen G9 120 V, 40 W • Make sure the heating elements are turned off and allowed to cool completely. Disconnect the appliance from the power supply. • Unscrew the glass cover and remove the halogen bulb. •...
-
Page 48: Troubleshooting
GRILLING IN THE OVEN IS SLOW Here are answer to common problems you may experience. You are also welcome to call our toll free Customer Service line to troubleshoot any issue with your Bertazzoni. Have you selected the correct function? CONDENSATION FORMS IN THE OVEN... -
Page 49: Two-Year Limited Warranty Statement
866 905 0010 https://us.bertazzoni.com/more/support Bertazzoni’s liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event If located in CANADA exceed the value of the goods or service or part thereof which gives origin to the claim. -
Page 50: Warranty Exclusions - What Is Not Covered
• Use of the Product for anything other than its intended In no case shall Bertazzoni be held liable or responsible for purpose. damage to surrounding property, including furniture, • Repair service provided by a party other than a cabinetry, flooring, panels and other structures surrounding Bertazzoni authorized service agency. - Page 51 MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF BERTAZZONI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNT...
- Page 52 Via Palazzina, 8, 42016 Guastalla RE © 2023 BERTAZZONI. All rights reserved. 3100872_v.03...
