Technical Support and E-Warranty Certificate www.vevor.com/support

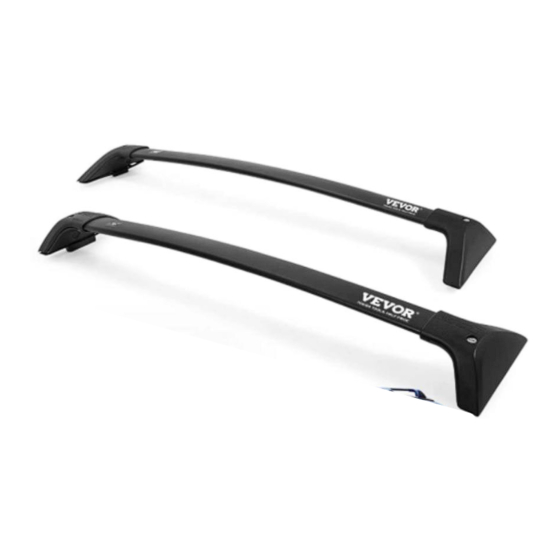

ROOF RACK
MODEL:RB033
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR RB033
Summary of Contents for VEVOR RB033
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ROOF RACK MODEL:RB033 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety And Warning
PRODUCT PAREMETERS Maximum Load Applicable Vehicle Model Net Weight Material Capacity Models RB033 260 lbs RAV4 2019-2023 4 kg 6063-T6 SAFETY & WARNING Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage valuable property. -
Page 4: Accessory List
ACCESSORY LIST Description Description Front Cross Bar (Longer) Socket Head Bolt Rear Cross Bar (Shorter) Flat Washer Mounting Support w/ Cover Cap Lock Key Mounting Support Gasket Hex Wrench Shoulder Bolt Plastic lock cylinder OPERATION Open the mounting support covers using the cap lock key. Assemble the front and rear roof racks as shown. - Page 5 mounting support and secure it with shoulder bolts. Clean the roof before install the roof rack. Using a flat head screwdriver wrapped with a shop towel, remove the four roof trim rail covers. Keep the covers and store in glove box. Locate“FL/FR/RL/RR”...
- Page 6 Secure the front mounting supports with socket head bolts and flat washers. Torque the socket head bolts to 8lb ·ft. Place the rear roof rack supports inside the roof rail openings. - 5 -...
- Page 7 10. Secure the rear mounting supports with two socket head bolts and two flat washers. Torque the socket head bolts to 8 lb ·ft. 11. Torque the shoulder bolts underneath the mounting supports to 6 lb ·ft. 12. After installing each roof rack, check that the gasket on the mounting support is not protruding.
- Page 8 15. After installing the roof rack, rock each rack to make sure it is secure. - 7 -...
- Page 9 Address ： Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351...
- Page 10 Technical Support and E-Warranty Certificate www.vevor.com/support Made in China...
