Summary of Contents for VEVOR 15A-TYPE1

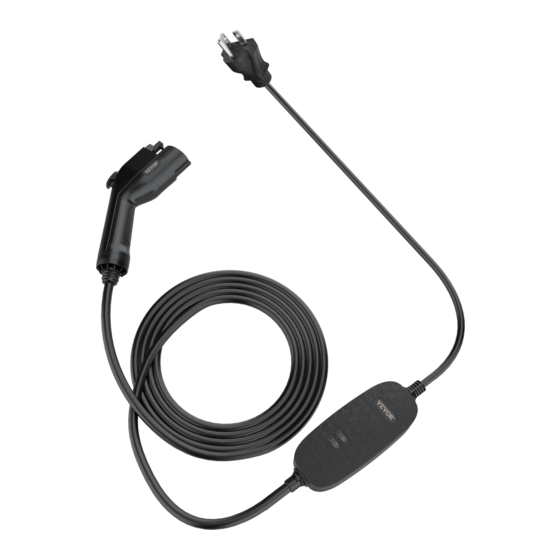

- Page 1 PORTABLE ELECTRIC CAR CHARGER USER MANUAL...
- Page 2 PORTABLE ELECTRIC CAR CHARGER 15A-TYPE1 NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: 855-385-1880 CustomerService@vevor.com Be sure to review the contents of this manual before IMPORTANT : attempting to operate the equipment. This manual should be...
- Page 3 “safety advice and warnings”. This product is intended for domestic use only. Please keep this manual safe for future use. Vevor will not accept any liability if the product is subject to improper use, or failure to comply with this guidance.
-
Page 4: Charging Your Vehicle
-Do not place the charger unit or its cables on or near high temperature items. -Do not leave this product in a closed unventilated environment while in use. -The charger must be grounded. -The charger does not contain any user-serviceable parts. -Please do not disconnect the plugs while the EV charger is charging the vehicle. -
Page 5: Stop Charging
Stop Charging 1. Disconnect the Type 1 plug from the vehicle inlet（Figure 4）. 2. Disconnect the power plug from the outlet（Figure 5）. 3. Replace the charger plug dust cap and store the charger unit in the bag provided, in a dry place（Figure 6）. Troubleshooting LED Light 1 LED Light 2... - Page 6 When the voltage is no lower than 270V±10V for 0.1 second, Blinks the power output will be 3 times Lights off Overvoltage stopped. When the voltage every 2 drops to 254V±10V, charging seconds will start again after a 5-second delay. " When the leakage current is no lower than 25±5mA, the relay Blinks...
-
Page 7: Technical Specification
Technical Specification Model Type 1 Portable Charger Line Input Power 110-240V Current 15A/13A/10A/8A Circuit Breaker Rating 18 amps@240v Power Draw at Idle < 2 watts EV Charging Plug SAE-J1772 (IEC 62196 Type 1) Operating Temperature -22°F to 122°F / -30°C to 50°C Power Plug 6-20/5-15P Cable Length... - Page 8 Tel: 855-385-1880 E-mail: CustomerService@vevor.com...
