Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ...................
Page 3
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… Technical data ....................17 11.1. Technical data for safety switch CES-AP-C.2-… ................17 11.1.1. Typical system times ......................18 11.1.2. Dimension drawing for safety switch CES-AP-C.2-… ............19 11.2. Technical data for actuator CES-A-BLN-… ..................20 11.2.1. Dimension drawing ......................20 11.2.2.
Safety information and any enclosed data sheet form the complete user information for your device. Important! Make sure to use the operating instructions valid for your product version. Please contact the EUCHNER support team if you have any questions.
EN 60204-1 Ì The safety switch is only allowed to be operated in conjunction with the intended EUCHNER CES actuators and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function.
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (translation of the original operating instructions) 2105360-13-08/23...

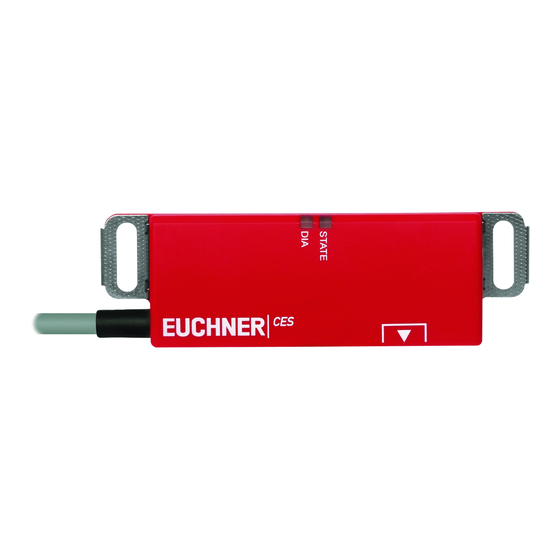

Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 6. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved to/removed from the actuating range. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 7. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for bypassing Ì an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 8. Electrical connection WARNING In the event of a fault, loss of the safety function due to incorrect connection. To ensure safety, both safety outputs must always be evaluated. Ì Monitoring outputs must not be used as safety outputs. Ì...
Use connection components and connecting cables from EUCHNER. Ì On the use of other connection components, the requirements in the following table apply. EUCHNER Ì provides no warranty for safe function in case of failure to comply with these requirements.
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads.
17. A detailed example of connecting and setting the parameters of the control system is available for many devices at www.euchner.com, in the area Downloads/Applications/CES. The features of the respective device are dealt with there in greater detail.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 9. Setup 9.1. LED displays You will find a detailed description of the signal functions in chapter 10. System status table on page 16. Color STATE green 9.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 9.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and the functional check. Before carrying out the functional check, make sure that there are no persons in the danger zone. Ì...
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 10. System status table LED indicator Output Operating mode State closed Normal operation, door closed inverted closed flash Normal operation, door closed, actuator in the limit range Re-adjust door ¨ burst Normal operation open Normal operation, door open open Normal operation, door open;...
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 11.1. Technical data for safety switch CES-AP-C.2-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 95 x 30 x 12...
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11.1.1. Typical system times Please refer to the technical data for the exact values. Ready delay: After switch-on, the device carries out a self-test. The system is ready for operation only after this time. Turn-on time of safety outputs: The max.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11.1.2. Dimension drawing for safety switch CES-AP-C.2-… Safety switch CES-AP-CR2-AH... Fastening lug with Active face reinforcement plate +0,5 Connecting cable with M12 With connecting cable plug connector LEDs Active face 75,5 Safety switch CES-AP-CL2-AH... Active face +0,5 With...
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11.2. Technical data for actuator CES-A-BLN-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions - CES-A-BLN-R2/CES-A-BLN-L2 95 x 30 x 12 - CES-A-BLN-U2 55 x 30 x 12 Weight - CES-A-BLN-R2/CES-A-BLN-L2 0.04 - CES-A-BLN-U2 0.02...
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11.2.2. Operating distances Actuating range for center offset m = 0 Parameter Value Unit min. typ. max. Operating distance Assured operating distances s Switching hysteresis Assured release distance s - in x/z direction - in y direction 1) The values apply to surface mounting of the actuator in metal.
Operating Instructions Non-Contact Safety Switch CES-AP-C.2-… 11.3. Technical data for actuator CES-A-BDN-06 According to drawing Value Unit min. typ. max. Housing material Macromelt PA-based plastic Dimensions 26 x ∅ 6 Weight 0.005 Ambient temperature - 40 + 70 °C Degree of protection IP65/IP67 Installation orientation Power supply...
Internet: www.euchner.com 15. Declaration of conformity The EU declaration of conformity can be found at www.euchner.com. Enter the order number of your device in the search box. The document is available under Downloads. 2105360-13-08/23 (translation of the original operating instructions)
