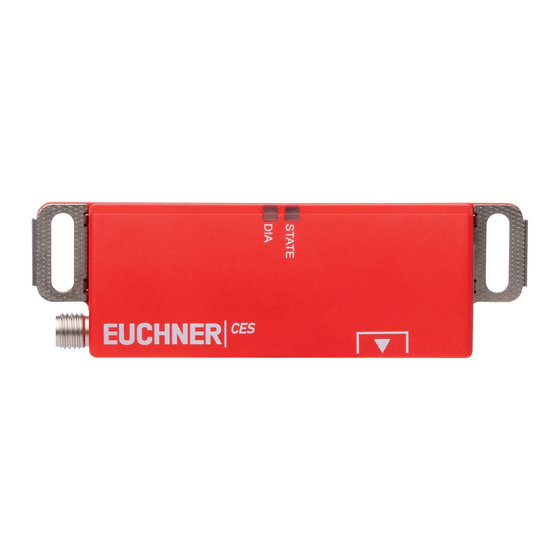

- Page 1 Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… (Unicode/Multicode)
-
Page 2: Table Of Contents
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ................... - Page 3 Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… System status table .................... 22 Technical data ....................23 11.1. Technical data for safety switch CES-AR-C.2-… ................23 11.1.1. Typical system times ......................24 11.1.2. Dimension drawing of safety switch CES-AR-C.2-… .............25 11.2. Technical data for actuator CES-A-BLN-… ..................26 11.2.1.
-
Page 4: About This Document
Important! Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. in the search box. (Translation of the original operating instructions) 2109309-09-03/20... -
Page 5: Correct Use
Ì EN 60204-1 The safety switch is only allowed to be operated in conjunction with the intended EUCHNER CES actuators and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (Translation of the original operating instructions) 2109309-09-03/20... -
Page 7: Function
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 6. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved to/removed from the actuating range. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version. -
Page 8: Mounting
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 7. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation. -
Page 9: Electrical Connection
8. Electrical connection The following connection options are available: Ì Separate operation Ì Series connection with Y-distributors or the passive distribution module AC-DP-…-SA-… from EUCHNER (only with M12 plug connector) Ì Series connection, e.g. with wiring in the control cabinet Ì... -
Page 10: Notes About
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 8.1. Notes about Important! Ì This device is intended to be used with a Class 2 power source in accordance with UL1310. As an alternative an LV/C (Limited Voltage/Current) power source with the following properties can be used: - This device shall be used with a suitable isolating source in conjunction with a fuse in accordance with UL248. -
Page 11: Requirements For Connecting Cables
Ì On the use of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Observe the following requirements with respect to the connecting cables:... -
Page 12: Determining Cable Lengths Using The Example Table
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 8.5.1. Determining cable lengths using the example table Example: 6 switches are to be used in series. Cabling with a length of 40 m is routed from a safety relay in the control cabinet to the last switch (#6). Cables with a length of 20 m each are connected between the individual safety switches. = 140 m = 5 x 20 m = 40 m... -
Page 13: Connector Assignment Of Safety Switch Ces-Ar
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 8.6. Connector assignment of safety switch CES-AR Coding lug View of connection side on the safety switch Figure 2: Connector assignment of safety switch CES-AR Designation Description Conductor coloring Enable input for channel 2 Power supply, DC 24 V Safety output, channel 1 Safety output, channel 2... -
Page 14: Connector Assignment Of Y-Distributor
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 8.7. Connector assignment of Y-distributor Connector assignment of safety switch CES-AR (8-pin plug) and Y-distributor (8-pin socket) Function X1.1 X1.2 X1.3 X1.4 X1.5 X1.6 X1.7 0 V X1.8 Y-distributor with connecting Y-distributor cable 111696 or 112395 097627 Strapping plug 097645 Socket... -
Page 15: Connection Of A Single Ar Device
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. -
Page 16: Connection Of Several Devices In A Switch Chain
Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. - Page 17 Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… Figure 4: Connection example for series connection with reset and changeover switch 2109309-09-03/20 (Translation of the original operating instructions)
-
Page 18: Information On Operation On An Ar Evaluation Unit
Ì Always connect inputs IA and IB directly to a power supply unit or to outputs OA and OB of another EUCHNER AR device (series connection). Pulsed signals must not be present at inputs IA and IB. - Page 19 Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… Figure 5: Connection example for mixed series connection (2 x CES and 1 x CET) to ET200 2109309-09-03/20 (Translation of the original operating instructions)
-
Page 20: Setup
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 9. Setup 9.1. LED displays You will find a detailed description of the signal functions in chapter 10. System status table on page 22. Color STATE green 9.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit. -
Page 21: Teach-In Function With Series Connection, Replacing And Teaching In Device
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 9.2.2. Teach-in function with series connection, replacing and teaching in device It is recommended not to teach-in the actuators in the series connection but to teach them in one by one instead. Teach-in in a series connection works analogously to separate operation in principle. All switches in the chain can be taught-in at the same time. -
Page 22: System Status Table
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 10. System status table LED indicator Output Operating mode State 10 Hz Self-test Self-test after power-up (10 s) closed Normal operation, door closed Inverted Normal operation, door closed, actuator in the limit range Re-adjust door (V. 1.1.2 or high- ¨... -
Page 23: Technical Data
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 11.1. Technical data for safety switch CES-AR-C.2-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 95 x 30 x 12... -
Page 24: Typical System Times
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11.1.1. Typical system times Refer to the technical data for the exact values. Ready delay: After switch-on, the device carries out a self-test. The system is ready for operation only after this time. Turn-on time of safety outputs: The max. reaction time t is the time from the moment when the actuator is in the actu- ating range to the moment when the safety outputs switch on. -
Page 25: Dimension Drawing Of Safety Switch Ces-Ar-C.2
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11.1.2. Dimension drawing of safety switch CES-AR-C.2-… Safety switch CES-AR-CR2-AH... Fastening lug Active face with reinforcement plate +0,5 Connecting cable With with M12 plug connector connecting cable LEDs Active face 75,5 Safety switch CES-AR-CL2-AH... Active face +0,5 With... -
Page 26: Technical Data For Actuator Ces-A-Bln
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11.2. Technical data for actuator CES-A-BLN-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions - CES-A-BLN-R2/CES-A-BLN-L2 95 x 30 x 12 - CES-A-BLN-U2 55 x 30 x 12 Weight - CES-A-BLN-R2/CES-A-BLN-L2 0.04 - CES-A-BLN-U2 0.02... -
Page 27: Operating Distances
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11.2.2. Operating distances Actuating range for center offset m = 0 Parameter Value Unit min. typ. max. Operating distance Assured operating distance s Switching hysteresis Assured release distance s - in x/z direction - in y direction 1) The values apply to surface mounting of the actuator in metal. -
Page 28: Technical Data For Actuator Ces-A-Bdn-06
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 11.3. Technical data for actuator CES-A-BDN-06 Parameter Value Unit min. typ. max. Housing material Macromelt PA-based plastic Dimensions 26 x ∅ 6 Weight 0.005 Ambient temperature - 40 + 70 °C Degree of protection IP65/IP67 Installation orientation Power supply... -
Page 29: Ordering Information And Accessories
12. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in Accessories. -
Page 30: Declaration Of Conformity
Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 15. Declaration of conformity (Translation of the original operating instructions) 2109309-09-03/20... - Page 31 Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… 2109309-09-03/20 (Translation of the original operating instructions)
- Page 32 Edition: 2109309-09-03/20 Title: Operating Instructions Non-Contact Safety Switch CES-AR-C.2-… (Translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 03/2020 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
