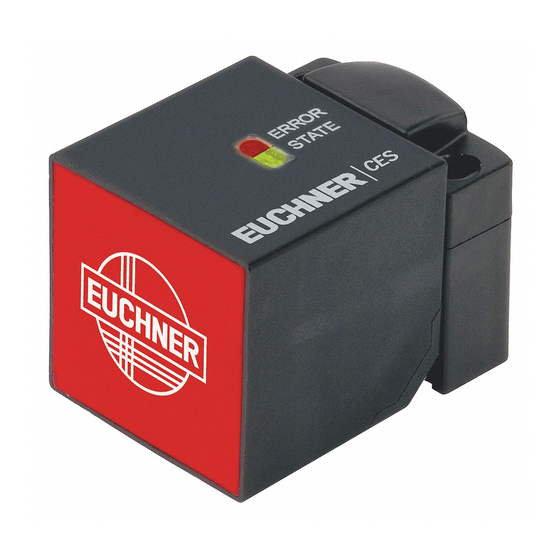

- Page 1 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… (Unicode/Multicode/Fixcode)
-
Page 2: Table Of Contents
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ................... - Page 3 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… System status table .................... 23 Technical data ....................24 12.1. Technical data of safety switch CES-AR-C01-… ................24 12.1.1. Typical system times ......................25 12.1.2. Dimension drawing of safety switch CES-AR-C01-… ............25 12.2. Technical data of actuator CES-A-BBA .....................26 12.2.1.
-
Page 4: About This Document
Important! Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. in the search box. (Translation of the original operating instructions) 2098039-20-02/20... -
Page 5: Correct Use
Ì EN 60204-1 The safety switch is only allowed to be operated in conjunction with the intended EUCHNER CES actuators and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (Translation of the original operating instructions) 2098039-20-02/20... -
Page 7: Function
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 6. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved to/removed from the actuating range. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version. -
Page 8: Changing The Approach Direction
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 7. Changing the approach direction NOTICE Risk of damage to equipment as a result of trapped cables or seals. Ì Make sure that the cables or seals are not trapped or torn off when the approach direction is changed. -
Page 9: Mounting
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 8. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation. -
Page 10: Electrical Connection
9. Electrical connection The following connection options are available: Ì Separate operation Ì Series connection with Y-distributors or the passive distribution module AC-DP-…-SA-… from EUCHNER (only with M12 plug connector) Ì Series connection, e.g. with wiring in the control cabinet Ì... -
Page 11: Notes About
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 9.1. Notes about Important! Ì This device is intended to be used with a Class 2 power source in accordance with UL1310. As an alternative an LV/C (Limited Voltage/Current) power source with the following properties can be used: - This device shall be used with a suitable isolating source in conjunction with a fuse in accordance with UL248. -
Page 12: Requirements For Connecting Cables
Ì On the use of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Observe the following requirements with respect to the connecting cables:... -
Page 13: Determining Cable Lengths Using The Example Table
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 9.5.1. Determining cable lengths using the example table Example: 6 switches are to be used in series. Cabling with a length of 40 m is routed from a safety relay in the control cabinet to the last switch (#6). Cables with a length of 20 m each are connected between the individual safety switches. = 140 m = 40 m = 5 x 20 m... -
Page 14: Connector Assignment Of Safety Switch Ces-Ar
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 9.6. Connector assignment of safety switch CES-AR Coding lug View of connection side on the safety switch Figure 2: Connector assignment of safety switch CES-AR Designation Description Conductor coloring Enable input for channel 2 Power supply, DC 24 V Safety output, channel 1 Safety output, channel 2... -
Page 15: Connector Assignment Of Y-Distributor
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 9.7. Connector assignment of Y-distributor Connector assignment of safety switch CES-AR (8-pin plug) and Y-distributor (8-pin socket) Function X1.1 X1.2 X1.3 X1.4 X1.5 X1.6 X1.7 0 V X1.8 Y-distributor with connecting Y-distributor cable 111696 or 112395 097627 Strapping plug 097645 Socket... -
Page 16: Connection Of A Single Ar Device
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. -
Page 17: Connection Of Several Devices In A Switch Chain
Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. - Page 18 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… Figure 4: Connection example for series connection with reset and changeover switch (Translation of the original operating instructions) 2098039-20-02/20...
-
Page 19: Information On Operation On An Ar Evaluation Unit
Ì Always connect inputs IA and IB directly to a power supply unit or to outputs OA and OB of another EUCHNER AR device (series connection). Pulsed signals must not be present at inputs IA and IB. - Page 20 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… Figure 5: Connection example for mixed series connection (2 x CES and 1 x CET) to ET200 (Translation of the original operating instructions) 2098039-20-02/20...
-
Page 21: Setup
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 10. Setup 10.1. LED displays Color State Meaning illumi- Normal operation nated STATE green - Teach-in operation or power-up flashing - Actuator in limit range (from V. 1.1.2) (refer to chapter 11. System status table on page 23 for further signal functions) illumi- - Internal electronics fault nated... -
Page 22: Teach-In Function With Series Connection, Replacing And Teaching In Device
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 10.2.2. Teach-in function with series connection, replacing and teaching in device It is recommended not to teach-in the actuators in the series connection but to teach them in one by one instead. Teach-in in a series connection works analogously to separate operation in principle. All switches in the chain can be taught in at the same time. -
Page 23: System Status Table
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 11. System status table LED indicator Output Operating mode State 10 Hz Self-test Self-test after power-up (10 s) closed Normal operation, door closed Inverted closed flash Normal operation, door closed, actuator in the limit range Re-adjust door (V. -
Page 24: Technical Data
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 12.1. Technical data of safety switch CES-AR-C01-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions Acc. -
Page 25: Typical System Times
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.1.1. Typical system times Refer to the technical data for the exact values. Ready delay: After switch-on, the device carries out a self-test. The system is ready for operation only after this time. Turn-on time of safety outputs: The max. reaction time t is the time from the moment when the actuator is in the actu- ating range to the moment when the safety outputs switch on. -
Page 26: Technical Data Of Actuator Ces-A-Bba
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.2. Technical data of actuator CES-A-BBA Parameter Value Unit min. typ. max. Housing material Plastic (PPS) Dimensions 42 x 25 x 12 Weight 0.02 Ambient temperature °C Degree of protection IP65/IP67/IP69/IP69K Installation orientation Active face opposite read head Power supply Inductive via read head 12.2.1. -
Page 27: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.2.3. Typical actuating range (only in combination with actuator CES-A-BBA) - 3 0 - 3 0 For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the actuating range of the side lobes is not entered. -
Page 28: Technical Data Of Actuator Ces-A-Bda-18
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.3. Technical data of actuator CES-A-BDA-18 Parameter Value Unit min. typ. max. Housing material - Sleeve PBT-GF30, thermoplastic plastic - Active face PEEK 450, thermoplastic plastic Fixing screw tightening torque Dimensions ∅ 18 x 9 Weight 0.003 Ambient temperature... -
Page 29: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.3.3. Typical actuating range (only in combination with actuator CES-A-BDA-18 on surface mounting) - 3 0 - 2 5 - 3 0 For a side approach direction for the actuator and read head, a minimum distance of s = 8 mm must be maintained so that the actuating range of the side lobes is not entered. -
Page 30: Technical Data Of Actuator Ces-A-Bpa
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.4. Technical data of actuator CES-A-BPA Parameter Value Unit min. typ. max. Housing material Dimensions 40 x 40 x 10 Weight 0.025 Ambient temperature - 25 + 70 °C Degree of protection IP65/IP67/IP69/IP69K Installation orientation Active face opposite read head Power supply Inductive via read head... -
Page 31: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.4.3. Typical actuating range (only in combination with actuator CES-A-BPA on surface mounting) - 4 5 - 4 5 For a side approach direction for the actuator and read head, a minimum distance of s = 6 mm must be maintained so that the actuating range of the side lobes is not entered. -
Page 32: Technical Data Of Actuator Ces-A-Brn
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.5. Technical data of actuator CES-A-BRN Parameter Value Unit min. typ. max. Housing material Dimensions 80 x 40 x 15 Weight 0.06 Ambient temperature - 25 + 70 °C Degree of protection IP67 Installation orientation Active face opposite read head Power supply Inductive via read head... -
Page 33: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 12.5.3. Typical actuating range (only in combination with actuator CES-A-BRN on surface mounting on metal) - 1 0 - 1 5 - 2 0 - 2 5 - 3 0 - 3 5 - 4 0 - 4 5 - 5 0 - 5 5... -
Page 34: Ordering Information And Accessories
13. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in Accessories. -
Page 35: Declaration Of Conformity
Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 16. Declaration of conformity 2098039-20-02/20 (Translation of the original operating instructions) - Page 36 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… (Translation of the original operating instructions) 2098039-20-02/20...
- Page 37 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 2098039-20-02/20 (Translation of the original operating instructions)
- Page 38 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… (Translation of the original operating instructions) 2098039-20-02/20...
- Page 39 Operating Instructions Non-Contact Safety Switch CES-AR-C01-… 2098039-20-02/20 (Translation of the original operating instructions)
- Page 40 Edition: 2098039-20-02/20 Title: Operating Instructions Non-Contact Safety Switch CES-AR-C01-… (Translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 02/2020 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
