4-Bar Harrow Lift Arm Assembly - McFarlane QUADRA-TILL 200 Series Operation And Parts Manual

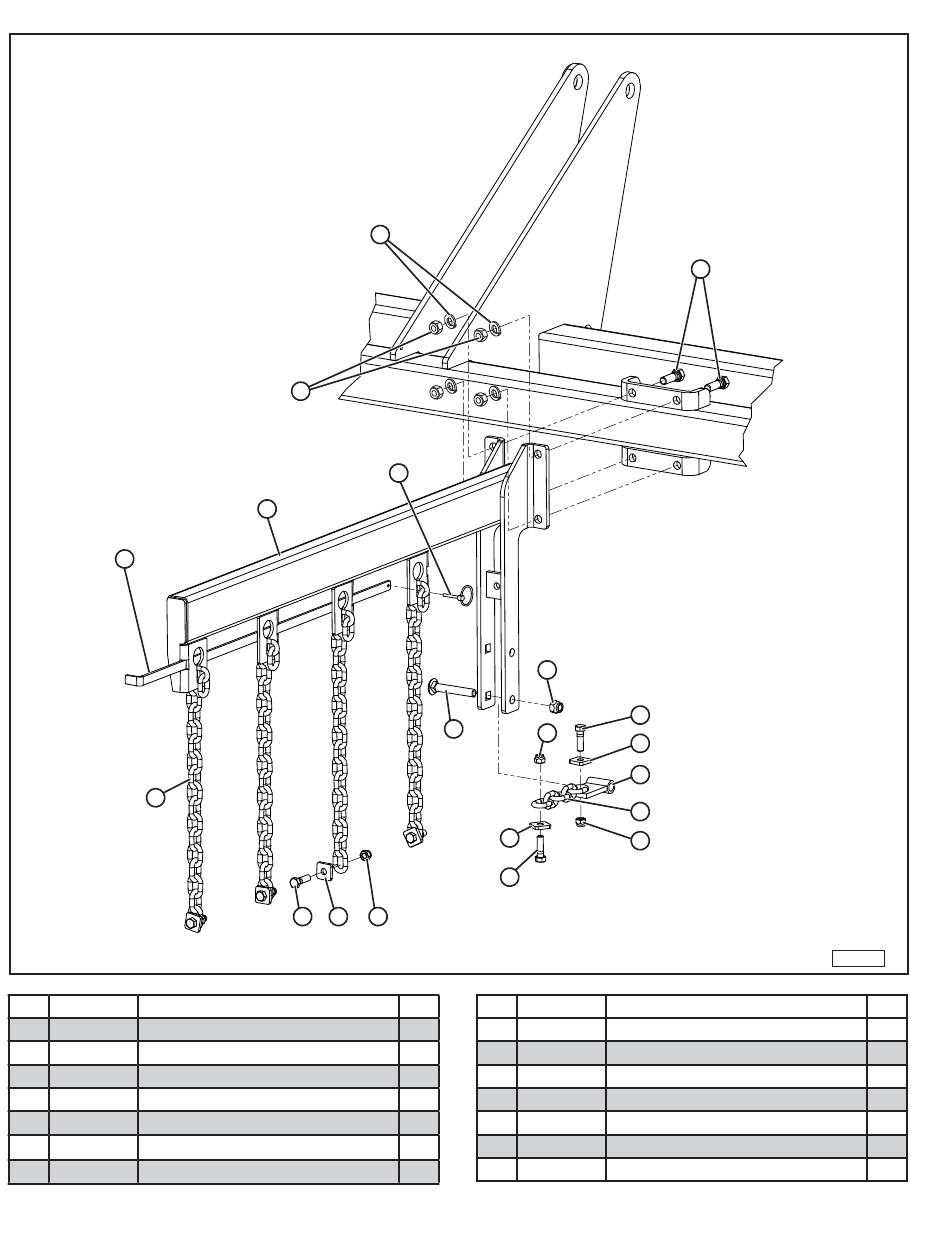

4-Bar Harrow Lift Arm Assembly

11
10
Item Part Number Description
1 QT-1189 LIFT ARM 4-BAR ASSY
2 BH-6320 BOLT, 5/8-11 x 2 GD 5
3 NLT-6311 NUT, TOP LOCK 5/8-11
4 FA-4105 PULL POINT ASSY
5 BC-6340 BOLT, CARRIAGE 5/8-11 x 4 GD 5
6 CH-0805 3/8 x 5 CHAIN
7 BH-5018 BOLT, 1/2-13 x 1-3/4 GD 5
Quadra-Till from McFarlane Mfg.
13
14
12
1
7 8 9
Qty.
1
4
1
1
1
1
6
3
5
9
8
7
Item Part Number Description
8 HDD-016 SQ WASHER 1/2
9 NLT-5013 NUT, TOP LOCK 1/2-13
10 CH-0818 3/8 x 18 CHAIN
11 QT-1190 LOCK BAR, LIFT CHAIN ASSY 4-BAR
12 PC-1913 PIN, CLICK 3/16 x 1-9/16
13 LW-0063 LOCK WASHER, 5/8
14 NH-6311 NUT, HEX, 5/8-11
58
2
7
8
4
6
9
M200-0008
Qty.
6
6
4
1
1
4
4
888-627-8569
