Summary of Contents for KinAn DM5232

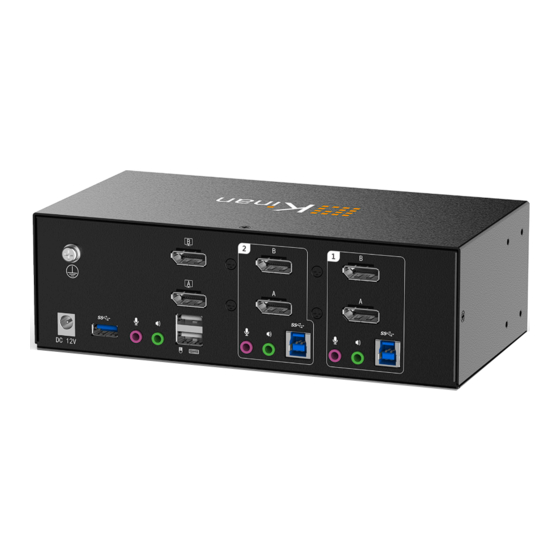

- Page 1 2-Port Dual Monitor UHD DisplayPort KVM Switch www.kinankvm.com @All right reserved Shenzhen Kinan Technology Co., Ltd. Date:2022 / 08 Version: V1.1...
-
Page 2: User Notification
DM5232 User Manual User Notification · All information, documentation, and specifications contained in this manual are subject to change without prior notice. ·The manufacturer does not make any explicit or implied statement or guarantee about the contents of this document, especially for merchantability or fitness for any specific purpose. -
Page 3: Table Of Contents
DM5232 User Manual Content User Notification ....................... 1 Overview........................3 Product Features....................4 Required equipment ....................5 Components.......................6 Front panel......................6 Back panel......................8 Hardware Settings ..................... 9 Connection diagram.....................10 Mouse Switching..................... 10 Hotkey Operation ....................11 Specifications......................12 Frequently Asked Questions................... 13 - 2 -... -
Page 4: Overview
User Manual Overview DM5232 is a 2 in 2 out UHD KVM switch that allows users to access to two dual DP display port computers via a single USB keyboard and mouse. Both input and output support DisplayPort1.2. With a built-in 1 USB 3.0 hub and 2.1 channel audio for rich bass surround sound. -
Page 5: Product Features
DM5232 User Manual Product Features A single USB keyboard and mouse controls 2 computers with dual DP display interface. Supports DisplayPort1.2 input and output. Supports screen dynamic synchronization display---optimize display resolution, speed up switching between systems, and ensure that the screen can be displayed normally (when switching ports, the windows opened on the extended screen will not be restored to their default setting of the main screen). -
Page 6: Required Equipment
DM5232 User Manual Required equipment Please follow the table below to prepare the required equipment and cables. DM5232 Two DP monitors One USB mouse Console One USB keyboard Microphone and Speaker Two DP ports Computers ... -
Page 7: Components
DM5232 User Manual Components Front panel Function Description This panel contains three icons to indicate the mode LED Status and port status. And the mode and port selection Panel buttons have three corresponding LED icons to indicate the status - KVM, audio and USB HUB. - Page 8 DM5232 User Manual LED status panel Components Port LED Mode Selection LED Audio LED KVM LED USB HUB LED Mode selection button and mode indicator Pressing the Mode Selection button at different times will light up different Mode LED Press Button Mode LED that lights up KVM、Audio、USB HUB...
-
Page 9: Back Panel
DM5232 User Manual Back panel Function Description Power input Connect to the 12V power supply Plug USB peripherals (printers, scanners, drivers, USB3.0 interface etc.) into this port Audio output and Connect speaker and microphone here microphone input USB HID ports... -
Page 10: Hardware Settings
DM5232 User Manual Hardware Settings It is important that all connected equipment must be properly grounded to prevent damage from electrical surges or static electricity. Ensure that power of all devices will be connected to this installation are turned off. You must unplug the power cord of all computers with "Keyboard on"... -
Page 11: Connection Diagram
DM5232 User Manual Selecting high-quality cables helps to ensure the resolution of 4K UHD (3840 x2160 @ 60hz) or 4K DCI (4096x2160 @ 60hz) can be reached. Connection diagram Mouse Switching ： ： Middle + left Middle + right... -
Page 12: Hotkey Operation
DM5232 User Manual Hotkey Operation The DM series provides a wealth of hotkey functions to control and configure the device using the keyboard. Press [Scroll Lock] twice continuously (within 2S interval) to enter the keyboard hotkey mode. If no key is pressed within two seconds in the keyboard hotkey mode, the keyboard will exit the hotkey operation mode. -
Page 13: Specifications
DM5232 User Manual Specifications Model DM5232 Computer Connections Port Selection Pushbutton; Hotkey; Mouse Monitor 2 * DisplayPort Keyboard/mouse 2 * USB type A（White） Console Microphone (Pink) 1* 3.5mm Audio Jack Speaker (Green) 1 * 3.5mm Audio Jack Connectors Video input... -
Page 14: Frequently Asked Questions
DM5232 User Manual Frequently Asked Questions Issue Solution Check whether the port indicator on the front panel of the device is on. Check whether the USB cable is connected (USB-B connects to the KVM switch, USB-A connects to the PC host ).
