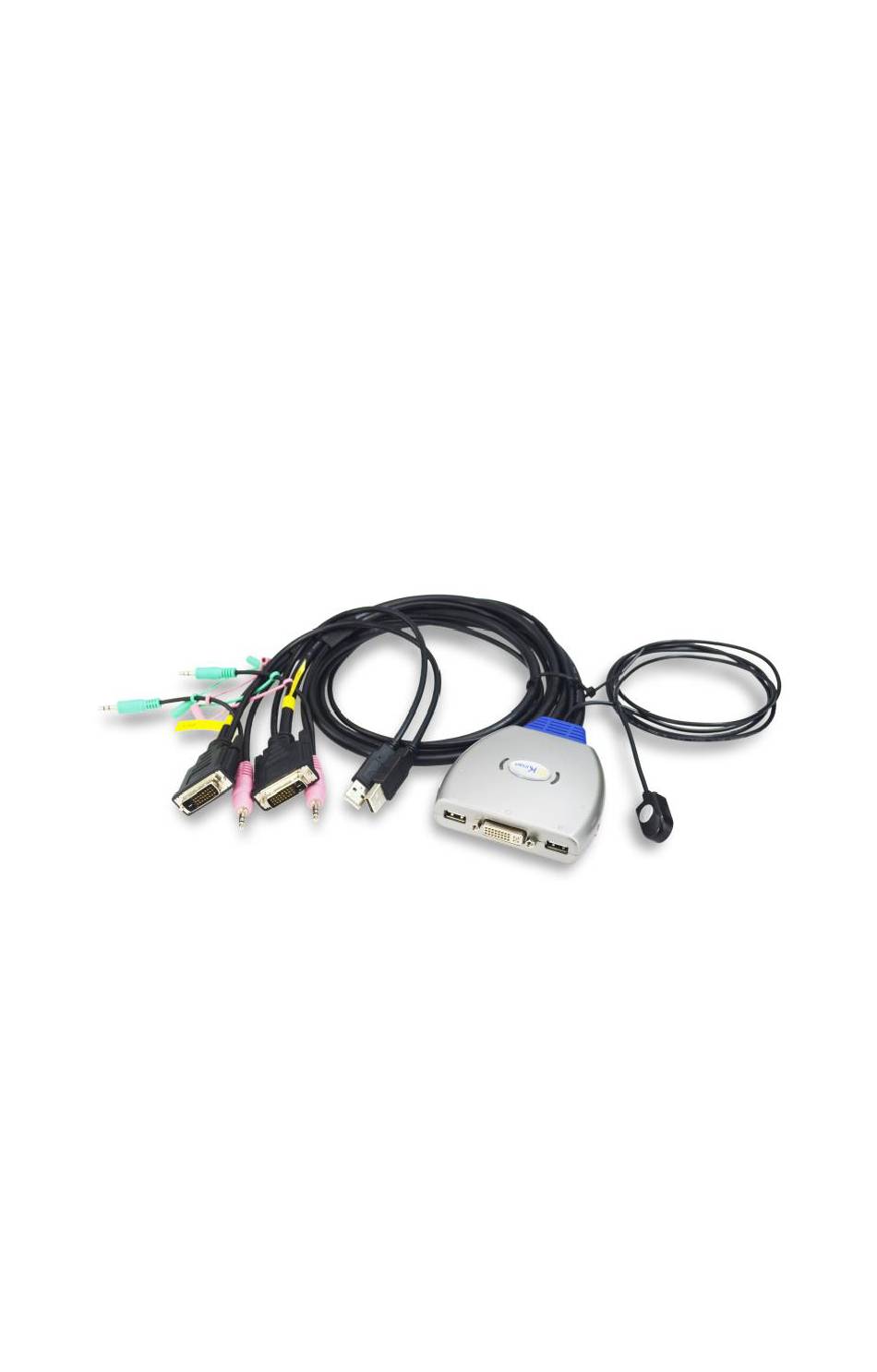

- Page 1 2 Port DVI / Audio KVM Switch User Manual www.kinankvm.com @All right reserved by Shenzhen Kinan Technology Co., Ltd. Date：2019/01 Version: V1.0...

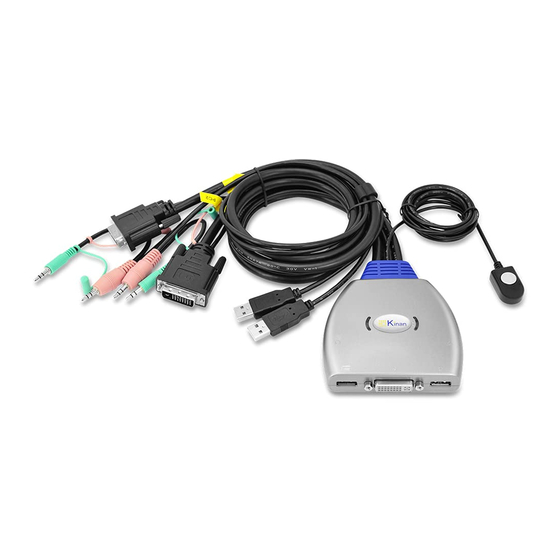

- Page 2 User Manual DV2302 Description DV2302 is a 2 port DVI / Audio cable KVM switch. Users can put the main part under the desk, easily switch the computers via Scroll-Lock or remote port selector. Features One KVM console controls two USB DVI computers ...
- Page 3 User Manual DV2302 Connection Diagram Make sure that the power to any device that you connect to the installation has been turned off. Make sure that all device you will be installing are property grounded. DVI Devices connected to ①: Monitor, projector DVI Devices connected to ③: PC, server, laptop, DVD, STB, SP3...
- Page 4 User Manual DV2302 Hotkey Press Scroll-Lock twice in two seconds, the keyboard will exit the hotkey mode if you do not press any hotkey within 2 seconds. Hotkey commands as below: Commands Operation Instruction Switch between port 1~2 Scroll-Lock + Scroll-Lock...
- Page 5 User Manual DV2302 Specification Model DV2302 Computer Connections Port Selection Hotkey, Remote Port Selector Monitor 1x DVI-D( 24+5 ) Keyboard, 2x USB type A Mouse Console Microphone 1x Min stereo port ( pink) Speaker 1x Min stereo port ( green)
