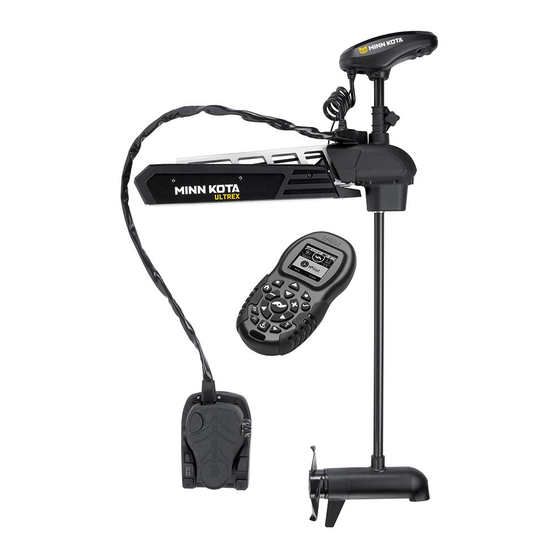

MINN KOTA ULTREX Manual
Bow-mount trolling motor
Hide thumbs
Also See for ULTREX:
- Installation instructions manual (76 pages) ,
- Owner's manual (13 pages) ,
- Installation instructions manual (65 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for MINN KOTA ULTREX
Summary of Contents for MINN KOTA ULTREX
- Page 1 ULTREX™ BOW-MOUNT TROLLING MOTOR Owner's Manual...
- Page 2 Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it’s good enough to bear our name.
- Page 3 TABLE OF CONTENTS SAFETY CONSIDERATIONS ......................4 WARRANTY ..........................5 KNOW YOUR BOAT ........................6 FEATURES ..........................7 INSTALLATION ......................... 8 Assembly of Steering Module to Mount ................9 Installing the Mount......................10 Installing the Gas Spring ....................13 Indexing the Motor ......................14 Rotate the Pedal Control Sleeve Assembly for a Starboard Mount ........
- Page 4 WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat.
- Page 5 Minn Kota Limited Lifetime Warranty on Composite Shaft and Foot Pedal Cables JOME warrants to the original retail purchaser only that the composite shaft and foot pedal cables of the purchaser’s Minn Kota trolling motor will be materially free from defects in materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft and/or foot pedal cable, free of charge, to replace any composite shaft and/or foot pedal cable found by JOME to be defective during the term of this warranty.
- Page 6 KNOW YOUR BOAT Starboard Starboard Port Port Inboard Inboard Outboard Outboard Keel Keel Port Port Starboard Starboard Gunwale Gunwale Transom Transom Stern Stern Gunwale Gunwale Stern Stern Hull Hull 6 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
- Page 7 FEATURES Advanced GPS Advanced GPS Navigation Navigation Pull Grip and Cable Pull Grip and Cable Mono-Arm Mono-Arm Depth Collar Depth Collar Steering Module Steering Module Momentary Momentary On Button On Button Speed Control Speed Control Lifetime Warranty Lifetime Warranty Flexible Composite Shaft Flexible Composite Shaft Power Switch Power Switch...
- Page 8 INSTALLING THE ULTREX Your new Ultrex comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to the installation instructions provided with the bracket.
- Page 9 ASSEMBLY OF STEERING MODULE TO MOUNT MOUNTING CONSIDERATIONS It is recommended that the motor be mounted as close to the keel or centerline of the View accessories boat as possible. Make sure the area under the mounting location is clear to drill holes available for your and install nuts and washers.
- Page 10 INSTALLING THE MOUNT Reinstall the 5/16" Allen Screw and Lock Washer Allen Screw with Allen Screw with and tighten to 18 to 20 ft-lbs with a Torque Wrench. Lock Washer Lock Washer The 5/16" Allen Screw must be tightened when NOTICE: installed and periodically re-tightened to 18 to 20 ft-lbs.
- Page 11 INSTALLING THE MOUNT The Mount can be installed on either the Port Port Starboard or Starboard side of the boat based on personal preference. Test the placement of the Hold-Down Strap to be sure it can hold the Mount as placed. The placement of the buckle on the Hold-Down Strap either inboard or outboard is based on personal preference.
- Page 12 Once the Mount is in position, determine which bolt Pattern 1 Pattern 1 pattern to use. The bolt pattern selected will depend on the deck space available on your boat. Minn Kota requires the use of all six mounting bolts. Pattern Pattern Mark six mounting holes.
- Page 13 INSTALLING THE GAS SPRING Installing the Gas Spring Use the Pull Grip and Cable to disengage the Latch Pull Grip Pull Grip Bar on the Mount. Mount Mount and Cable and Cable With the help of a second person, loosen the Depth Collar and position the motor halfway between the stowed and deployed position so that the Lower Unit rests on the Motor Ramp.
