ULTERRA TRIM/STOW RESET PROCEDURES
In the unlikely event Ulterra will not trim or stow, the following procedure will reset the motor and
restore functionailty:

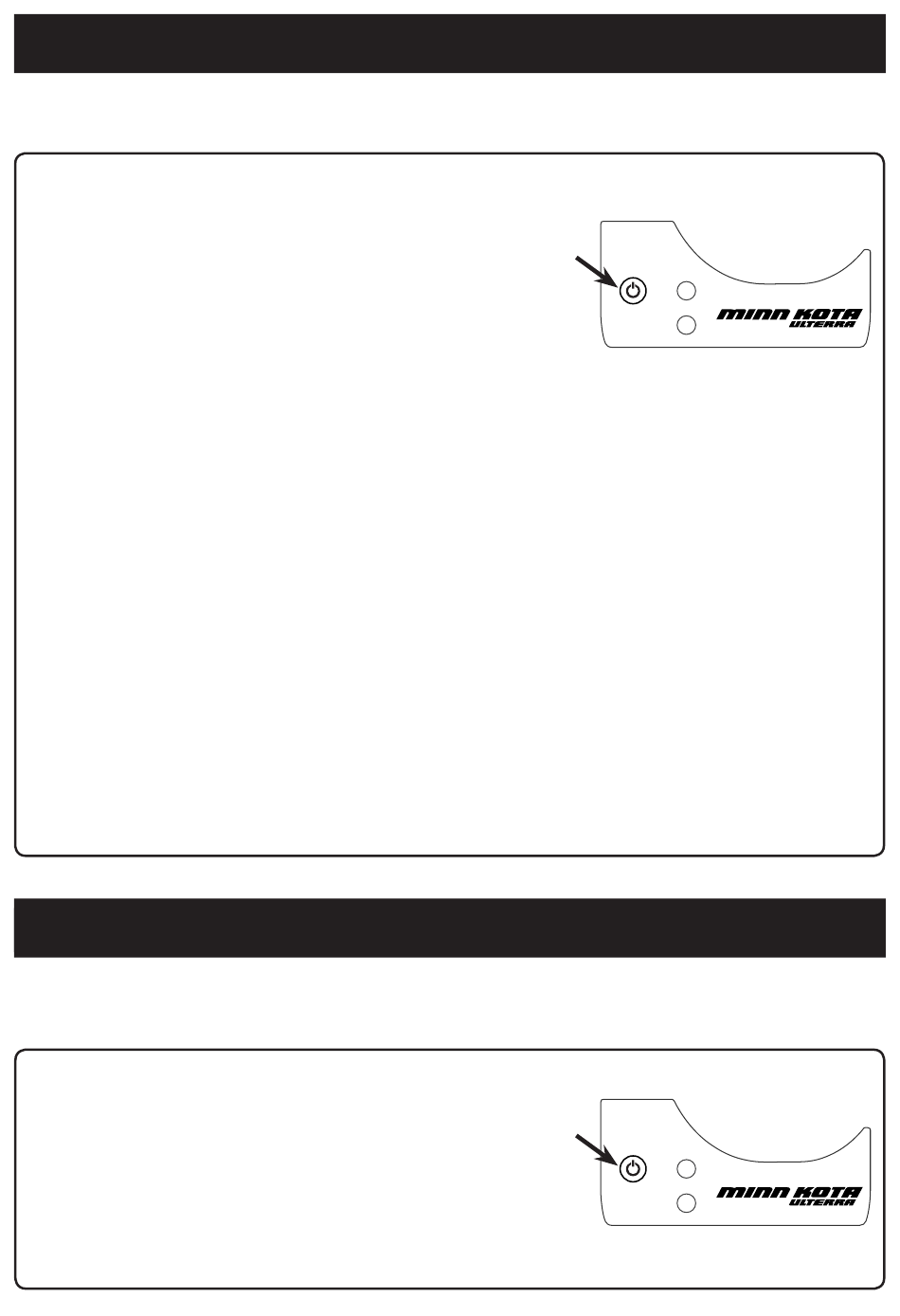

1. Press and hold the POWER button located at the mounting base to turn power off (green
LED light will turn off).
2. Press the POWER button until the green LED light
illuminates.
3. Wait 3 seconds.
4. Press the POWER button 3 times within a 2 second
period.
5. Red and green LED lights will flash continuously and the Ulterra will go through the
following automated sequence:
• Motor will position itself into the proper orientation
• Motor will automatically trim up to the mounting base and trim down approximately 6
inches.
• The flashing red LED light will turn off, and the flashing green LED light will become
solid green.
Ulterra should now be reset and fully functional. If Ulterra does not reset, repeat the
procedure. If the second attempt fails, please contact your local authorized service center or
call Minn Kota service at (800) 227-6433.
If the lower unit of the motor is trimmed within 6 inches of the mounting base and the
NOTE:
boat hull is obstructing the motor's turning radius, manually turn the head of the motor so that
the lower unit is perpendicular to the motor ramps prior to beginning this procedure.
In the unlikely event your i-Pilot or i-Pilot Link remote becomes non-functioning, you can stow
the Ulterra from the base of the motor by completing the following sequence:
1. Ensure that the motor is on.
2. Press and hold the POWER button located at the
mounting base for 10 seconds.
3. The red and green LEDs will flash alternately, and motor
will begin stow process.
Part #2207105
STOWING FROM THE ULTERRA MOTOR
ECN 36848
STATUS
POWER
SYSTEM READY
STATUS
POWER
SYSTEM READY
rev E 9/15
