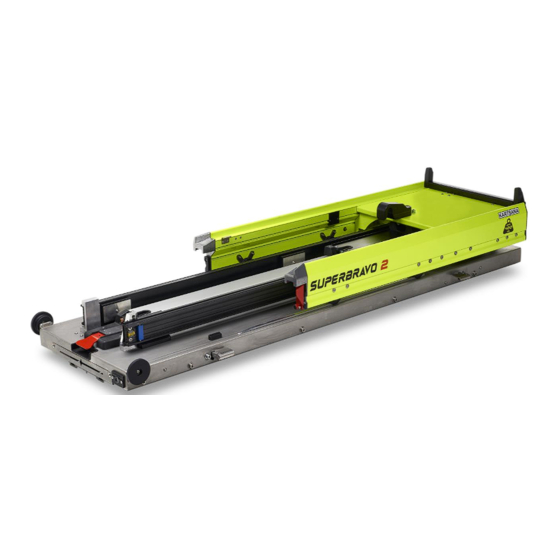

- Page 1 C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès BARCELONA 93 715 86 72 info@kartsana.com www.kartsana.com Superbrava Series SUPERBRAVO ELECTRIC RAIL Model: R-2022 INSTRUCTIONS MANUAL Read these maintenance instructions before using the product and keep them for future references.
- Page 2 OPERATING AND HANDLING OF SUPERBRAVO RAIL Rev.2 05-05-2023...
-
Page 3: Table Of Contents
OPERATING AND HANDLING OF SUPERBRAVO RAIL CONTENTS 1. INTRODUCTION ....................... 3 1.1. F ........................3 OREWORD 1.2. R ..................3 ESPONSIBILITY AND WARRANTY 1.3. S ....................... 5 PECIFICATIONS 1.4. A ........................5 TTENTION 1.5. S ................5 UMARY OF THE SAFETY PRECAUTIONS 2. - Page 4 OPERATING AND HANDLING OF SUPERBRAVO RAIL Rev.2 05-05-2023...
-
Page 5: Introduction
Conditions and Warranty Certificate enclosed with the product). The warranty does not cover defects resulting from incorrect installation, misuse, or improper use of the rail. All repairs must be made by a technical service authorized by Kartsana or its respective representative. -
Page 6: Specifications
OPERATING AND HANDLING OF SUPERBRAVO RAIL 1.3. Specifications SPECIFICATION RAIL SUPERBRAVO R-2022 Maximum unassisted load 400 Kg UNE-EN-1865-5 Standards EN-1789+A1 Total Length 2151 mm Total Widht 674 mm Height 372 mm Recommended operatives required to load / 1 operative, or 2 if the stretcher were occupied by a unload an occupied stretcher larger sized patient. - Page 7 - Kartsana recommends that, prior to installation, the certified mechanic plan the placement of the safety hook in the rear of the vehicle.
-
Page 8: Instructions Manual
OPERATING AND HANDLING OF SUPERBRAVO RAIL 2. INSTRUCTIONS MANUAL Only the SUPERBRAVA stretcher can be mounted on the SUPERBRAVO. SUPERBRAVA stretcher SUPERBRAVO Rail Rev.2 05-05-2023... -
Page 9: Technical Specifications
OPERATING AND HANDLING OF SUPERBRAVO RAIL 2.1. Technical specifications Weight: 143 kg Maximum permissible load: 400 kg (Rail mesures in mm) Rev.2 05-05-2023... -
Page 10: Assembling The Superbrava Stretcher Onto The Superbravo Rail
OPERATING AND HANDLING OF SUPERBRAVO RAIL 2.2. Assembling the SUPERBRAVA Stretcher onto the SUPERBRAVO Rail IMPORTANT: We must adjust the maximum elevation range of the stretcher only the first time we load it on the rail. If we change to another ambulance of a different height, we will have to adjust it again. - Page 11 OPERATING AND HANDLING OF SUPERBRAVO RAIL The stretcher is then raised to the set height at the latest. Check a loading maneuver and readjust if necessary. On uneven terrain or changes in gradient, the stretcher can be raised to its maximum travel by pressing the red button on the right and the yellow button on the right and yellow button on the left at the same time.
- Page 12 OPERATING AND HANDLING OF SUPERBRAVO RAIL The front wheels must always be locked when loading the stretcher onto the rail. Failure to do so may damage important parts of the stretcher. Pull the right rear red trigger on the rail to unlock the mechanism and push the stretcher towards the inside until it reaches the end of the stroke.
-
Page 13: Lateral Movement (Side Pedals)
OPERATING AND HANDLING OF SUPERBRAVO RAIL Do not disconnect the secondary battery from the ambulance when the ambulance is not in service to allow the stretcher battery to charge between services. 2.3. Lateral movement (side pedals) To operate the lateral movement, simply press any of the side pedals along the rail profile: Once pressed, the internal system is released and the rail can be moved laterally in any direction. -
Page 14: Vehicles Configuration
3.1. Vehicle’s configuration This installing instruction are recommended for the fixation of the assembly SUPERBRAVA- SUPERBRAVO (stretcher + rail) of Kartsana. The correct installation of the fastening system (rail) is providential for the appropriate use of the SUPERBRAVA TG-2022. The fixed part of the rail must be fixed at a minimum distance of 50 mm (A) from the rear door of the ambulance (from the rectangular base of the stainless steel). -
Page 15: Fixation Of The Rail To The Ambulance
3.2. Fixation of the rail to the ambulance The SUPERBRAVO 2 rail must be fixed to the ambulance using the aluminium profile 03-1334 and 26 screws DIN 7991 M8-10.1. Simply remove the 4 hexagonal screws at the ends and move the upper plate to release the profile. -
Page 16: Electrical Connection
3.2. Electrical connection The electronics are designed to accept 12 V current. The SUPERBRAVO 2 rail must be connected to the vehicle's electrical system with an electrical cable of at least 4 mm2 cross-section (pay special attention to the + or - poles). -
Page 17: Product Care & Disposal
4. PRODUCT CARE & DISPOSAL 4.1. Servicing requests For any service requests or consultations regarding the use, maintenance, or installation of any KARTSANA product, please contact KARTSANA Customer Care Service. o Telephone #: +34 93 715 86 72 o E-mail: info@kartsana.com... -
Page 18: Maintance
OPERATING AND HANDLING OF SUPERBRAVO RAIL 4.4. Maintenance 4.4.1. Precautionary Maintenance A periodic and correct maintenance guarantees the durability of the device. Creating a maintenance plan including periodic check-ups and establishing a responsible employee to carry it out is recommended. The person who carries out the precautionary maintenance of the appliance (user, manufacturer/supplier or third party) must meet or adhere to the following basic requirements:... -
Page 19: Service Maintenance
SUPERBRAVO RAIL All maintenance other than lubrication, tightening of nuts and bolts and ordinary cleaning must be performed by KARTSANA or an authorized service center. 4.4.2. Servicing Maintenance The person to whom the servicing of the product is entrusted must guarantee the following... -
Page 20: Exploded Superbravo Rail
OPERATING AND HANDLING OF SUPERBRAVO RAIL 6. SUPERBRAVO RAIL EXPLODED Rev.2 05-05-2023... - Page 21 OPERATING AND HANDLING OF SUPERBRAVO RAIL Rev.2 05-05-2023...
- Page 22 OPERATING AND HANDLING OF SUPERBRAVO RAIL Rev.2 05-05-2023...
- Page 23 OPERATING AND HANDLING OF SUPERBRAVO RAIL Rev.2 05-05-2023...
- Page 24 OPERATING AND HANDLING OF SUPERBRAVO RAIL Technical Service C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès sat@kartsana.com BARCELONA TEL. +34 93 715-86-72 info@kartsana.com www.kartsana.com Rev.2 05-05-2023...
