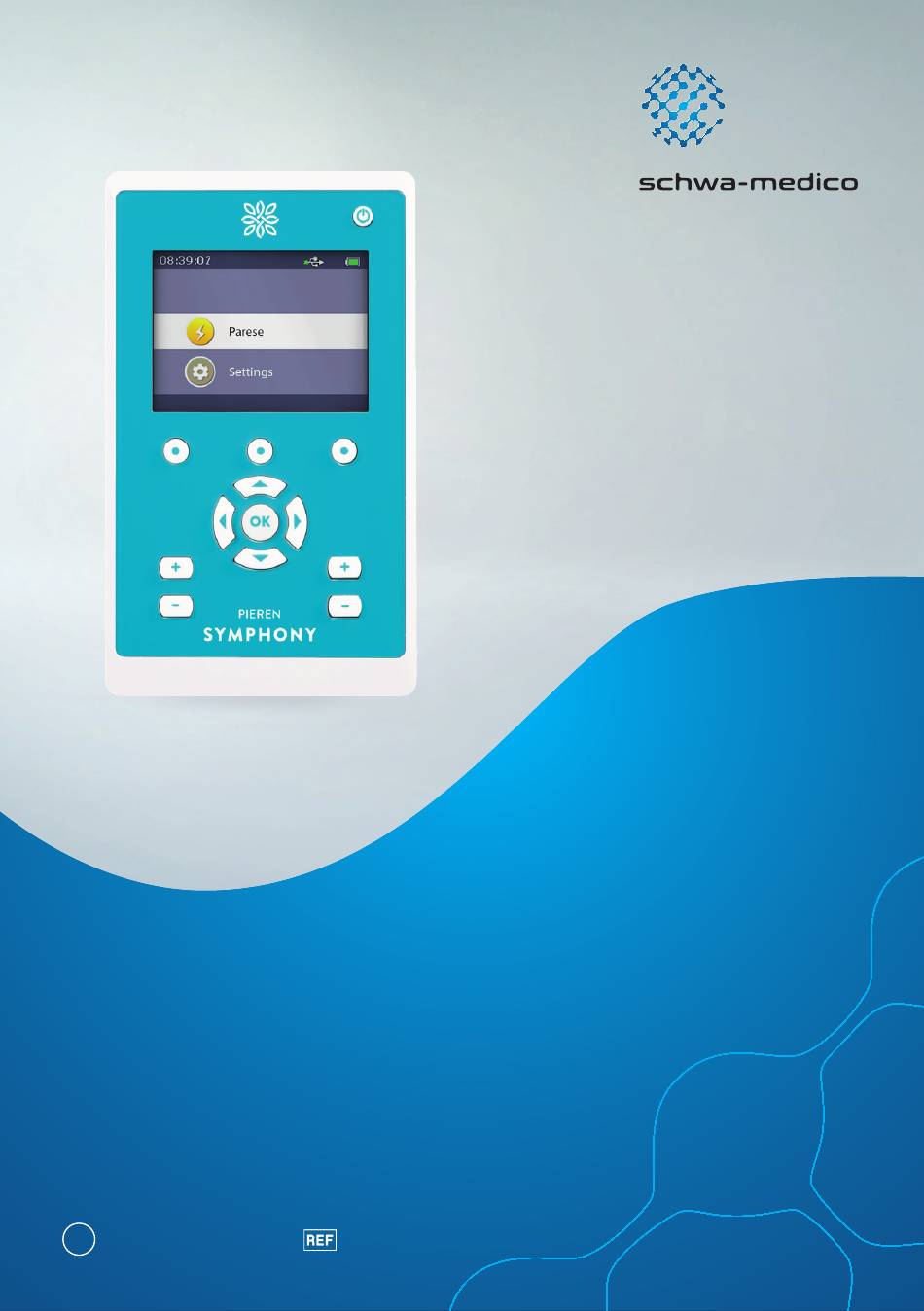

- Page 1 HOLISTIC HEALTH PIERENSYMPHONY P 2-channel electrostimulation device for paresis treatment Instructions for use 10007405 Version 01 Last updated: 2022-12-08...
-
Page 2: Table Of Contents
INSTRUCTIONS FOR USE - PIERENSYMPHONY P Contents General ..........................4 PIERENSYMPHONY P Intended purpose ................4 Safety precautions ........................5 General contraindications ......................7 Additional contraindications during pregnancy ..............7 Side effects ..........................8 Information about the muscle stimulation program(s) ..........8 Instructions for avoiding physical overload reactions due to muscle stimulation ..9 Contraindications due to muscle stimulation ..............9... - Page 3 ENGLISH Quick guide ........................22 Electrode placement ...................... 24 Examples of electrode placement in cases of paralysis ..........25 Technical information ..................... 26 10.1 Technical data ........................26 10.2 Explanation of the pulse shape icons on the display ............26 10.3 Description of the symbols ....................
-
Page 4: General
Before the first use, the patient must be trained by a doctor or therapist. The PIERENSYMPHONY P can be used to treat anyone who is mentally and physically capable of positioning the electrodes and... -
Page 5: Safety Precautions
ENGLISH The product may only be used with original accessories. The use of ot- 1.2 Safety precautions her accessories (especially of electro- des with a smaller surface than 2 cm Please read the instructions for may lead to a deficient operation. The use carefully prior to using the pro- electrodes in the delivery amount can duct! Keep for future reference! - Page 6 INSTRUCTIONS FOR USE - PIERENSYMPHONY P Warning: Do not operate the device the special attention of the operator in the vicinity of explosive and/or flam- as it may lead to painful results. The mable substances or steam! electrodes in the delivery amount...
-
Page 7: General Contraindications
The use of the PIERENSYMPHONY P during decreases significantly. pregnancy should always be agreed upon with the attending doctor and the midwife, taking into account the benefits and risks. -
Page 8: Side Effects
In the case of severe muscle strain, but also shapes of the PIERENSYMPHONY P, and also due to one‘s constitutional predisposition due to the frequently sensitive impairments or in conjunction with certain medications... -
Page 9: Instructions For Avoiding Physical Overload Reactions Due To Muscle Stimulation
ENGLISH Instructions for avoiding phy- » To support kidney function, after treat- sical overload reactions due ment 1-2 glasses, e.g. of water should be to muscle stimulation drunk. 2.1.3 Treatment in the acclimatisation 2.1.1 Before each treatment period (first to seventh treatment) »... -
Page 10: Side Effects Due To Muscle Stimulation
INSTRUCTIONS FOR USE - PIERENSYMPHONY P cholesterol-lowering drugs (e.g. statins), » Muscular overload reactions with and requires medical supervision. - Muscle pain that may last for several days » Muscle disease (myopathies) - Muscle weakness that may last for se- »... -
Page 11: Description Of The Device
A treatment diary is an ideal and meaning- ful companion to the manifestation of the The PIERENSYMPHONY P is a 2-channel treatment defined by the doctor/therapist electrostimulator with various stimulation following a thorough diagnosis and thus al-... -
Page 12: Operating The Pierensymphony P
Turn on the device Press the on/off button A for 2 seconds. The PIERENSYMPHONY P turns on and the Remove the electrode cables from the PIE- main menu is displayed with the individual RENSYMPHONY P... menu items that can be selected (see main menu). -
Page 13: Electrode Connections
Stimulation is not possi- ble during charging. Important! After charging, disconnect the charger from the 230V socket and only then remove the PIERENSYMPHONY P from the charger. Use the button and the button to se- lect the desired menu item. -
Page 14: Starting Stimulation
INSTRUCTIONS FOR USE - PIERENSYMPHONY P The menu item currently selected is indicat- 6. To the programs ed by a light-coloured rectangle. Press the button to access one of the submenus The PIERENSYMPHONY P has six programs “Paresis”, “Treatment memory”, or “Set- that differ mainly in terms of the pulse tings”. -
Page 15: Explanation And Area Of Application Of The Programs
ENGLISH Explanation and area of application of the programs 6.2.1 Program 1 Rectangular pulse current with alternating polarity D Pulse width 50 ms E Pause 500 ms (E = 10 x D) Treatment time 15 min Usage Treatment of minor damage (paralysis) Alternatively Program 4 6.2.2 Program 2 Trapezoidal... - Page 16 INSTRUCTIONS FOR USE - PIERENSYMPHONY P 6.2.4 Program 4 Rectangular pulse group with alternating polarity D Pulse width 50 ms E Pause 500 ms (E = 10 x D) F Pulse group pause 1.5 s (F = 3 x E)
-
Page 17: Menu Description
ENGLISH 7. Menu description Settings In the Settings menu, you can change the The menu description contains the selection device's general settings. To do this, use the and navigation through the menu items. buttons to select the desired menu Also read the quick guide, Chapter 8! item and you will be taken to one of the fol- lowing submenus after confirming by press- ing the confirmation button... - Page 18 INSTRUCTIONS FOR USE - PIERENSYMPHONY P 7.2.2 Set date/time 7.2.4 Treatment memory You will always see the current time and The PIERENSYMPHONY P is equipped with a date shown at the top. treatment memory, which allows the user to retrieve the following parameters as need- »...
-
Page 19: Paresis
ENGLISH Paresis 7.2.5 Version display In this submenu, you can view the software In the main menu, use the but- version of the device. You can also see tons to select the function Paresis whether your device supports Bluetooth. confirm this selection with the button. -
Page 20: User Programs
INSTRUCTIONS FOR USE - PIERENSYMPHONY P User programs Examples Paresis program You can enter parameters yourself to create trapezoidal, triangular or rectangular pulses by freely selecting and setting the ramp, work, and pause times. The maximum pulse width is generally 6 sec-... - Page 21 ENGLISH Program 3 started Program 3 stopped...
-
Page 22: Quick Guide
INSTRUCTIONS FOR USE - PIERENSYMPHONY P 8. Quick guide Select the 15:18:09 "Paresis" menu item shown with a white Paresis background with Treatment memory Select the "Pa- Program group Program Paresis resis" program Program 1 User program Program 2 group shown... - Page 23 ENGLISH Select the desired pro- The following Both channels ~ € gram with parameters are Sequence duration: 20 min select with preset and can be Rising time: 0 ms ~ € selected with Working time: 100 ms Stimulate with the and changed Falling time: 0 ms...
-
Page 24: Electrode Placement
INSTRUCTIONS FOR USE - PIERENSYMPHONY P 9. Electrode placement E Attach the surface electrodes that have been created in this way to the desired areas of the body with the belt straps. Due to denervation, the muscle cell needs Do not apply to unclean, oily, diseased to be stimulated directly. -
Page 25: Examples Of Electrode Placement In Cases Of Paralysis
ENGLISH Examples of electrode place- FOREARM, RADIALIS ment in cases of paralysis The illustrations are a guide for frequent electrode placements. The attachment points shown are only one of several possi- bilities and may need to be customised. The red electrode represents the positive pole (anode), visible by the red end of the cable;... -
Page 26: Technical Information
INSTRUCTIONS FOR USE - PIERENSYMPHONY P energy to the body in the form of pulses 10. Technical via cables and electrodes. The device has information a TFT display and is operated via a keypad with 13 buttons. The PIERENSYMPHONY P is powered by an internal power supply (3.8... -
Page 27: Classification
Take it to an au- 10.7 Combining thorised collection site for recycling. By doing this, you will help to protect The PIERENSYMPHONY P is only to be com- the environment. bined with the articles listed in the scope of delivery and under "Accessories". -
Page 28: Accessories
INSTRUCTIONS FOR USE - PIERENSYMPHONY P 11. Accessories Therapeutic use of the PIERENSYMPHONY use. Otherwise, we cannot be responsible P on the patient is only permitted with the for the safety of the patient and for the war- accessories described in the instructions for ranty of the device. -
Page 29: Disposal And Return
GmbH, Dreieiche 7, 35630 Ehringshausen. Please refer to the following illustration for the symbols used... -
Page 30: Manufacturer's Declaration
INSTRUCTIONS FOR USE - PIERENSYMPHONY P 13. Manufacturer’s declaration Manufacturer's declaration for the medical device PIERENSYMPHONY Guidelines and manufacturer's declaration - Electromagnetic emission The product is intended for operation in an environment as specified below. The customer or the user of the product should ensure that it is operated in such an environment. - Page 31 ENGLISH Guidelines and manufacturer's declaration - Electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should ensure that it is used in such an environment. Interference immunity test IEC 60601- Matching Electromagnetic environment - Guidelines Test level...
