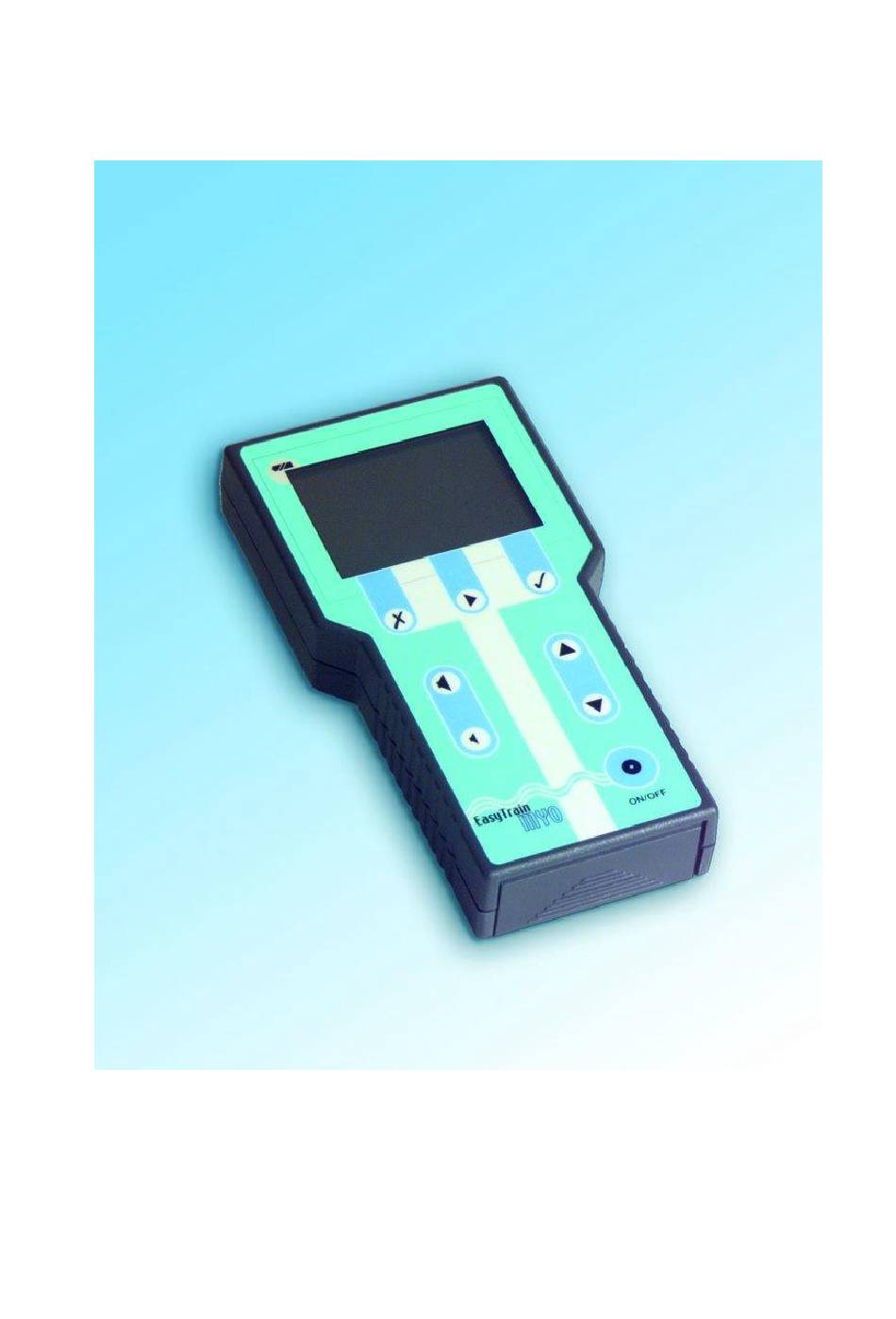

- Page 1 EasyTrain MYO – operation manual EasyTrain MYO Operating instructions schwa-medico operating instructions - EasyTrain MYO Version 3.1...
-
Page 2: Table Of Contents
Balance.........................18 EMG monitor .......................18 Incontinence:......................18 Trigger stimulation therapy ....................19 Store data on memory card.....................19 Connect Easytrain Myo with the computer ..............20 Start the Biofeedback software................23 Explanation parameter window ................24 To print or display the session................24 Technical information & instructions................26 Important safety instructions .................26 Intended use......................26... - Page 3 10.6 Maintenance and cleaning ..................28 10.7 Classification......................28 10.8 Combination with accessories................28 Scope of supply ......................28 11.1 Standard accessories .....................28 11.2 Optional accessories....................28 Explanation of symbols ....................29 Technical data......................29 Manufacturer ......................29 Distributor .........................30 schwa-medico operating instructions - EasyTrain MYO Version 3.1...
- Page 4 EMG Trigger1 Headphone EMG Trigger2 EMG 2 EMG 1 Battery control Display START STOP Confirm choice Go back SELECT VOLUME Selecting programs, Setting parameters, values ON/OFF Battery comparte- ment MMC-Card Download convector schwa-medico operating instructions - EasyTrain MYO Version 3.1...
-
Page 5: Display Symbols
5/6 (SELECT) Selected EMG sensitivity (representation area) xx.xµV: Current EMG value EasyTrain MYO - Key functions ¤ ON/OFF For switching the device on/off. To prevent the device from being switched off unintentionally, the key must be pressed for more than 1 second. When switching off in the therapy mode, the pre-selected therapy will be re-activated when switching on the device for the next time. -
Page 6: Double Key Functions
Starting the selected therapy with registration of the starting value. X VOLUME Volume setting for loudspeakers and headphone r+4 STOP + START Display illumination ON/OFF 4+a START + OK Termination of the therapy mode and change to the setup mode schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 7: Introduction
What follows is the request for deleting the preceding session data, which can be confirmed by pressing the key a (OK) or ignored by pressing the key r (STOP). schwa-medico operating instructions - EasyTrain MYO Version 3.1... - Page 8 When the selected therapy time has elapsed, the end is signalized, statistical data are saved, the “end” display comes up and the device switches off. If you want to stop the therapy before the adjusted time you press the stop r key. schwa-medico operating instructions - EasyTrain MYO Version 3.1...
-
Page 9: Biofeedback Programs
It is possible to select from 4 different languages: English, German, French and Dutch Via Up&Down key you select the language. With the OK key you confirm the selected language LANGUAGE ---------------- > DEUTCH < ENGLISH NEDERLANDS FRANÇAIS schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 10: In Use
Time [Ø]: > GO BACK < Restore 3.1.3 Screen Screen graph representation (beams, history, curve) with selection of the running time 3.1.4 Channel Determination of the active EMG channels (EMG 1/EMG 2) schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 11: Filter
Adjustable: 2 – 8 seconds 3.1.7 Work The time for muscle relaxation or contraction; 1-99 Sec. .WORK TIME ( only incontinence program) ---------------- >> 6 sec schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 12: Pause
3.1.9 Target .TARGET ---------------- Target Value Automatic NONE 3.1.9.1 Target value .TARGET VALUE Selection of a fixed value, e. g. for EMG monitors function. ---------------- Valua: 1 – 999 µVolt >> 10.0 µV schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 13: Automatically
3.1.10.2 Alarm >/< Alarm tone when exceeding the target >/< (larger/smaller threshold) with selectable response delay (0-60 seconds). The alarm will start if the threshold exceeding lasts longer than the response delay. schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 14: Session Duration
Record: Trigger FB: Bleutooth: 3.1.15 Trigger feedback .EMG-MONITOR With the Easytrain Myo it is possible to do Trigger stimula- ---------------- tion. Trigger stimulation means if you have reached the threshold value the EMP 4 expert will give a electrical Default stimulation. -
Page 15: Bluetooth
– operation manual 3.1.16 Bluetooth The Easytrain Myo has an integrated Bluetooth module. .EMG-MONITOR This means that it is possible to connect the Easytrain Myo ---------------- wireless to a computer with Bluetooth connection. Default The software program runs via windows Microsoft excel. -
Page 16: Therapy Programs
The target value as well as the response delay can be pre-set individually. schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 17: Incontinence
The optimal threshold can be easily changed in the setup mode so that the changed threshold automatically is replaced in the therapy mode. Note: Via a special electrode cable it is possible to connect a vaginal or anal probe. schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 18: Standard Values
>5 Sec ¥ Session duration 5.4 Incontinence: Display Time axis 2 Min Work 6 Sec Pause 12 Sec Channel Filter WIDH Smoothing 2 Sec Target 10 μV Acoustics TONE Session duration. 10 Min schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 19: Trigger Stimulation Therapy
The Easytrain Myo can be combined with the EMP 4 expert. This means combination therapy with EMG and NMES. The Easytrain Myo detects very low peaks of neurons produced by for example stroke patients and provides a muscle contraction by electrical stimulation each time the threshold is exceeded. -
Page 20: Connect Easytrain Myo With The Computer
EasyTrain MYO – operation manual 8 Connect Easytrain Myo with the computer To connect the Easytrain Myo you need a Bluetooth adapter to transfer the data to the com- puter. Note: Use a Bluetooth adapter that supporting Windows XP with a Bluetooth specification compli- ance minimum version 1.1. - Page 21 Easytrain Myo and Bluetooth function you go to My documents. Inhere you find the file biometer 3.0.xls. .EMG-MONITOR Turn on the Easytrain Myo and set the Parameter Blue- ---------------- tooth on the On mode. Default Click 2 times left mouse button on the Bluetooth symbol in...
- Page 22 , if succesful you see double click left mouse to connect spp slave Note: After the installation of the biofeedback program you have switch on the Easytrain Myo and Bluetooth function you go to My documents. Inhere you find the file biometer 3.0.xls. schwa-medico operating instructions - EasyTrain MYO Version 3.1...
-
Page 23: Start The Biofeedback Software
1. Select the time scale before you start the treatment 2. Now you can start the visualisation of the graph on your monitor. 3. You always have to start your session by pressing the play key on the Easytrain Myo schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 24: Explanation Parameter Window
EasyTrain MYO – operation manual 8.2 Explanation parameter window · COM Port: Communication port to receive data from Easytrain Myo · Time scale: Visualisation of the line graph 15 – 1 hour Horizontal line · Range: Visualisation of the line graph 10µV - 2000µV vertical line. You can only change the range during treatment. - Page 25 EasyTrain MYO – operation manual Channel 1 Channel 1 schwa-medico operating instructions - EasyTrain MYO Version 3.1...
-
Page 26: Technical Information & Instructions
Close the battery compartment. 10.1 Changing the rechargeable batteries When the battery control lamp flashes, the battery needs to be changed. However, the cur- rent session can be terminated. schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 27: For Changing The Rechargeable Battery, Switch Off The Device
During the warranty period of one year from the date of purchase, all repairs which may be- come necessary and are not due to incorrect use of the appliance will be carried out free of charge by the manufacturer. Cables and electrodes are excluded from warranty. schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 28: Maintenance And Cleaning
503661 and anal electrode Typ11.2 1 Amplifier B 503705 1 Self – Adhering Electrodes 281005 11.3 Optional accessories Vaginal electrodes V21B 103064 Anal electrodes TL1R 103044 Trigger cable EMP 4 expert 104038 schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 29: Explanation Of Symbols
50 mA Power supply 9.6 V NiMH changeable rechargeable battery system Dimensions 175 x 90 x 30 mm Weight approx. 400 g 14 Manufacturer Pierenkemper GmbH Hörnsheimer Eck 19 35578 Wetzlar Germany schwa-medico operating instructions - EasyTrain MYO Version 3.1... -
Page 30: Distributor
EasyTrain MYO – operation manual 15 Distributor schwa-medico GmbH Gehrnstrasse 4 35630 Ehringshausen Germany E mail: export@schwa-medico.de Website: www.schwa-medico.com schwa-medico operating instructions - EasyTrain MYO Version 3.1...
