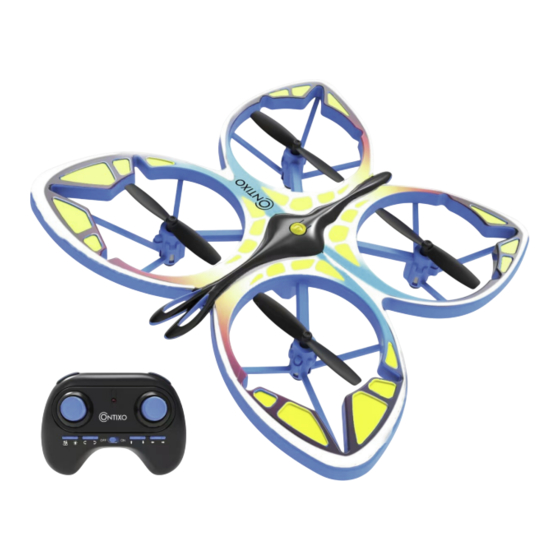

TD2 DRONE INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD2 and is the answer not in the manual?

Questions and answers

Related Manuals for Contixo TD2

Summary of Contents for Contixo TD2

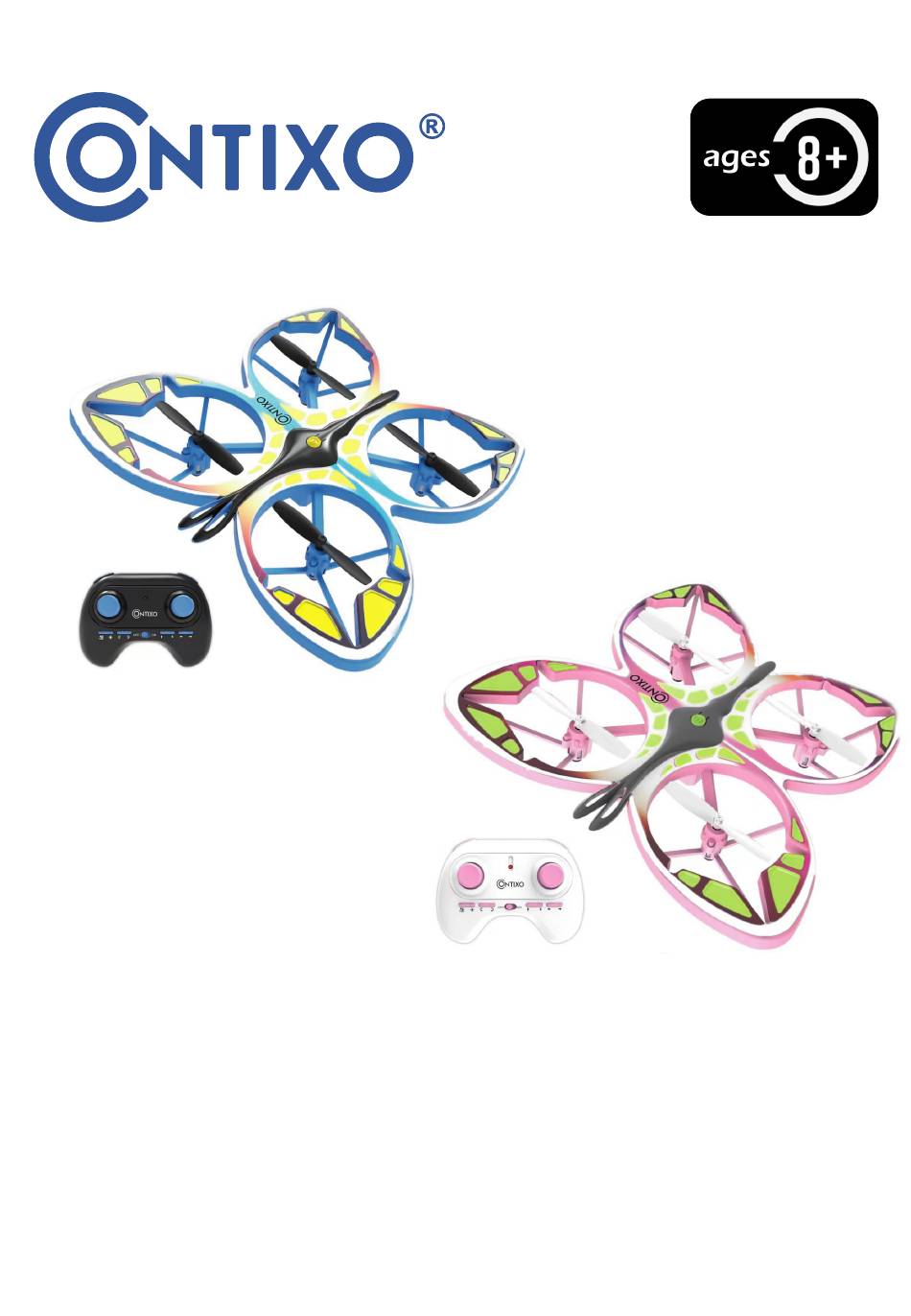

  • Page 1 TD2 DRONE INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    ------------------------------------------------------------ IMPORTANT -------------------------------------------------------- Safety Precau�ons -------------------------------------------------------- WARNING EXEMPTION ------------------------------------- -------------------------------------------------- FLIGHT SAFETY ------------------------------------- REMOTE CONTROL FUNCTIONS -------------------------------------------------- REMOTE CONTROL BATTERY INSTALLION -------------------------------------------------- CHARGE THE BATTERY FLIGHT -------------------------------------------------- -------------------------------------------------- SPECIFICATION -------------------------------------------------- PACKING DETAILS -------------------------------------------------- TROUBLE SHOOTING...

  • Page 3: Important

    The TD2 drone should only be operated by individuals age 8 and up, and is best supervised by experienced UAV pilots. This is a precisely-made device, from electronics, mechanical components, and high-frequency transmission technology, according to its aerodynamic design.
  • Page 4 1. Keep it far away from any structures or crowds: This remote-control aircra� may vary slightly in speed or sensi�vity while flying and can cause poten�al danger. Therefore, please keep it far away from crowds, buildings, trees, structures, high-voltage wires, etc... Please also avoid flying in adverse weather condi�ons such as rain, snow, electrical storms, and high winds to ensure safety of the user, any spectators, and surrounding property.

  • Page 5: Warning

    • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on.
  • Page 6 5. Children ages 8-14 should use this product under the guidance of an adult. This product is NOT to be used by children under 8 years old. 6. Please correctly assemble and use this product as shown in the instruc�on manual or packaging instruc�ons.
  • Page 7 18. The aircra� should be kept far away from any other electrical equipment that may cause interference. 19. Please keep a safe distance from the high-speed rota�ng rotor to avoid injury of being wounded or being cut. 20. Components may get hot during use. Please DO NOT touch motors to avoid being burned or injured.

  • Page 8: Exemption

    EXEMPTION When using this product, Con�xo Inc. shall not be responsible for direct or indirect damages caused by the following: 1. Any damages caused by the user experiencing: fa�gue, nausea, poor physical / mental health condi�ons, or under the influence of alcohol, or drugs. 2.

  • Page 9: Flight Safety

    10. Damage caused by infringement of any data, audio or video data obtained from the user using the quadrotor. 11. Damage to the ba�ery, such as damage caused by improper matching of the protec�on circuit, ba�ery pack and charger. 12. Any indirect losses or legal liabili�es caused by problems of equipment or accessories (including memory cards), for example, images or videos that cannot be saved.

  • Page 10: Remote Control Functions

    REMOTE CONTROL FUNCTIONS Speed switch (Short press) 3D Roll (Short press) LED indicator Headless mode (Hold 3 seconds) One key return (Hold 3 seconds) Thro�le s�ck Direc�on s�ck (ascend / descend/ (forward / backward / turn le� / turn right) le�...

  • Page 11: Flight

    Note: Please fully charge the ba�ery before flying. Low-ba�ery warning: When the ba�ery power is low, the light of drone will flash slowly. It needs to fly back immediately. A�en�on: 1. Use only the original factory cable. Do not use damaged or cable of other brands.
  • Page 12 Note: If the drones flight is unstable a�er takeoff, it can also be corrected by calibra�ng the gyroscope. The calibra�on should be done at the horizontal level. Warning: 1.The toy shall be used with cau�on since skill is required in order to control the flight and avoid collisions with the user, objects or third par�es.
  • Page 13 4. Opera�ng Method - 11 -...
  • Page 14 5. Trimming Func�on When the drone spins in the air or �lts in different direc�ons, you can use the trimming func�on to correct the ac�on. If the drone moves backward while hovering, press the forward trimming bu�on, un�l the drone stops moving backward. If the drone moves forward while hovering, press the backward trimming bu�on, un�l the drone stops moving forward.
  • Page 15 6. Switch Speed Press the speed switch bu�on to switch the speed, different speed gears have different beeps : “Di~” is the low speed mode, “Di~Di~” is the medium speed mode, and “Di~Di~Di” is the high speed mode. 7. Headless Mode The drone defaults to Normal Mode when the drone and remote control are matched successfully.
  • Page 16 9. 3D Roll Quick-press 3D roll bu�on and push the direc�on joys�ck forward, backward, le� or right. The drone will roll in the air in the corresponding direc�on. In order to perform the 3D roll func�on be�er, please ensure that the drone is fully charged and maintains a height of about 1.5 meters from the ground.

  • Page 17: Specification

    Clip the small cap of the propeller, and then aim at the sha� of the motor and press it. It may require a li�le force. Please be careful not to break it. SPECIFICATION Model: TD2 Flight Time: Up to 8 Minutes Control Frequency: 2.4GHz Charging Time: 90 Minutes Remote Control Ba�ery: 3*AAA...

  • Page 18: Packing Details

    PACKING DETAILS Remote Control x 1 Drone x 1 Charging cable x 1 BATTERY Propellers x 4 Batteries x 2 User Manual x 1 TROUBLE SHOOTING Problem Cause Solu�on 1. Remote is not synced to 1. Refer to page 1-2 (Flight). Drone does not respond the drone.
  • Page 19 CONTACT INFORMATION E-Mail: support@con�xo.com Website: www.con�xo.com ©2023 Con�xo Inc. All rights reserved. Con�xo®, the Con�xo logo and a ssociated characters, trademarks and design elements are owned and licensed by Con�xo Company. - 17 -...
