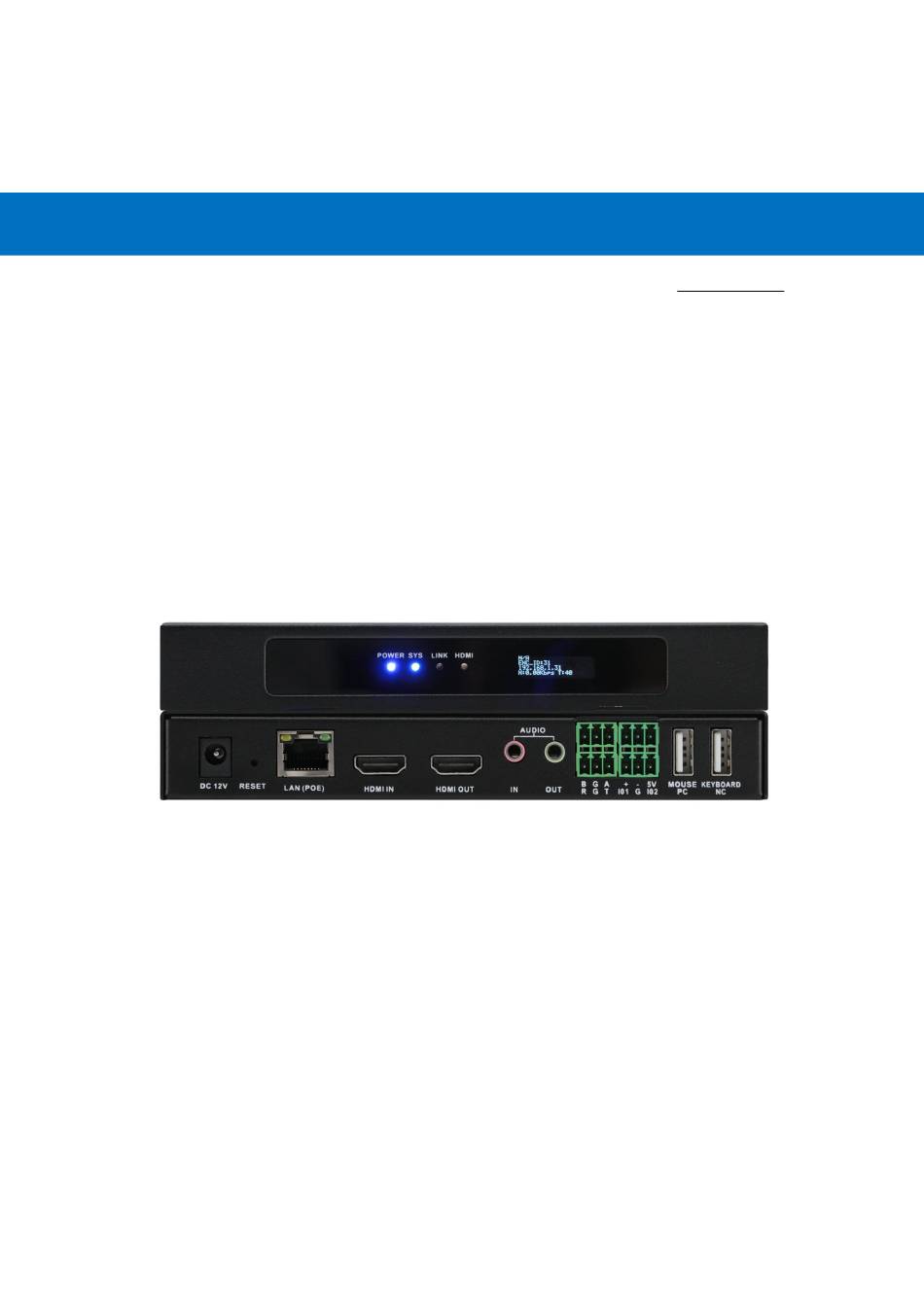

- Page 1 User Manual HDTVIPM925 WolfPack 4K 30 Hz HDMI Over IP Matrix Switcher with Apps Version: V23.08.24...
-
Page 2: Table Of Contents
Contents ....................4 1. Product Introduction ......................4 2. Product Features ..................... 5 3. Technical Datasheet ......................5 4. Packing Datials ......................5 5. Panel diagram ..................7 6. Product Connection Diagram .................... 7 7. Xview PC control software .........................14 8. After Sales 8.1 Warranty ........................ -
Page 3: Product Introduction

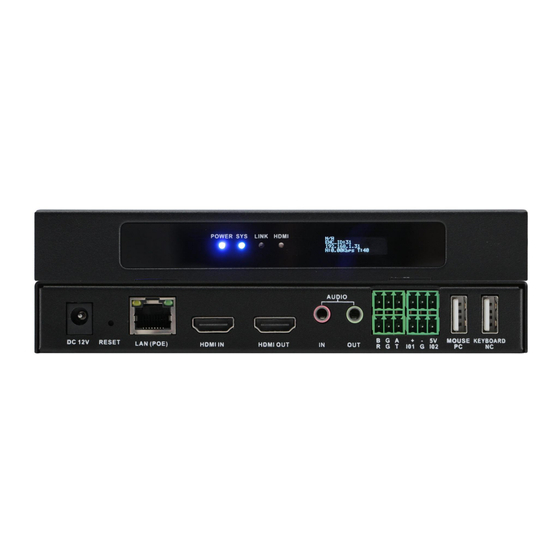

1. Product Introduction This a WolfPack 4K 30 Hz AV via IP POE Transceiver with Video Wall is same unit it can be switched/defined by the PC software to work either as encoder or as decoder which can provide more application flexibilities and save the costs. - Page 4 Latency 80~120ms Party Control by TCP/ UDP Control Windows PC software, Android/iOS APP Product dimension 175*110.5*25 (L*W*H)(mm) Temperature -20℃~+60℃ Humidity 10-90% Power DC 12V 1A 4. Packing Details Transmitter/Receiver ....................1 unit Power adapter ......................1 pcs 5. Panels Front Panel PWR: power indicator SYS: System indicator A/BC/D(Indicators) LINK: LAN cable connection indicator...
- Page 5 *When it works as Receiver, HDMI IN is not function N(HDMI OUT) When it works as Transmitter, for HDMI Loop out K(AUDIO IN) For the 3.5mm audio embedded in J(AUDIO OUT) For the 3.5mm audio de-embedded out 1*RS485(BGA)phoenix connector 1*RS232(RGT) phoenix connector I/H(Control ports) 1*Replay(+ - 5v) phoenix connector 1* I/O(IO1, IO2)phoenix connector...
-
Page 6: Xview Pc Control Software
Working as Matrix Switcher, Many to Many Working as Video Wall Processor and Multiviewer: 7. Xview PC control software With the Xview control software, users can configure the devices ID, IP, Upgrade, video wall, matrix, OSD etc function. 8.1 Xview software login The default user name is admin, password is 123456, local IP is the control PC IP address, then click to login:... - Page 7 After login the software, need to click the Setting icon on the right top corner for the system setting first: Then it will be showing the setting page with different setting tabs: Device: for finding all the devices, adding, upgrade, reboot, etc Source: after setting the device IP/ID/working type as encoders, then add them as sources Output: after setting the device IP/ID/working type as decoders, then add them as outputs...
- Page 8 After selected a device, then users can do the setting for the devices accordingly, change the name/ID/IP/work type(as encoder or decoder)/resolution/audio * When set the device Type and Network IP address can’t not at the same time, as when change device type and IP address both will auto restart the device. Upgrade the devices, can select all devices to upgrade at once: *Note the M1001U and G1001U models can’t use the same firmware and upgrade, need to upgrade separately:...
- Page 9 Device Reset: Clear the ID, MAC, device type and IP address Once the device type set as Encoder, then it can support the OSD function: EDID setting and restoreAdd by EDID file with bin format at HEX code or restore the EDID.
- Page 10 Peripheral setting is for the RS232/RS485/Relay/I/O those control ports Source: after setting the device IP/ID/working type as encoders, then add them as sources: Select from the list, then choose the source group, and click add button to add. ①Search to find all the same LAN devices ②Device list with details...
- Page 11 ③Add device manually when not finding the devices ④Create group is for having different source groups ⑤Sources management: select the sources to delete, adjust order etc ⑥Property is for check out the sources mainstream/substream, url address Output: after setting the device IP/ID/working type as decoders, then add them as outputs Search to find all decoder, then click add to the right side ①Search to find all the decoders ②Add the decoder manually...
- Page 12 one by one to the video wall box on the right side: To create Matrix: site---matrix--name---ID----Create Then select the Matrix to bind the decoders User: for adding different users with different level rights Add user: User----Add user----name/password---OK Give the user level right: double click the new added user, choose the source and site for this user.
- Page 13 IPC: for adding the IP cameras Click search to find all the same LAN IP cameras. Use add RTSP mainstream to add Data: for uploading the data/configuration to different control devices ①Open/closer Server is for the other control devices to send data to this control device, need to keep it as Open status for data downloading.
- Page 14 also need the other device is with Open server status. Status: for the devices’ working status checking/dispaly System: for the preview mode settings, etc Logs: for the system operation logs records...
- Page 15 After the system configuration settings, then can exit/close this setting page: Then can click the site to start control the Video wall or matrix:...
-
Page 18: After Sales
8. After Sales 8.1 Warranty Information The Company warrants that the process and materials of the product are not defective under normal use and service for 2 (2) year following the date of purchase from the Company or its authorized distributors. If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or...
