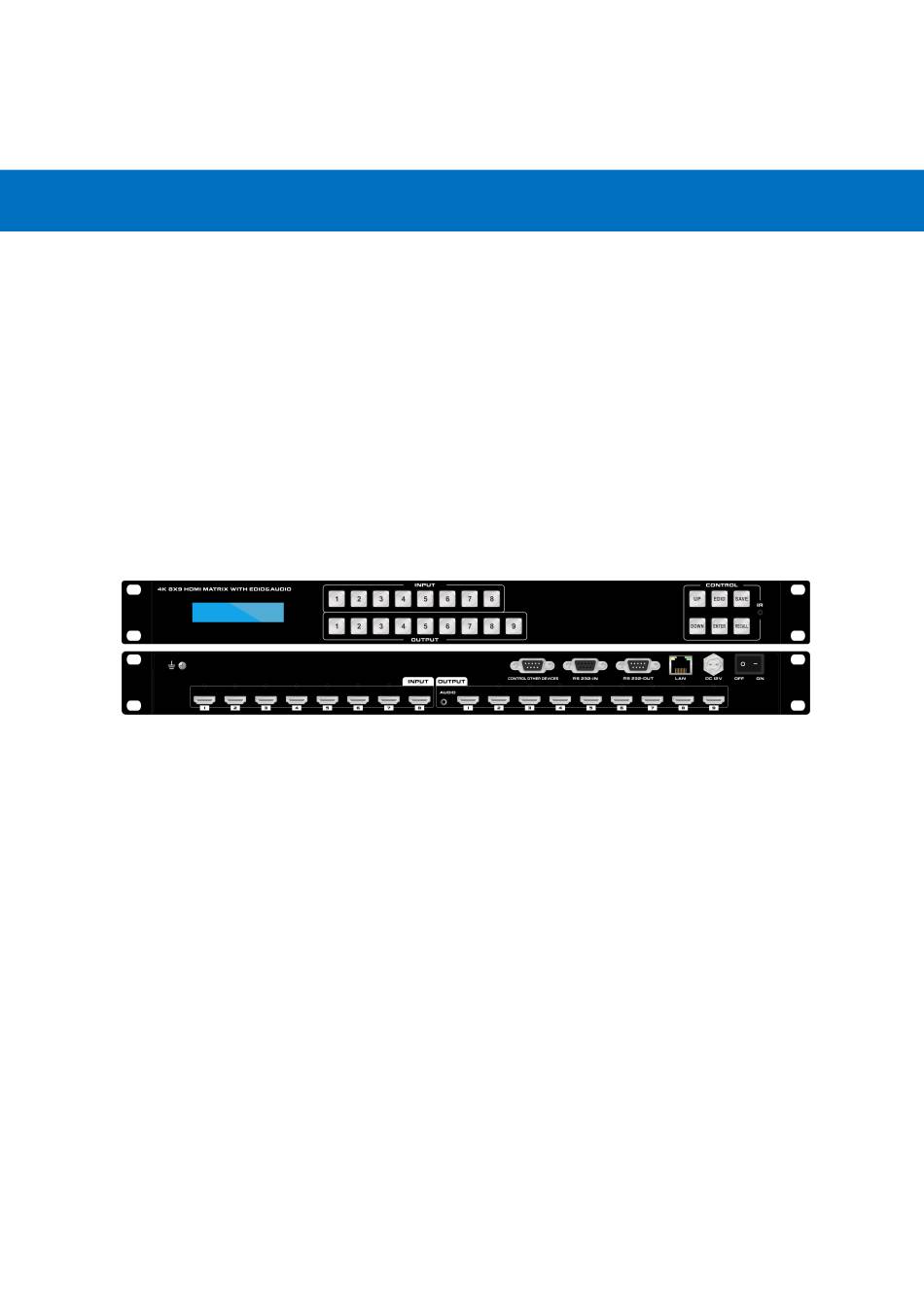

- Page 1 USER MANUAL 4K 30 Hz 8x9 HDMI Matrix Switcher with Apps & WEB GUI Version: V22.06...
- Page 2 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection.
-
Page 3: Warnings Of Fcc
Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Table Of Contents
Contents Warnings of FCC..........................1 1. Product Introduction......................3 2. Features............................3 3. Specification..........................3 4. Connection Diagram....................... 4 5. Packing............................4 6. Panel description........................4 7. Matrix Switcher control......................6 Remote Control........................... 6 APP control............................6 WEB GUI browser Control......................8 The 3rd Party Control command..................8 8. -
Page 5: Product Introduction
1. Product Introduction This is a new WolfPack 4K 30 Hz 8x9 HDMI Matrix Switcher with Apps & WEB GUI with 8 HDMI inputs and 9 HDMI outputs, the resolution can up to 4K30Hz and all ports are HDCP compliant. With the friendly user control methods by... -
Page 6: Connection Diagram
DC:12V 2A Power 440*150*44(mm) Dimension(mm) Weight 4. Connection Diagram 5. Packing Name Unit HDMI Matrix Switcher Pcs. DC 12V2A power adapter Remote Control Rack ear 6. Panel description Front panel... - Page 7 LCD screen: for the switching, EDID, IP etc information display. INPUT: 8 HDMI input buttons OUTPUT: 9 HDMI output buttons CONTROL: UP: for upward controlling, or when press input and press UP to all outputs EDID: Press it to enter EDID set mode. SAVE: Press to save the switching status.
-
Page 8: Matrix Switcher Control
LAN: for the IP/TCP control, the default IP address is 192.168.1.80 DC12V: power supply port ON/OFF: power off/on switch 7. Matrix Switcher control This Matrix switcher can support IR remote, APP, RS232/TCP/IP software, WEB GUI browser or the front push-buttons control. Remote Control Users also can control this matrix switcher with the remote control. - Page 9 Click Enter and login with the user name and password, the default User name is admin, password is admin. Click Submit to login after typing the correct user name and password, and it will turn to the home interface for the sources Switch, Scene Recall/Save: Users can change input, output and Scenes names here, up to 8 characters.
-
Page 10: Web Gui Browser Control
Users also can do the settings for the “Setup” tap Users can change the default user name and password from the “Account” Tap: WEB GUI browser Control Users also can use the WEB browser to control the matrix switcher, users can have the matrix switcher connected with the PC with the LAN cable directly or have the matrix switcher connected the same network switch. - Page 11 After opening the browser, users can type the matrix switcher IP address and press enter: The default user name is admin and the password is admin. After login, it will turn to “Home” interface, users can do the sources switching, scenes recall, save and the other devices control here.
-
Page 12: The 3Rd Party Control Command
Setup interface for users to do the IP address, COM baud rate and buzzer settings: Account interface for users to change the login user name and password: The 3 Party Control command IP address: 192.168.1.80 (default IP) Protocol: TCP(5000), UDP(4000) RS232 Baud rate: 9600, N, 8, 1 Use RS232 direct cable... -
Page 13: Common Problem Shooting
Commands Functional description Example Switch input Y to all Switch 1 to all outputs: 1all. Yall. outputs Switch input 2 to output YxY . Switch input Y to output Y 9:2x9. Switch input Y to output Switch input 3 to output 2, 3, YxY .YxY.YxY. - Page 14 with the product repaired by the customer's return, whether or not during the warranty period. 9.2 Warranty limitations and exceptions Except above limited warranty, if the product is damaged by over usage, incorrectly use, ignore, accident, unusual physical pressure or voltage, unauthorized modification, alteration or services rendered by someone other than the Company or its authorized agent, the company will not have to bear additional obligations.
