HDMI Matrix Switcher Series

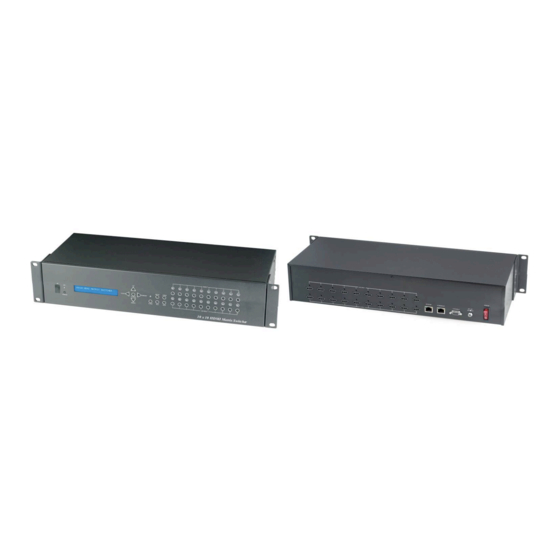

ITEM NO.: HDTVHS10M 10 x 10 HDMI Matrix Switcher
HDTVHS10M 10x10 HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The
10x10 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides
3D support, UltraHD 4K2K, and with 2U Rack mountable for professional installations. In addition, the
allows for effortless control of up to 10 devices through Ethernet control, Android/IOS App
HS10M
Control, IR remote control, RS-232 and the front panel.

Features:
l   Connect  up  to  10  HDMI  source  to  10  x  HDMI  display  monitors.
l   HDMI  1.4  with  3D,  HDCP  &  DVI  Compliant.
l   High  definition  video  up  to  4K2K@24/25/30Hz@8bits,  1080p@60Hz@12bits.
Audio supports up to LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA
l
l   Easy  to  use  front  panel  control  of  switching  or  using  the  included  remote  control.
l   Built  in  Ethernet  Control  and
Android/iOS APP Control.

l   Built  in  RS232  console  port  to  select  input/output.
l   Input/Output  status  could  be  displayed  at  front  panel  LCM  &  LED.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDTVHS10M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WolfPack HDTVHS10M

Summary of Contents for WolfPack HDTVHS10M

  • Page 1 ITEM NO.: HDTVHS10M 10 x 10 HDMI Matrix Switcher HDTVHS10M 10x10 HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The 10x10 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support, UltraHD 4K2K, and with 2U Rack mountable for professional installations.

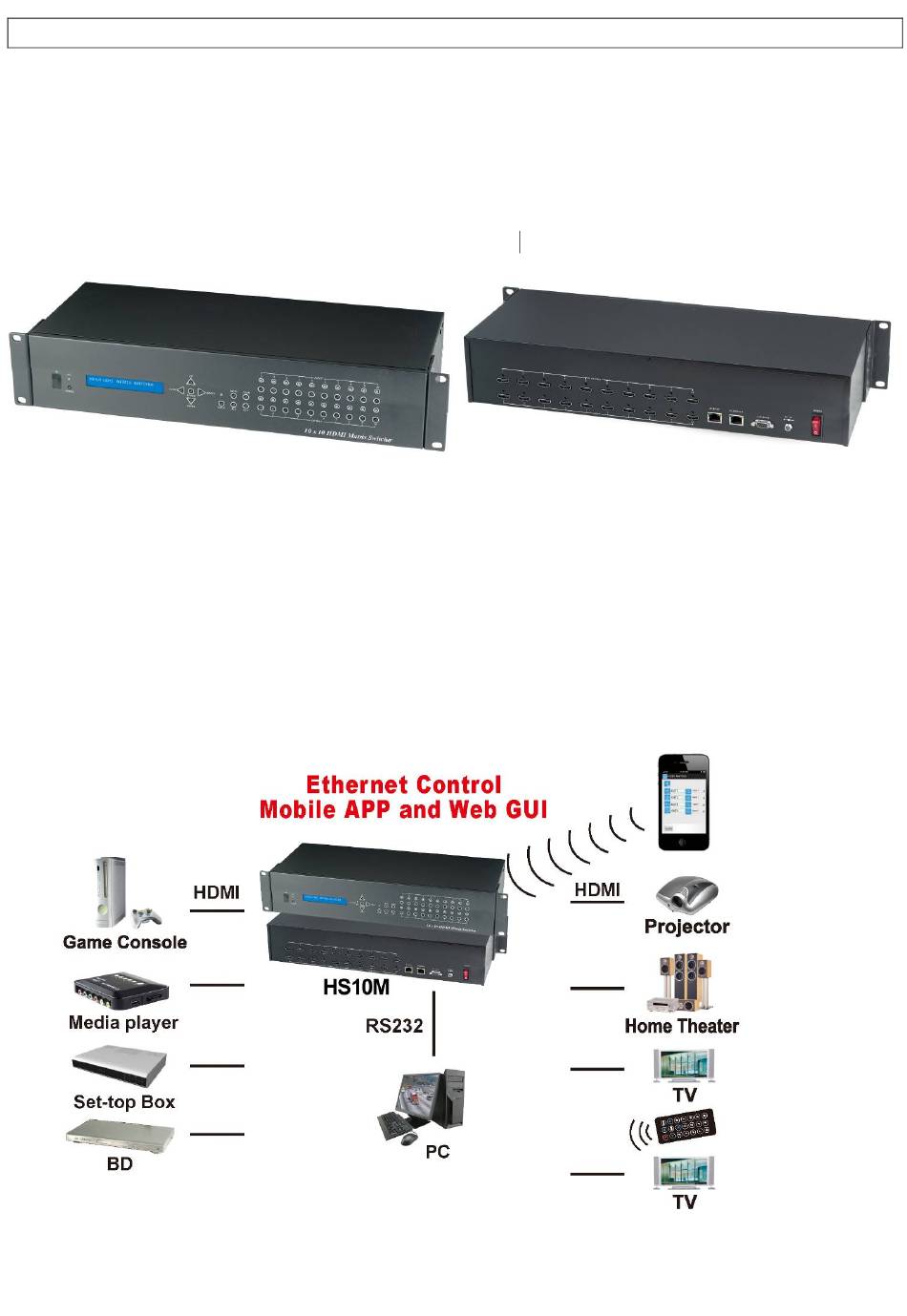

  • Page 2 1.0 HS10M Panel View: 2.0 HS10M Connection View: ETHERNET   IR01 RJ45 IR Receiver MATRIX …………….. …………….. CONSOLE HDMI 1 HDMI 10 HDMI 1 HDMI 10 RS-232 INPUT OUTPUT …………… …………… SOURCE SOURCE...

  • Page 3: Keypad And Leds

    3.0 Keypad and LEDs 3.1 Back Panel Switch and LED Indication: POWER Light on Power on Light off Power off RJ45 Yellow Ethernet linked Green Ethernet date transmission 3.2 Front Panel LED Indication: BLUE Power on Standby Power Off INPUT 1~10 BLUE Signal indication...
  • Page 4 3.3 Panel button Function: OUTPUT 1~10 ＆ INPUT 1~10 Press OUTPUT 1~10 to select output port then the input at IN line of LCM will blink, press INPUT 1~10 to select input port to switch the channel ALL : Press ALL button, the IN line of LCM will blink, press INPUT 1~10 to select input port to all output port.

  • Page 5: Main Menu Option

    3.3   LCM Panel Function: Power on Main Screen When the power is on and the main screen appears 10X10 HDMI MATRIX Channel Setting on Main Screen The Matrix will jump to channel setting screen after 10 seconds, press the MENU key to enter the main menu 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10...
  • Page 6 4.0 LCM Main MENU Function Operations: 4.1 SWITCH ： (Default: 1 2 3 4 5 6 7 8 9 10) This function is used to switch the input/output port. Enter the SWITCH menu. Press the ENTER key, then the LCM second line INPUT will flash. Press LEFT or RIGHT button to select the output to be modified.
  • Page 7 4.3 Ethernet * IP Address Subnet Mask Gateway DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.10) IP Address 192.168. 0.10 This  function  can  be  setup  MATRIX  host  intranet  ”IP   A ddress”,  press  the  ENTER,  the  left-­most  number  of   second  row  will  flash,  then  press  the  UP  or  DOWN  button  to  change  the  numbers,  ,  press  LEFT  or  RIGHT  to  ...
  • Page 8 DHCP Client: (Default Disable) DHCP Client Disable When  DHCP  Clients  setup  at  “Enable”,  the  MATRIX  host  will  automatically  get  IP   A ddress,  Subnet  Mask,   Gateway,  if  setup  at  “Disable”,  the  MATRIX  Host  IP   A ddress  need  go  through  “  ETHERNET”  menu  to  set  IP   Address,  Subnet  Mask,  Gateway,  to  press  the  ENTER,  the  second  row  will  flash,  then  press  the  UP  or  DOWN  ...

  • Page 9: Copy Mode

    4.4 EDID: (Default: 1080P LPCM-2CH) Because the player output display resolution will be based on TV EDID, this Matrix provides two default EDID modes:” BUILD-IN MODE” and “COPY MODE”. For 4K2K resolution you have to copy the EDID from your 4K2K monitor. BUILD-IN MODE COPY MODE 4.4.1 BUILD-IN MODE ：...
  • Page 10 This function must be set to match the Matrix remote control IR01 with the matrix itself. A conflict with other devices remote control is avoided. After entering MATRIX IR ID menu, press ENTER, the LCM LINE 1 number will flash. Then Press UP or DOWN button to select the number, and then press ENTER to confirm.
  • Page 11 5.0 Remote Control Function (IR01): 5.1 To command the matrix locally, setup the remote control IR01 ID with the same code of the Matrix (see 4.2). The default code is 4. (Power+4) 5.2 Warning: These settings have to be done the first time you use the IR01 or when you change the batteries.
  • Page 12 Quick key6 Quick key7 Quick key8 Quick key9 Quick key10 (same as Matrix) EDID (same as Matrix)   For  example:  to  connect  output  port  1  to  input  port  4,  press  the  quick  key  1  (OUTPUT  1)  and  then   press  the  quick  key  4  (INPUT  4).    ...
  • Page 13 6.0 REMOTE Control Function ： HS10M support RS232 and TCP/IP control by same command as below: For  RS232  CONSOLE:   Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5)   Communication  format  is  9600,  8,  N,  1  (9600  bps,  8  data  bits,  no  parity  check,  1  stop  bit)  ...
  • Page 14 MAC_FILTER△[y]       Mac  filter  on/off     STATUS             Show  connection  status     VERSION           Show  firmware  version     HELP             Help  ...

  • Page 15: Web Control Function

    7. Web Control Function: Initial IP Configuration 1.   Setup  MATRIX  IP   A ddress  same  as  your  PC  with  same  domains.(Default  192.168.0.10)   MATRIX  IP   A ddress  method,  please  refer.  to  “ETHERNET”  Chapter       2.
  • Page 16 Advanced:       l   IP  address     :     Change  IP  address   l   Subnet  mask     :     Change  Subnet  mask   l   Gateway  IP     :     Change  Gateway  IP   l...
  • Page 17 Aliases:     l   Aliases  page  can  change  input/output  name,  enter  Apply  to  finish  the  setting  after  change       The  new  name  will  update  and  correspond  to  SWITCH  SETTING  page  Output  /  Input.   l   Press  Back  jump  back  to  advanced  page.    ...
  • Page 18 MEMORY:       l   Save : Save 10 set of channel settings l   Load : Reload 1 of the channel settings l   Back : Back to Advanced page    ...
  • Page 19 8. Android  APP  Function:   Google  Play  Download  Link   https://play.google.com/store/apps/details?id=sct.com.matrixcontroller     Google  Play  Download  QR  code       System  Setting   Connect  mobile  phone  to  Wi-­Fi  and  set  the  IP/  subnet  mask  same  with  matrix  network  segment   Default  IP  address  of  10  by  10  matrix  is  192.168.0.10  ...
  • Page 20 Main  Page:   When first time enter the APP will see the main page Bottom  left「+」to add matrix Bottom right「Info」to show information Scan Device Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list Touch the IP in list to enter「Add Device」page...
  • Page 21 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...

  • Page 22: Modify Device

    Modify Device Press the matrix name to show pop-up dialog Touch「Modification」to enter modification page. Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices...
  • Page 23 Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 24 Return to Modification page you will see the output have been changed Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 25 Output Channel Switching Left  :  icon  for  matrix   Center  upper  big  font  for  matrix  name,   Center  middle  small  font  for  matrix  IP   Center  lower  small  font  for  matrix  type  (4  by  4  or  10  by  10)   Notice:  if  shows 「...
  • Page 26 Touch input device to switch or ON/OFF icon to power on/off It will return to Controller page after switching and refresh the status of channel...
  • Page 27 Save Scene In Controller page touch bottom left「Save Scene」to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically. Notice: if it shows”Please update device firmware” means your matrix do not support this function, please upgrade your firmware to enable this function...
  • Page 28 Load Scene In Controller page touch bottom right「Load Scene」to enter Load Scene page Touch scene column to load saved channels setting for all output It will return to Load Scene page automatically. (Default is Output 1 to Input 1, Output 2 to Input 2 and so on…) Notice: if it shows”Please update device firmware”...
  • Page 29 Delete Matrix Press the block of matrix in Controller page to show pop-up dialog then touch「Delete」 Touch「Delete」to delete the matrix...
  • Page 30 9. iOS  APP  Function:   iTunes  Download  Link   https://itunes.apple.com/us/app/matrix-­control/id904487754?l=zh&ls=1&mt=8     iTunes  Download  QR  code       System  Setting   Connect  mobile  phone  to  Wi-­Fi  and  set  the  IP/  subnet  mask  same  with  matrix  network  segment   Default  IP  address  of  10  by  10  matrix  is  192.168.0.10   Default  IP  address  of  4  by  4  matrix  is  192.168.0.200  ...
  • Page 31 Main Page When first time enter the APP will see the main page Top left「+」to add matrix Top right 「Edit」to enter delete mode Bottom right「Info」to show information Scan Matrix Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list...
  • Page 32 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...
  • Page 33 Modify Device Touch the gear icon to enter Modification page Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 34 Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the output have been changed...
  • Page 35 Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 36 Output Channel Switching Left:  icon  for  matrix   Center  upper  big  font  for  matrix  name,   Center  middle  small  font  for  matrix  IP   Center  lower  small  font  for  matrix  type  (4  by  4  or  10  by  10)   Right  gear  icon:  enter  Modification  page   Notice:  if  shows 「...
  • Page 37 Touch input device to switch or ON/OFF icon to power on/off It will return to Controller page after switching and refresh the status of channel...
  • Page 38 Save Scene In Controller page touch bottom left 「Save Scene」 to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically. Notice: if it shows “Please update device firmware”...
  • Page 39 Load Scene In Controller page touch bottom right「Load Scene」to enter Load Scene page Touch scene column to load saved channels setting for all output It will return to Load Scene page automatically. (Default is Output 1 to Input 1, Output 2 to Input 2 and so on…) Notice: if it shows”Please update device firmware”...
  • Page 40 Delete Matrix Touch top right「Edit」button to enter delete mode Touch 「-」button in the left of matrix Touch「Delete」to delete the matrix Touch top right 「Done」to exit  ...

  • Page 41: Specification

    Specification:   ITEM  NO   HDTVHS10M   HDMI  Resolution   4096x2160p@24/25/30Hz  8bit  RGB444,  1080p@60Hz  12bit,  3D   Video  Input  Interface   HDMI  Type   A  x  10   Video  Output  Interface   HDMI  Type   A  x  10  ...
