WolfPack HDTVHDMX1616S User Manual

Hdmi matrix switcher 16x16
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMI MATRIX SWITCHER 16X16
MODEL NO.: HDTVHDMX1616S
USER MANUAL
All Rights Reserved
Version: 2018_V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDTVHDMX1616S and is the answer not in the manual?

Questions and answers

Related Manuals for WolfPack HDTVHDMX1616S

Summary of Contents for WolfPack HDTVHDMX1616S

  • Page 1 HDMI MATRIX SWITCHER 16X16 MODEL NO.: HDTVHDMX1616S USER MANUAL All Rights Reserved Version: 2018_V1...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions............1 2. FCC Statements............1 3. Introduction...............2 4. Features..............2 5. Connection and Operation........3 Matrix Connection...........3 Front Panel Button Control......4 IR Remote Control..........9 EDID Management........10 Serial Port Control.........11 6. Technical Specifications.........16 7. Troubleshooting&Maintenance.......17 8. After-Sales Service..........18...

  • Page 3: Safety Instructions

    Safety Instructions 1. Read the user manual completely before start-up. 2. Heed all warnings and follow basic safety precautions. 3. Do not use this equipment near water or moisture. 4. Clean the equipment only with dry cloth. 5. Unplug the power cord before cleaning. 6.

  • Page 4: Introduction

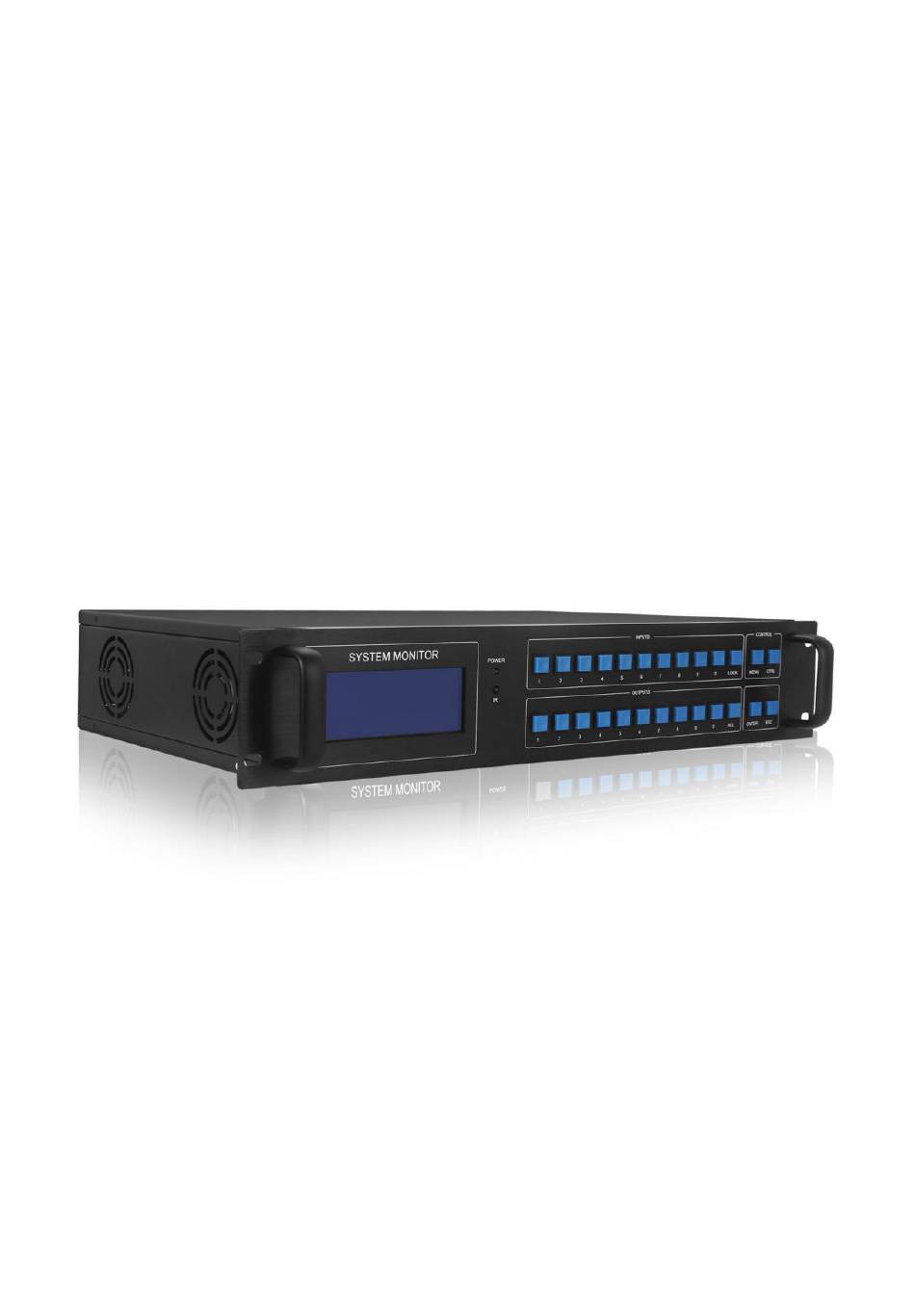

    Introduction HDMX1616S is 16x16 HDMI Matrix Switcher, supporting HDMI1.4 standard and a maximum resolution of 4K@30Hz. It allows any of the 16 Input HDMI Channels to be routed to any of the 16 Output HDMI Channels. Switching can be controlled by IR Remote Control, Front Panel Buttons, RS485, RS232, IP (Optional) and WIFI (Optional).

  • Page 5: Connection And Operation

    3. HDCP Compliant 4. Supports high definition resolutions including: 3840 x 2160P@24/25/30Hz, 1080P@60Hz, 1080i, 720P and other standard video formats. 5. Reading and saving EDID from displays function. 6. With automatic EQ and amplification capabilities. 7. With signal recovery enhancements capabilities. 8.

  • Page 6: Front Panel Button Control

    Front Panel Button Control 1. Front Panel Review LCD Screen (Display current status of Input-to-Output,etc.). Power Indicator (Power On/Off status). IR Receiver (Receive IR signal). Input Channels (Press 01 to 16 to select Input Channels, button LOCK are disabled ). Output Channels (Press 01 to 16 and button ALL to select Output Channels).
  • Page 7 Figure 4. Rear Panel Review 3. LCD Screen Display Menu IN: Input Channels OUT: Output Channels As shown in the following figure, the signal status on the LCD display indicates that the Input Channels are routed out to Output Channels, that is, 1‐1, 2‐2, 3‐3, 4‐4, 5‐5, 6‐6, 7‐7, 8‐8, 9-9, 10-10, 11-11, 12-12, 13-13, 14-14, 15-15, 16-16.
  • Page 8 Figure 6. Matrix Switching Status Display Menu Operation Press the MENU button on the front panel, the main menu of the matrix is displayed, including five sub-menus. Figure 7. Matrix Main Menu A. Plan Management To Save / Open the switching scheme, press 1 to enter the sub-menu, as shown below: Figure 8.
  • Page 9 ii) Press 2 to select the Call Plan (saved program). Enter the saved program number (press input channel button), then Press the ENTER button to confirm and save, as shown below: Figure 10. Call Plan Management B. View EQ & SW Unused for Matrix16*16 C.
  • Page 10 Figure 12. Factory Reset Setup ii) Press input channel buttons to select the LCD display off time: 1: 10s; 2: 20s; 3: 30s; 4: 40s; 5: 50s; 6: 60s, then Press the ENTER button to confirm. E. Communication Press input channel button 5 to enter the sub-menu, as shown below: Figure 13.

  • Page 11: Ir Remote Control

    IR Remote Control Figure 15. IR Remote Control Item Button Function POWER Turns On/Off the display screen LOCK Disable CTRL Disable SAVE Save Current Matrix Plan LOAD Calling Set Matrix Plan Select all the Output channels Disable BUZZER Disable RESET Factory Reset...

  • Page 12: Edid Management

    FAN1 Disable FAN2 Disable FAN3 Disable FAN4 Disable OUTPUT BUTTON Select the Output Channels INPUT BUTTON Select the Input Channels ENTER Confirm the Operation Cancel The Last Operation MENU Menu Contains 5 Sub-menus EDID Management The matrix has two ways to read the EDID. The factory default setting is Automatic Read Mode.

  • Page 13: Serial Port Control

    When the matrix enters the EDID SET mode, The EDID 1 to EDID 7 corresponds to 7 different EDID modes respectively, and can be selected by the Input buttons. PORT numbers corresponds to the Input Port that needs to set, and can be selected by the Output buttons. All Input Channel EDID can be set the same (select ALL button as shown above) or can be set different by each channel (press input buttons to set it up).
  • Page 14 1. RS485 Communication Port RS485 Port Pinout from left to right: RS485A(+), RS485B( ‐ ), GND as shown below: Figure 17. RS485 Port Pinout 2. RS232 Serial Port Control Figure 18. RS232 Control Ports Figure 19. RS232 IN Pinout...
  • Page 15 Figure 20. RS232 OUT Pinout RS232 IN Port (D‐SUB9F) Function Description Function RS232 OUT Port (D‐SUB9F) Function Description Function Steps: 1) Connect the Matrix Switcher to the PC through the RS232 cable. 2) Select the correct Serial Port in the Host Computer, and control the Matrix Switcher by the Host Computer Software.
  • Page 16 Matrix Switch (Button Switch) Matrix Switch (Map Switch)
  • Page 17 Matrix Switch (Grid Switch) Figure 21. Matrix Control Software (①②③④)

  • Page 18: Technical Specifications

    4) RS232 Serial Port Control Protocols Baud Rate: 9600 Data Bits: 8 Start Bit: 1 Stop Bit: 1 Parity Bit: None Matrix Compatible Protocols: Protocols Examples *IXOY(! *I01O02(! 1 input>>2 output XVY. 01V02. 1 input>>2 output *Y<X! *02<01! 1 input>>2 output X*Y! 01*02! 1 input>>2 output...

  • Page 19: Troubleshooting&Maintenance

    SIGNAL TYPE HDMI1.4 specification HDMI‐A all‐digital T.M.D.S. signal PROTOCOL Support HDMI1.4 Protocol，compatible with DVI1.0 Protocol BANDWIDTH Up to 340Mhz SIGNAL RATE Up to 10.2Gbps RESOLUTION MAX 4K@30Hz VIDEO FORMAT 3840x2160P/1080P/1080i/720P/576P/480P/576i/480i CONTROL Panel Button/RS485/RS232/Remote Controller/PC software control/ IP (Optional)/ Wifi (Optional) POWER CABLE ACIN 176V‐264V POWER...

  • Page 20: After-Sales Service

    Check if the power cable is properly plugged into a power outlet. 2. No Image Check that the Input signal source devices are turned on and well connected to the Matrix Switcher. Check that the displays are turned on and well connected to the Matrix Switcher.
