Summary of Contents for WolfPack HDTVFIX1600E

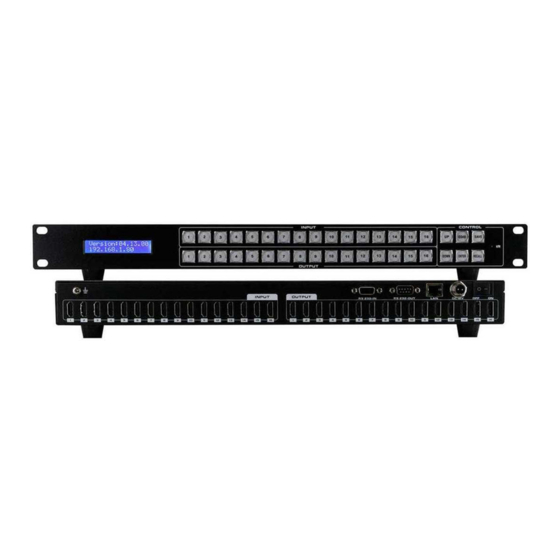

- Page 1 USER MANUAL Fixed WolfPack 4K 30 Hz 16x16 HDMI Matrix Switch with Apps & WEB GUI HDTVFIX1600E Version: V2.0.1...
- Page 2 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection.
-
Page 3: Warnings Of Fcc
Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Table Of Contents
Contents Warnings of FCC............................1 1. Product Introduction..........................3 2. Features..............................3 3. Specification............................3 4. Connection Diagram..........................4 5. Packing..............................4 6. Panel description...........................5 7. Matrix Switcher control........................6 Remote Control..........................6 WEB GUI Browser control........................9 Application(MCS) Control........................9 The 3rd Party Control command..................... 11 8. -
Page 5: Product Introduction
1. Product Introduction This is a new WolfPack 4K 30 Hz 16x16 HDMI Matrix Switch with Apps & WEB GUI, the resolution can up to 4K30Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-Press push buttons with background blue light,... -
Page 6: Connection Diagram
Input voltage Dimension(mm) 480 * 252 * 44( mm) Weight 3.5Kg Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF 4. Connection Diagram 5. Packing Name Unit HDTVFIX1600E Pcs. DC 12V5A power adapter Remote Control... -
Page 7: Panel Description
6. Panel description Front panel LCD screen: for the switching, EDID, IP etc information display. OUTPUT: 16 HDMI output buttons INPUT: 16 HDMI input buttons CONTROL: UP：for upward controlling EDID：Press it to enter EDID set mode. EDID Read：For example，in order to read the EDID of output port OUT5 to input port 1, we need to press the EDID button(the indicator of EDID lights) firstly, press the button 1 on IN side secondly, then press UP or DOWN button to select OUT5, at the same time button 5 on OUT side lights, finally... -
Page 8: Matrix Switcher Control
ON/OFF: power off/on switch 7. Matrix Switcher control This Matrix switcher can support IR remote, APP, RS232/TCP/IP software, WEB GUI browser or the front push-buttons control. Remote Control Users also can control this matrix switcher with the remote control. Channel switching: Press the input from number “1~8”, then press “SWITCH”, then press the output from number“1~8”, can press the outputs continually. - Page 9 On the input and output buttons, users also can view the active ports by the indicator: Custom/Caption interface for users to change/rename the input, output and scenes names, for changing the names, it can support total 8 characters and it’s not support the blank between the characters.
- Page 10 control the other RS232 devices by sending the HEX format codes: EDID interface for users to setup the EDID for each input, with 16 internal EDID for selection or use the 16 outputs EDID. Setup interface is for users to setup the IP address, baud rate, Buzzer on/off or the language selections, after changed the IP address, will need to reboot the matrix switcher.
-
Page 11: Application(Mcs) Control
APP control Users can download the APP from the Google play or Apple store by searching keywords “MCS”, then need to make sure the Matrix switcher is connected to the WIFI router and the mobile devices is connected to the same WIFI. The default IP address of the matrix switcher is 192.168.1.80. Open the APP and Enter the IP address of the matrix switcher: Click Enter and login with the user name and password, the default User name is admin, password is admin. - Page 12 Users can setup the EDID for each input by the “EDID” Tap: Users can setup the IP address, buzzer on/off by the “Setup” Tap: Users can login user name and password by the “Account” Tap:...
-
Page 13: The 3Rd Party Control Command
The 3 Party Control command IP address: 192.168.1.80 (default IP) Protocol: UDP Port: 4000 Command: send as hex Control instruction Functional description EB 90 0C 00 00 80 0B 02 (x-1) (y+7) 00 00 Switch [x] input to [y] output Save current scene to [X], [X] means number EB 90 0C 00 00 80 09 02 (0X) 00 00 00 keys from 1 to 9... -
Page 14: Common Problem Shooting
8. Common Problem Shooting Serial port operation is out of order, can not control to switch? The serial port is damaged or not started Solution: Make sure the port uses direct serial port line, check the connection of PC software serial port.
