HDMI Matrix System User Manual
HDMI Matrix System
HDTViM44 HDMI Matrix
User Manual
Brief Introduction
HDTViM44 HDMI matrix with 12V power adapter for multiple
HDMI sources to multiple display devices by different routing.
With high reliability,low power consumption,high bandwidth
(support HDMI 1.4) features,HDTViM44 can achieve up to 4x4
size.
User can control the matrix operation by panel buttons,PC
serial port.
User Control

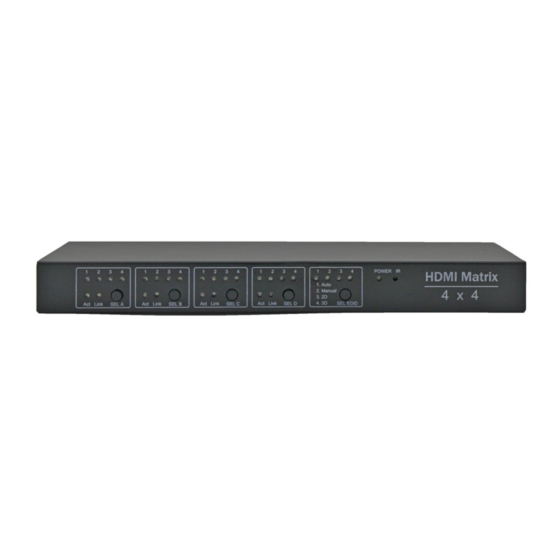

1. Front Panel
SEL A:Select the input source for HDMI output A
SEL B:Select the input source for HDMI output B
SEL C:Select the input source for HDMI output C
SEL D:Select the input source for HDMI output D
1,2,3,4 :Shows the input source which is selected
Act :
Shows if the corresponding input signal
is active
Link : Shows if the sink device is connected
SEL EDID:EDID option
Auto：Auto parse EDID；
Manual：User can configure the EDID with PC Tool
2D：EDID option_2D
3D：EDID option_3D
IR：For Remoter control (optional)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WolfPack HDTVIM44
Summary of Contents for WolfPack HDTVIM44
- Page 1 HDMI Matrix System User Manual Brief Introduction HDTViM44 HDMI matrix with 12V power adapter for multiple HDMI sources to multiple display devices by different routing. With high reliability,low power consumption,high bandwidth HDMI Matrix System (support HDMI 1.4) features,HDTViM44 can achieve up to 4x4 size.
- Page 2 COM port and the control operation of matrix. Instruction of connection via COM port: 1）Connect the PC and HDTViM44 matrix with RS232 cable,and please make sure that the driver of RS232 is working well. 2）Double click the PC tool software.It will automatically connect to the matrix via COM port.
- Page 3 HDMI Matrix System User Manual Instruction of control operation of matrix: 1) Click the rectangle which is on the right of output port and on the bottom of the input port can switch output port’s input source.And the rectangle’s color will change to blue if the operation is successful.Otherwise,you can try it again.
- Page 4 HDMI Matrix System User Manual HDTViM44 Parameters Accessories List Electrical parameters Item Quantity Interface HDMI-A Power Adapter HDMI version HDMI1.4 12V/3A Bandwidth 300MHz Remote User Manual CD Resolution Up to 4Kx2K@30Hz Matrix Clock Jitter <0.15 Tbit (1080p@60) RiseTime <0.3Tbit (20%--80%) RiseTime <0.3Tbit (20%--80%)
