HDMI MATRIX SWITCHER 4X4
MODEL NO.: HDTVHDMX0404S
USER MANUAL
All Rights Reserved
Version: 2018_V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDTVHDMX0404S and is the answer not in the manual?

Questions and answers

Related Manuals for WolfPack HDTVHDMX0404S

Summary of Contents for WolfPack HDTVHDMX0404S

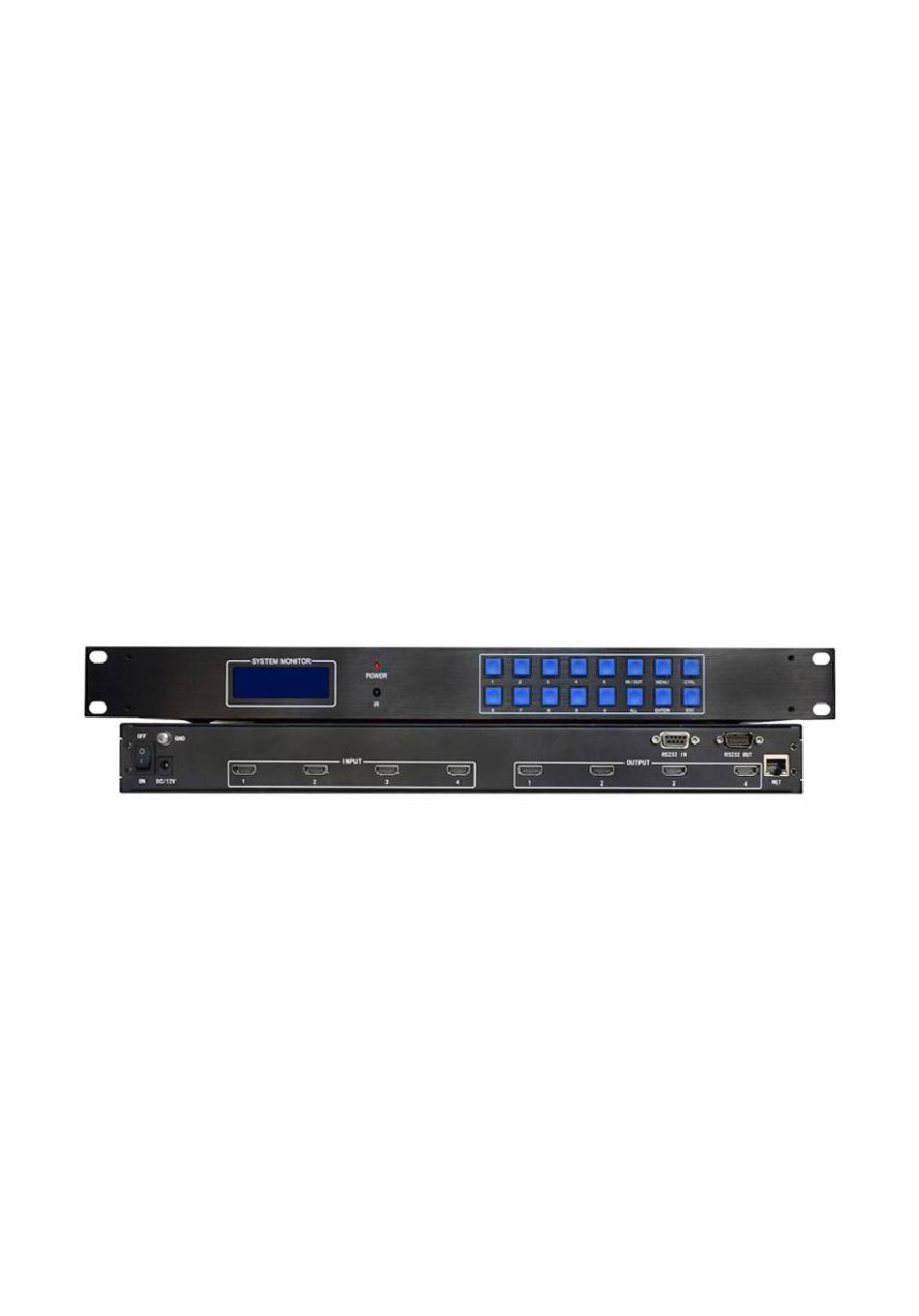

  • Page 1 HDMI MATRIX SWITCHER 4X4 MODEL NO.: HDTVHDMX0404S USER MANUAL All Rights Reserved Version: 2018_V1...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions............1 2. FCC Statements............1 3. Introduction...............2 4. Features..............2 5. Connection and Operation........3 Matrix Connection...........3 Front Panel Button Control......4 IR Remote Control..........6 EDID Management.........7 Factory Reset..........11 RS232 Control..........12 6. Technical Specifications.........17 7. Troubleshooting&Maintenance.......18 8. After-Sales Service..........19...

  • Page 3: Safety Instructions

    Safety Instructions 1. Read the user manual completely before start-up. 2. Heed all warnings and follow basic safety precautions. 3. Do not use this equipment near water or moisture. 4. Clean the equipment only with dry cloth. 5. Unplug the power cord before cleaning. 6.

  • Page 4: Introduction

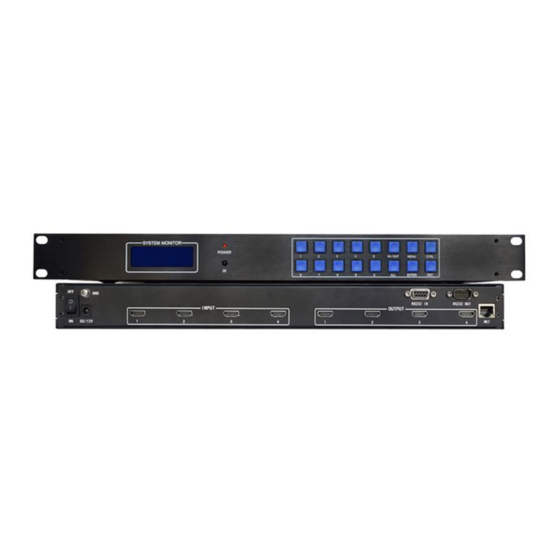

    Introduction HDMX0404S is 4x4 HDMI Matrix Switcher, supporting HDMI1.4 standard and a maximum resolution of 4K@60Hz (YUV 4:2:0). It allows any of the 4 Input HDMI Channels to be routed to any of the 4 Output HDMI Channels. Switching can be controlled by IR Remote Control, Front Panel Buttons, PC software and RS232.

  • Page 5: Connection And Operation

    6. With automatic EQ and amplification capabilities. 7. With signal recovery enhancements capabilities. 8. With on-site switching memory protection function. 9. Enhanced ESD electrostatic protection, special lightning protection circuit. 10. Allowing up to 4 channels HDMI audio video sources to be independently switched to 4 HDMI Monitors, HDTV Displays, or Projectors.

  • Page 6: Front Panel Button Control

    Front Panel Button Control 1. Front Panel Review LCD Screen (Display current status of Input-to-Output,etc.). Power Indicator (Power On/Off status). IR Receiver (Receive IR signal). Input Channels (Press button 1 to 4 to select Input Channels,button 0, button 5 to 9 are disabled ). Button 5,6,7 can only be used when in EDID Mode.
  • Page 7 Figure 4. Rear Panel Review 3. LCD Screen Display Menu IN: Press IN/OUT Button to select Input Channels (As shown in the figure below, press the IN/OUT button to enter the input channel selection interface) OUT: Press IN/OUT Button to select Output Channels (As shown in the figure below, press the IN/OUT button to enter the output channel selection interface) As shown in the following figure, the signal status on the LCD display...

  • Page 8: Ir Remote Control

    Figure 5. Matrix IN and OUT Status Display Switching Display Menu As shown in the following figure, it means that the input port 1 switches to ALL output ports. Figure 6. Matrix Switching Status Display IR Remote Control Figure 7. IR Remote Control...

  • Page 9: Edid Management

    Item Button Function POWER Disabled LOCK Disabled CTRL Disabled SAVE Disabled LOAD Disabled Select all the Output channels Disabled BUZZER Disabled RESET Disabled FAN1 Disabled FAN2 Disabled FAN3 Disabled FAN4 Disabled OUTPUT BUTTON Select the Output Channels INPUT BUTTON Select the Input Channels ENTER Confirm the Operation Disabled...
  • Page 10 re-analyse and re-combine the EDID based on the latest EDID information. 2. Manually Read EDID Long press the CTRL button and the LCD screen displays the current EDID mode of the Matrix. As shown below: ALL Input Channels select the First Mode: Automatic Read Mode.
  • Page 11 Figure 10. EDID 1 Mix Mode Copy Mode Press the Input button 2 to select Copy Mode. In this mode, by default, the matrix reads the EDID information of the Sink connected to a single Output Channel in a sequence from Port 1 to Port 4 till it detects the first valid EDID information, and send it to the Inputs.
  • Page 12 4K Mode Press the Input button 4 to select 4K Mode. As shown below: Figure 13. EDID 4 4K Mode 1080P Mode Press the Input button 5 to select 1080P Mode. As shown below: Figure 14. EDID 5 1080P Mode 720P Mode Press the Input button 6 to select 720P Mode.

  • Page 13: Factory Reset

    Press the Input button 7 to select 480P Mode. As shown below: Figure 16. EDID 7 480P Mode Each Input Channel Port can choose the same or different EDID Mode. Just select the Input buttons to set it up. If all Input Channel Ports need to be set up the same EDID Mode, then select the ALL button in the matrix output button area.

  • Page 14: Rs232 Control

    Figure 18. Factory Reset RS232 Control The matrix provides two serial ports：RS‐232 IN and RS‐232 OUT (See Figure 18). RS232 IN port connects with PC, while RS232 Out port connects to other devices that require communication to PC through RS232 protocols. This matrix can cascade with multiple devices, signal input through RS ‐...
  • Page 15 RS232 IN Port (D‐SUB9F) Function Description Function RS232 OUT Port (D‐SUB9F) Function Description Function Steps: 1. Connect the Matrix Switcher to the PC through the RS232 cable. 2. Select the correct Serial Port in the Host Computer, and control the Matrix Switcher by the Host Computer Software.
  • Page 16 Matrix Switch (Button Switch) Matrix Switch (Map Switch)
  • Page 17 Matrix Switch (Grid Switch)
  • Page 18 Figure 22. Matrix Control Software (①②③④) 4. RS232 Serial Port Control Protocols Baud Rate: 9600 Data Bits: 8 Start Bit: 1 Stop Bit: 1 Parity Bit: None Matrix Compatible Protocols: Protocol Example *I01O02(! 1 input>>2 output *IXOY(! *I01ONN(! 1 input>> ALL output 01V02.

  • Page 19: Technical Specifications

    Technical Specifications INPUT 4xHDMI (Female) Minimum Level：0.5Vp‐p Maximum Level：1.0Vp‐p Differential Impedance：100Ω Return Loss：‐30db@5MHz OUTPUT 4xHDMI (Female) Input Level：0.7Vp‐p Differential Impedance：100Ω Return Loss：‐30db@5MHz DC Compensation：5mV(Max) SIGNAL TYPE HDMI1.4 specification HDMI‐A all‐digital T.M.D.S. signal PROTOCOL Support HDMI1.4 Protocol，compatible with DVI1.0 Protocol BANDWIDTH Up to 340Mhz SIGNAL RATE Up to 10.2Gbps...

  • Page 20: Troubleshooting&Maintenance

    PRODUCT 440mmx285mmx44mm（Lx W x H） DIMENSION PACKING 560mmx330mmx155mm（Lx W x H） DIMENTION WEIGHT PACKING LIST Matrix Switcher x1 Power Cable x1 RS232 Cable x1 User Manual x1 Troubleshooting & Maintenance 1. No Power Check if the power cable is properly plugged into a power outlet. 2.

  • Page 21: After-Sales Service

    After-Sales Service 1. Product Warranty: We guarantee that our device will be free from defects in materials and workmanship for one year. The warranty period starts from the shipment delivery date as per the purchase order. Proof of purchase in the form of bill of sale or receipted invoice which are evidences that the device is within the warranty period must be presented to obtain warranty service.
