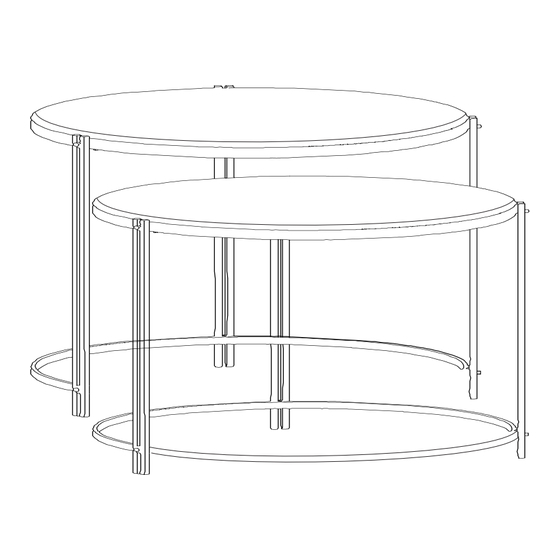

- Page 1 ASSEMBLY INSTRUCTION ITEM#: 7273 SKU# 810530873 CALCOLO STONE COFFEE TABLE Need help? We are here for you! www.biglots.com/help/contact-us...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting. Clear an area for assembly and assemble on a soft surface such as cardboard or carpet to protect finish. WARNINGS: Caution: Adult assembly required. Assembly will require 2 people. Assemble on soft surfaces to prevent damage to the product finish. -
Page 3: Helpful Hints
HELPFUL HINTS DO NOT place your furniture too close to window, heaters, or vents. DO NOT SMOKE WHEN DROWSY. Immediately remove any glowing or lit cigarette which falls on furniture. Clean any spills immediately using a clean, slightly dampened cloth and dabbing the area until the spill is removed. - Page 4 PARTS LIST LARGE TABLE Legs x3pc Top x1pc Washer x13 pc Base x1 pc Small allen Screw x7pc Allen Key x1pc large allen Screw x6pc Ring x1 pc Decorative Bolt x6pc 3/14...
- Page 5 STEP 1 1. Secure Legs (B) to Ring (G) with Washer (D) and Large Allen Screw (H) using Allen Key (E). Fully tighten screws Assembled View: 4/14...
- Page 6 STEP 2 1. Align the holes of Base (C) with the holes in Legs (B) and secure in place with Washer (D) and Large Allen Screw (H) using Allen Key (E) Assembled View: 5/14...
- Page 7 STEP 3 1. Fully tighten all Allen Screws with Allen Key so legs do not move. Assembled View: 6/14...
- Page 8 STEP 4 1. Place Top (A) upside down on a soft smooth surface. Place the assembled base onto Top (A). Align the holes in Ring (G) with the holes in Top (A). Insert Small Allen Screw (F) into each hole. After all Allen Screws have been inserted, fully tighten using Allen Key (E).
- Page 9 STEP 5 1. Turn the table to the upright position. Insert Decorative Bolt (I) into the holes of Leg (B). Hand tighten until tight. DO NOT use tools. Assembly is now complete. Assembled View: 8/14...
- Page 10 PARTS SMALL TABLE Legs x3pc Top x1pc Base x1 pc Washer x6 pc Allen Screw x6pc Allen Key x1pc Decorative Bolt x6pc 9/14...
- Page 11 STEP 1 1.Secure Legs (B) to Top (A) with Washer (D) and Small Allen Screw (F) using Allen Key (E). Fully tighten screws. Assembled View: 10/14...
- Page 12 STEP 2 1.Align the holes of Base (C) with the holes in Legs (B) and secure in place with Washer (D) and Small Allen Screw (F) using Allen Key (E). Assembled View: 11/14...
- Page 13 STEP 3 1.Fully tighten all Allen Screws with Allen Key so legs do not move. Return both tables to the upright position. Assembly is now complete. Assembled View: 12/14...
- Page 14 STEP 4 1. Turn the table to the upright position. Insert Decorative Bolt (G) into the holes of Leg (B). Hand tighten until tight. DO NOT use tools. Assembly is now complete. Assembled View: 13/14...
- Page 15 SAFETY INSTRUCTIONS FOR USE 1.1 Do not pull out or push in table with hand on top of the table. 1.2 Always Pull out or push in table iron the metal frame. PRINTED IN INDIA 14/14...
