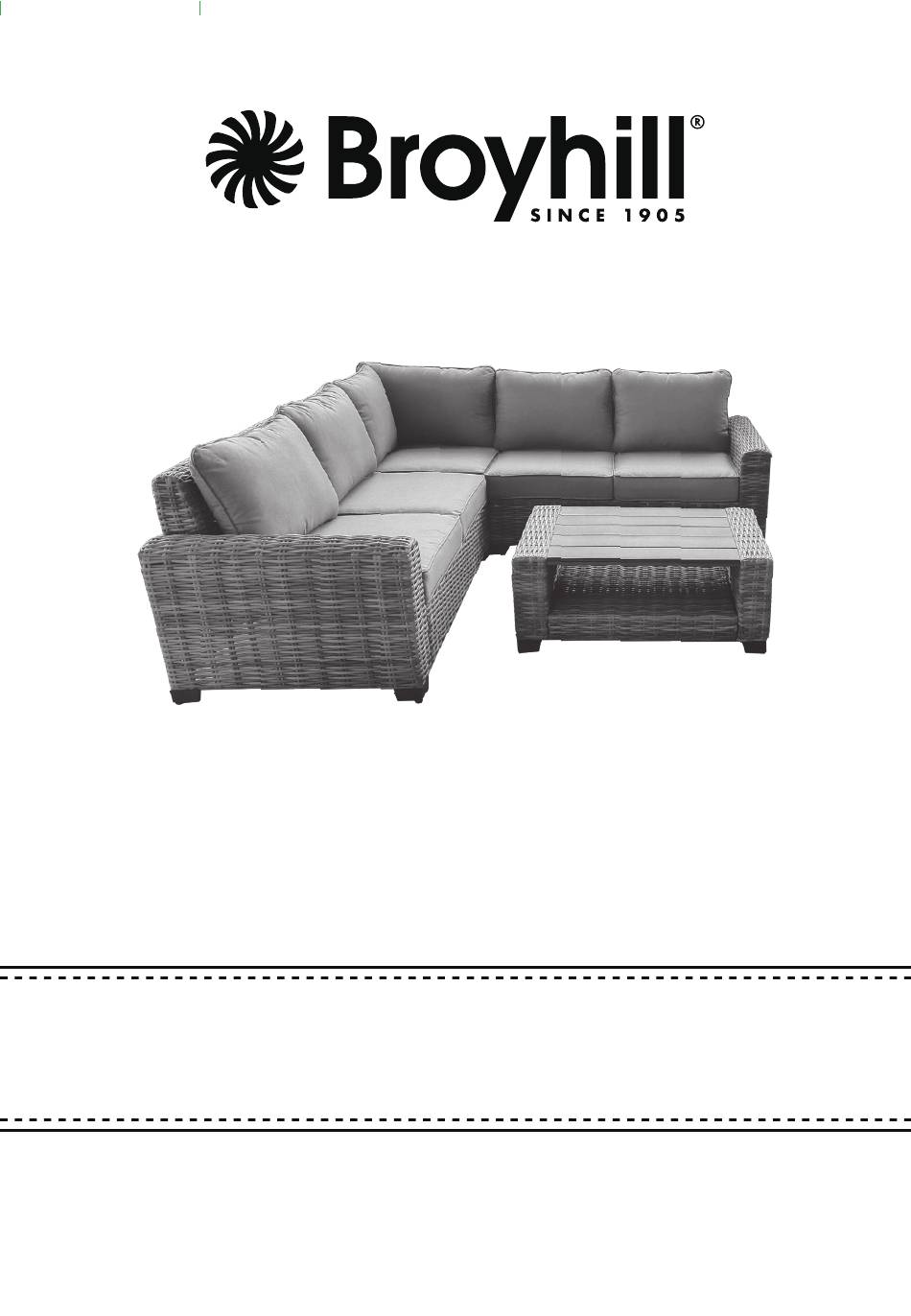

- Page 1 ASSEMBLY INSTRUCTION ITEM#: SH22SK1224 SKU#: 810580414 P E M B R O K E S E C T I O N A L S O F A S E T 1 (877) 800 – 6021 Need help? We are here for you! •...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Parts List
HKVS915X PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-45 BOLT M6*45 HKVS915X-BG LS-M6-50 BOLT M6*50 BACK ASSEMBLY HKVS915X-ZG DP-d6.5-D13 SEAT ASSEMBLY WASHER d6.5*D13*1.0 HKVS915X-ZSB LM-M6 LEFT ARM JAM NUT M6*1.0 HKVS915X-BM HKVS915X-JD BACK CUSHION LEG CAP HKVS915X-ZM LS-M6-35 BOLT M6*35 SEAT CUSHION Tools STEP 1... - Page 4 STEP 2 PARTS REQUIRED: 2, 3, 5, & 8 Tighten all bolts by using the supplied Hex key. STEP 3 PARTS REQUIRED: 1, 2, 7, 8, & 9 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 14...
- Page 5 STEP 4 PARTS REQUIRED: 1, 2, 3, 4, 6, & 8 Tighten all bolts by using the supplied Hex key. STEP 5 PARTS REQUIRED: 10 & 11 PAGE 4 OF 14...
- Page 6 HKVS915Y PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-45 BOLT M6*45 HKVS915Y-BG LS-M6-50 BOLT M6*50 BACK ASSEMBLY HKVS915Y-ZG DP-d6.5-D13 SEAT ASSEMBLY WASHER d6.5*D13*1.0 HKVS915Y-ZSB LM-M6 RIGHT ARM JAM NUT M6*1.0 HKVS915Y-JD HKVS915Y-BM BACK CUSHION LEG CAP HKVS915Y-ZM LS-M6-35 BOLT M6*35 SEAT CUSHION STEP 1 PARTS REQUIRED:...
- Page 7 STEP 2 PARTS REQUIRED: 2, 3, 5, & 8 Tighten all bolts by using the supplied Hex key. STEP 3 PARTS REQUIRED: 1, 2, 7, 8, & 9 Tighten all bolts by using the supplied Hex key. PAGE 6 OF 14...
- Page 8 STEP 4 PARTS REQUIRED: 1, 2, 3, 4, 6, & 8 Tighten all bolts by using the supplied Hex key. STEP 5 PARTS REQUIRED: 10 & 11 PAGE 7 OF 14...
- Page 9 HKVS915Z PARTS LIST PART LS-M6-50 MATERIAL CODE PART Q’TY BOLT M6*50 HKVS915Z-BG LS-M6-65 BACK ASSEMBLY BOLT M6*65 HKVS915Z-ZG DP-d6.5-D13 SEAT ASSEMBLY WASHER d6.5*D13*1.0 HKVS915Z-ZSB LM-M6 LEFT ARM JAM NUT M6*1.0 HKVS915Z-BMA HKVS915Z-JD BACK CUSHION A LEG CAP HKVS915Z-BMB LS-M6-35 BOLT M6*35 BACK CUSHION B HKVS915Z-ZM LS-M6-45...
- Page 10 STEP 2 PARTS REQUIRED: 1, 2, 7, 9, & 10 Tighten all bolts by using the supplied Hex key. STEP 3 PARTS REQUIRED: 2, 3, 8, 9, & 10 Tighten all bolts by using the supplied Hex key. PAGE 9 OF 14...
- Page 11 STEP 4 PARTS REQUIRED: 1, 2, 3, 4, 6, & 9 Tighten all bolts by using the supplied Hex key. STEP 5 PARTS REQUIRED: 11, 12, & 13 PAGE 10 OF 14...
- Page 12 HTVS40VW PARTS LIST PART MATERIAL CODE PART Q’TY HTVS40VW-JD LEG CAP HTVS40VW-ZM LS-M6-30 TABLE TOP BOLT M6*30 HTVS40VW-JG LS-M6-45 BOLT M6*45 HTVS40VW-ZJ DP-d6.5-D13 CENTER CONNECTOR WASHER d6.5*D13*1.0 STEP 1 PARTS REQUIRED: 1, 2, 5, & 7 Tighten all bolts by using the supplied Hex key. PAGE 11 OF 14...
- Page 13 STEP 2 PARTS REQUIRED: 2, 3, 5 & 7 Tighten all bolts by using the supplied Hex key. STEP 3 PARTS REQUIRED: 2, 4, 6, & 7 Tighten all bolts by using the supplied Hex key. PAGE 12 OF 14...
- Page 14 STEP 4 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. Securing Clips Please use the clips to connect and secure each section together. Use of the clips is optional and dependent upon the user's personal preference.
- Page 15 STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, Call Toll Free: TEL: 1-877-800-6021 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance, please visit us at service@hcipatio.com PAGE 14 OF 14...
