Broyhill CALCOLO STONE 7272 Assembly Instruction Manual

Broyhill CALCOLO STONE 7272 Assembly Instruction Manual

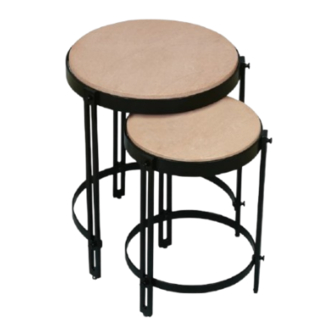

End table

Advertisement

Quick Links

ASSEMBLY INSTRUCTION
ITEM#:7272
SKU# 810530874
CALCOLO STONE END TABLE
Need help? We are here for you! www.biglots.com/help/contact-us

Advertisement

loading
Need help?

Need help?

Do you have a question about the CALCOLO STONE 7272 and is the answer not in the manual?

Questions and answers

Summary of Contents for Broyhill CALCOLO STONE 7272

  • Page 1 ASSEMBLY INSTRUCTION ITEM#:7272 SKU# 810530874 CALCOLO STONE END TABLE Need help? We are here for you! www.biglots.com/help/contact-us...
  • Page 2: Maintenance

    GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting. Clear an area for assembly and assemble on a soft surface such as cardboard or carpet to protect finish. WARNINGS: Caution: Adult assembly required. Assembly will require 2 people. Assemble on soft surfaces to prevent damage to the product finish.
  • Page 3: Helpful Hints

    HELPFUL HINTS DO NOT place your furniture too close to window, heaters, or vents. DO NOT SMOKE WHEN DROWSY. Immediately remove any glowing or lit cigarette which falls on furniture. Clean any spills immediately using a clean, slightly dampened cloth and dabbing the area until the spill is removed.
  • Page 4 PARTS LIST LARGE TABLE Legs x3pc Top x1pc Base x1 pc Washer x6 pc Allen Screw x6pc Allen Key x1pc Decorative Bolt x6pc 3/12...
  • Page 5 STEP 1 1. Secure Legs (B) to Top (A) with Washer (D) and Allen Screw (F) using Allen Key (E). Fully tighten screws. Assembled View: 4/12...
  • Page 6 STEP 2 1. Align the holes of Base (C) with the holes in Legs (B) and secure in place with Washer (D) and Allen Screw (F) using Allen Key (E). Assembled View: 5/12...
  • Page 7 STEP 3 1. Fully tighten all Allen Screws with Allen Key so legs do not move. Assembled View: 6/12...
  • Page 8 STEP 4 1. Turn the table to the upright position. Insert Decorative Bolt (G) into the holes of Leg (B). Hand tighten until tight. DO NOT use tools. Assembly is now complete. Assembled View: 7/12...
  • Page 9 PARTS SMALL TABLE Legs x3pc Top x1pc Base x1 pc Washer x6 pc Allen Screw x6pc Allen Key x1pc Decorative Bolt x6pc 8/12...
  • Page 10 STEP 1 1.Secure Legs (B) to Top (A) with Washer (D) and Allen Screw (F) using Allen Key (E). Fully tighten screws. Assembled View: 9/12...
  • Page 11 STEP 2 1.Align the holes of Base (C) with the holes in Legs (B) and secure in place with Washer (D) and Allen Screw (F) using Allen Key (E). Assembled View: 10/12...
  • Page 12 STEP 3 1.Fully tighten all Allen Screws with Allen Key so legs do not move. Return both tables to the upright position. Assembly is now complete. Assembled View: 11/12...
  • Page 13 STEP 4 1. Turn the table to the upright position. Insert Decorative Bolt (G) into the holes of Leg (B). Hand tighten until tight. DO NOT use tools. Assembly is now complete. Assembled View: PRINTED IN INDIA 12/12...
