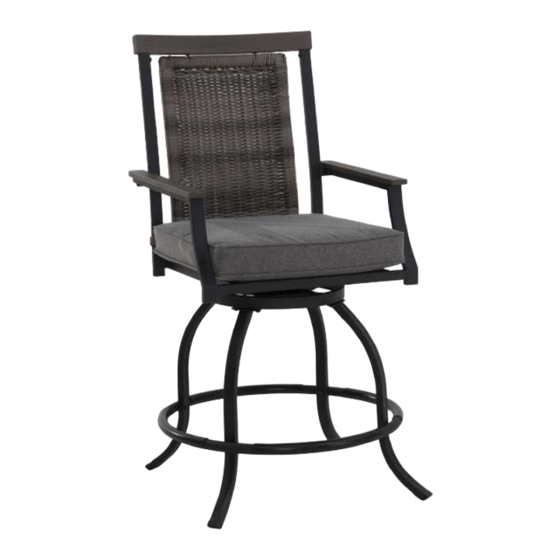

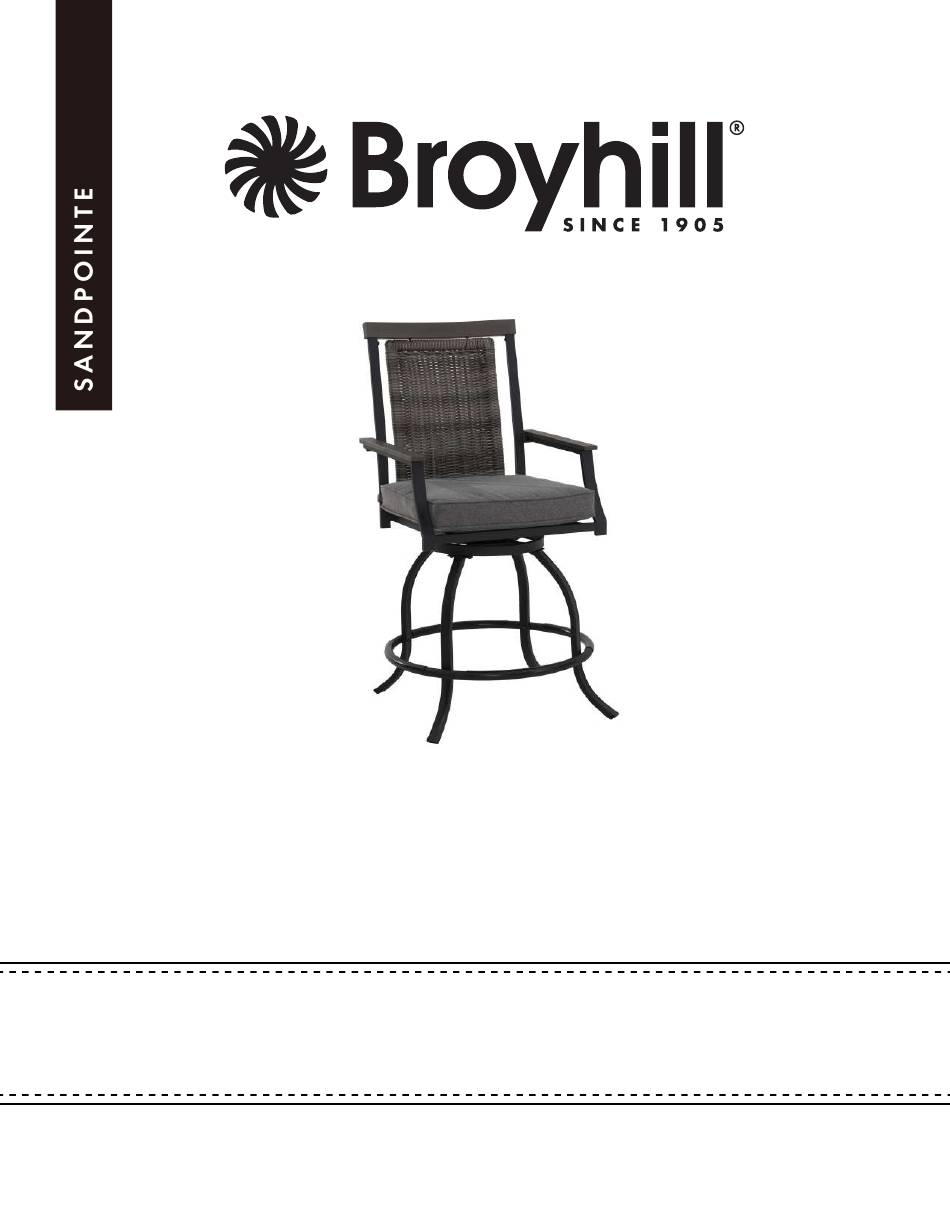

- Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A222011906 SKU#:810546478 SANDPOINTE 6PC HIGH DINING CHAIRS Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free...
-
Page 2: Warranty
GENERAL BEST PRACTICES FOR ASSEMBLY: • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST Label Part Number Description Part Image P004800006 Chair Back Rotary Plate P007400028 Pre-assembled P005400520 Chair Leg P000501537 Footrest P00180017301 Seat Cushion Foot pad P005300082 Pre-assembled Foot pad P005300047 Pre-assembled Plastic plug P008100019 Pre-assembled Plastic plug P005300013 Pre-assembled... -
Page 5: Hardware List
HARDWARE LIST Label Part Number Description Qty Part Image H010030030 Bolt M6*15 H010030023 B olt M6*35 Spring H050020017 Washer M6 Flat was her H050010025 H090030002 Wrench M6... -
Page 6: Helpful Hints
HELPFUL HINTS • Tools needed and not included • Separating parts before starting Provided in hardware pack Provided How many people needed for the installation work... - Page 7 STEP 1 Assembled View: Attached Chair Leg(C) to Footrest(D) with Bolt(H2), Spring Washer(H3) and Flat washer(H4), tighten the Bolt(H2) to 80% depth with Wrench(HW).
- Page 8 STEP 2 Assembled View: Attached Chair Leg(C) to Seat Back(A) with Bolt(H1), Spring Washer(H3) and Flat washer(H4),tighten the bolts on Footrest to 100% depth at first, then tighthen the Bolts on Rotary Plate to 100% depth with Wrench(HW) at last.
- Page 9 STEP 3 Assembled View: Put the Seat Cushion(E) on the Chair Back(A).
