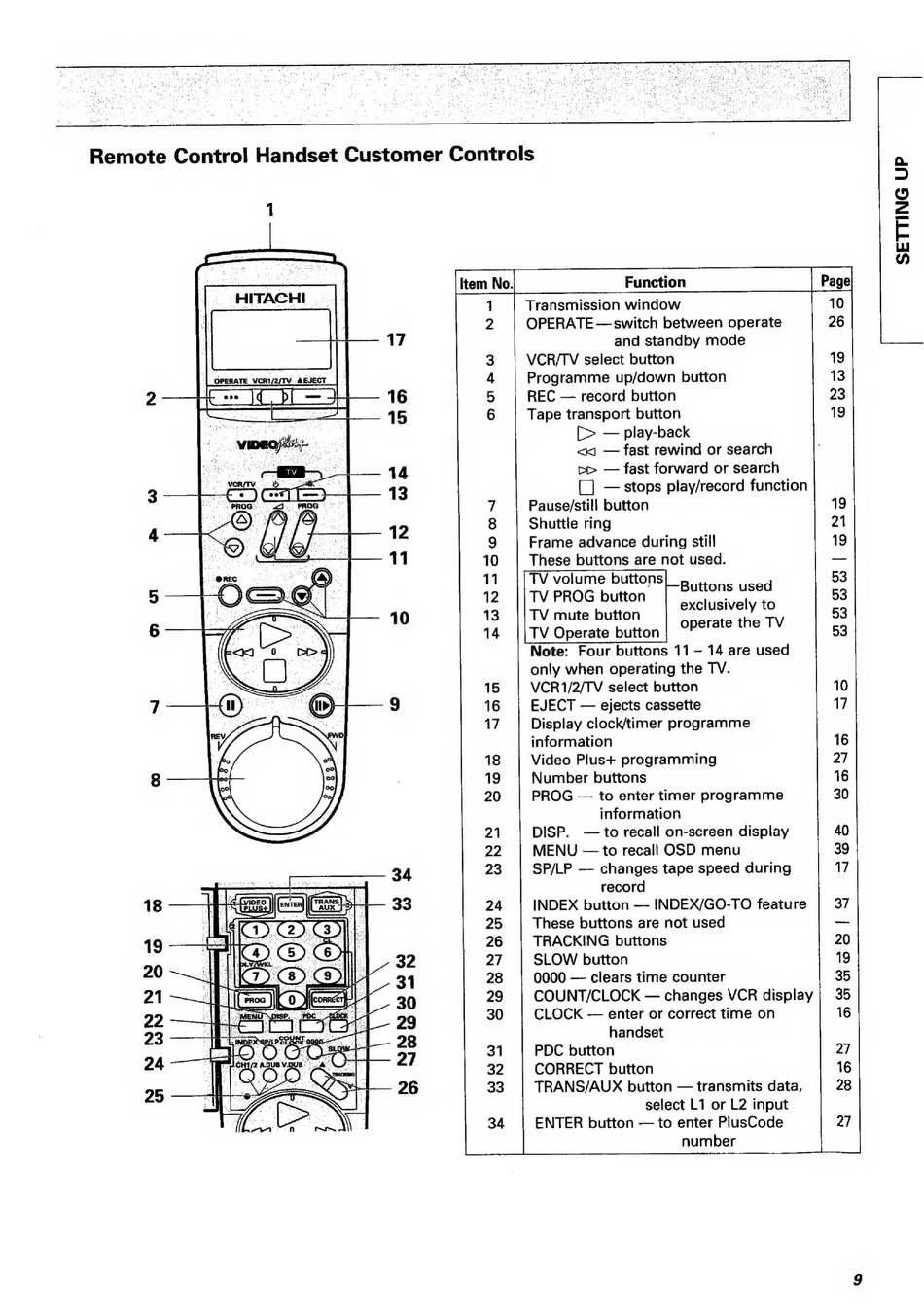

Function
Transmission window
OPERATE—switch
between operate
and standby mode
VCR/TV select button
Programme up/down button
REC — record button
Tape transport button
[> — play-back
<x) — fast rewind or search
pe — fast forward or search
(_] — stops play/record function
Pause/still button
Shuttle ring
Frame advance during still
These buttons are not used.
TV volume buttons
TV PROG button
TV mute button
TV Operate button
Note:
Four buttons 11 - 14 are used
only when operating the TV.
VCR1/2/TV select button
EJECT — ejects cassette
Display clock/timer programme
information
Video Plus+ programming
Number buttons
PROG — to enter timer programme
information
DISP.
— to recall on-screen display
MENU — to recall OSD menu
SP/LP — changes tape speed during
record
INDEX button — INDEX/GO-TO feature
These buttons are not used
TRACKING buttons
SLOW button
0000 — clears time counter
COUNT/CLOCK — changes VCR display
CLOCK — enter or correct time on
handset
PDC button
CORRECT button
TRANS/AUX button — transmits data,
select L1 or L2 input
ENTER button — to enter PlusCode
number
Buttons used
exclusively to
operate the TV
SETT
UP
