  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............................2 2. Appearance ............................2 3. Features ..............................3 4. Set up Instruction ........................... 3 5. Data Report ............................4 5.1 Example of ReportDataCmd ......................4 5.2 Example of ConfigureCmd ......................6 6. Installation ............................. 7 7.

  • Page 3: Introduction

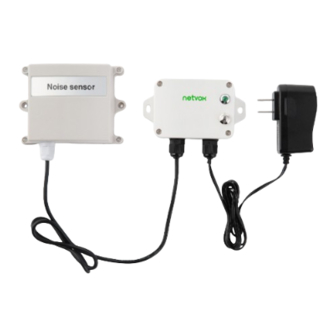

    R718PA7 is a Class A device based on LoRaWAN of NETVOX and is compatible with LoRaWAN protocol. R718PA7 can be connected with a noise sensor (RS485) externally. The noise value collected by the device will be reported to the corresponding gateway.

  • Page 4: Features

    3. Features ⚫ SX1276 wireless communication module ⚫ DC 12V adapter power supply ⚫ Main body: IP65/IP67 (Optional) ⚫ Main body adopts PG7 waterproof fixed joint ⚫ Magnetic base ⚫ RS485 communication Noise sensor lifespan: 1 – 2 years ⚫ (Note: Lifespan may vary due to the environment.) ⚫...

  • Page 5: Data Report

    DeviceType ReportType NetvoxPayLoadData Version– 1 byte –0x01——the Version of Netvox LoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device Report Type – 1 byte –the presentation of the NetvoxPayLoadData, according the device type NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1.
  • Page 6 Device Report Device NetvoxPayLoadData Type Type R718PA Battery Noise Reserved 0x57 0x07 Series (1Byte, unit:0.1V) (2Byte ,0.1ppm) (2Byte ,0.1ppm) (2Byte ,0.1db) (1Byte, fixed 0x00) Example of Uplink: 01570700FFFFFFFF025800 byte (01): Version byte (57): DeviceType 0x09 － R718PASeries byte (07): ReportType byte (00): Battery －...

  • Page 7: Example Of Configurecmd

    ReadConfigReportRsp 0x82 (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) (1) Configure R718PA7 device parameters (2) Read R718PA7 device parameters MaxTime = 60s (0x3C) Downlink: 0257000000000000000000 MinTime must be greater than 0 due to the software limitation. Device returns:...

  • Page 8: Installation

    6. Installation 1. R718PA7 has a built-in magnet (as the figure below). It can 2. The device periodically reports the data according to Max be attached to the surface of an iron object when it is Time. The default Max Time is 3min.

  • Page 9: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •Do not put the device near or submerge into water. Minerals in rain, moisture, and other liquids could cause corrosion of electronic components.
