Wireless Water Leak Detector / Temperature / Humidity Sensor
Wireless Water Leak Detector /
Temperature / Humidity Sensor
R718WAA
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718WAA and is the answer not in the manual?

Questions and answers

Summary of Contents for netvox R718WAA

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...
  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4. Set up Instruction ..............................4 5. Data Report ................................5 5.1 Example of ReportDataCmd..........................6 5.2 Example of ConfigureCmd ..........................7 5.3 Example for MinTime/MaxTime logic......................7 6.
  • Page 3: Introduction

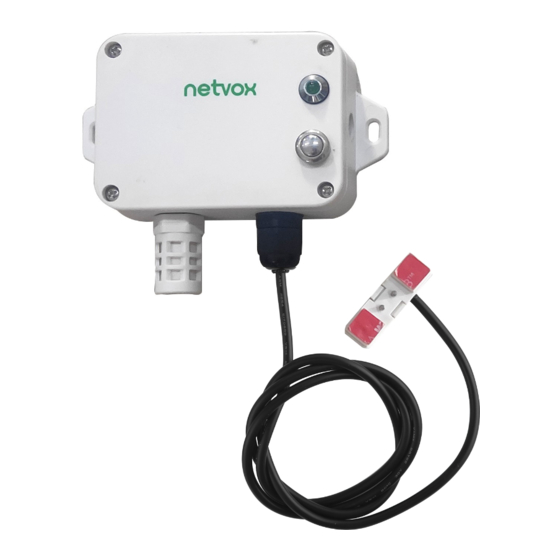

    1. Introduction R718WAA is an alarm device for water leakage detection of netvox ClassA type device based on LoRaWAN open protocol, which is compatible with LoRaWAN protocol. When the sensor of R718WAA detects water leakage, R718WAA will send alarm information and temperature and humidity to the gateway. When the sensor detects that there is no water leakage, it will send the information that the state returns to normal and the temperature and humidity to the gateway.
