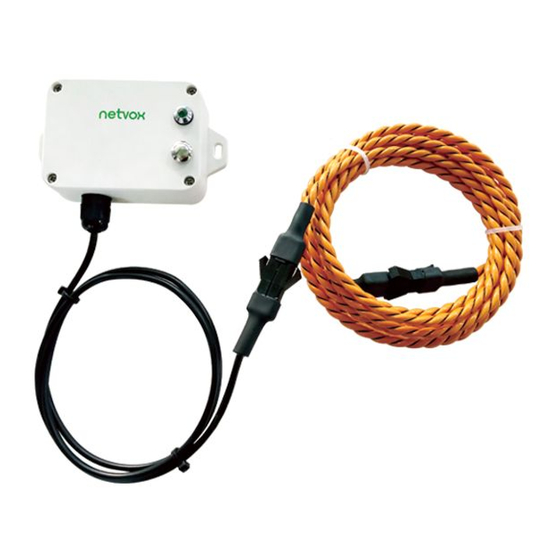

- Page 1 R718WB Model： Wireless Water Leak Detector with Rope Sensor Wireless Water Leak Detector with Rope Sensor R718WB User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ..................................................2 2. Appearance ..................................................3 3. Main Features ..................................................4 4. Set up Instruction ................................................. 4 5. Data Report ..................................................5 6. Installation .................................................... 7 7. Important Maintenance Instruction ............................................8... -
Page 3: Introduction
1. Introduction R718WB is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R718WB sensor detects a leak, it will send an alarm message to the gateway. When the sensor detects no leaks, it will send a message that shows no leak to the gateway. -
Page 4: Appearance
2. Appearance... -
Page 5: Main Features
Low power consumption and long battery life Note*: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life of various models in different configurations 4. Set up Instruction On/Off Insert batteries. -
Page 6: Data Report
When the R718WB status changes, it will send warning report. No water leak:0 Water leak:1 The reported data is decoded by the Netvox LoRaWAN Application Command document and http://www.netvox.com.cn:8888/page/index Data report configuration and sending period are as following: Current Change ＜... - Page 7 (1) Configure device parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v Downlink: 0112003C003C0100000000 The device returns: 8112000000000000000000 (configuration is successful) 8112010000000000000000 (configuration failed) (2) Read device parameters Downlink: 0212000000000000000000 The device returns: 8212003C003C0100000000 (device current parameter) Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime leeping(MinTime)
-
Page 8: Installation
6. Installation This product comes with waterproof function. When using it, the back of it can be adsorbed on the iron surface, or the two ends can be fixed to the wall with screws. Note: When installing the battery, use a screwdriver or similar tool to assist in opening the battery cover. Waterline Structure: Water line: up to 300m* Water contact alarm: recommended at least... -
Page 9: Important Maintenance Instruction
Time : real-time(Within 10 seconds) R718WB Fixing Hook >3cm Soaking water >3CM,Send a Report >3cm detection line. Water Water Water Soaking depth >2mm 7. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively.
