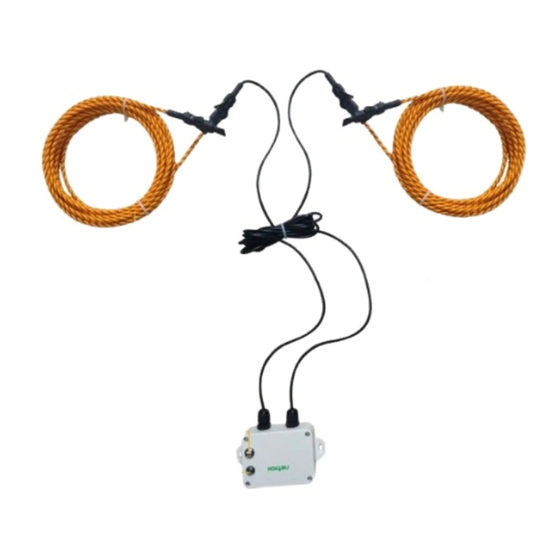

- Page 1 R718WB2 Wireless 2-Gang Water Leak Detector with Rope Sensor Wireless 2-Gang Water Leak Detector with Rope Sensor R718WB2 User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ................................2 2. Appearance ................................2 3. Main Features ................................3 4. Set up Instruction ..............................3 5. Data Report ................................5 6. Installation ................................8 7. Information about Battery Passivation ......................... 10 7.1 To determine whether a battery requires activation ..................10 7.2 How to activate the battery .......................... -
Page 3: Introduction
1. Introduction R718WB2 is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R718WB2 water rope sensor detects a leak, it will send an alarm message to the gateway. When the water rope sensor detects no leaks, it will send a message that shows no leak to the gateway. -
Page 4: Main Features
⚫ Low power consumption and long battery life Note*: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life of various models in different configurations. 4.Set up Instruction On/Off Insert batteries. - Page 5 Turn on the device to search the network to join the network. Never joined the network The green indicator stays on for 5 seconds: success The green indicator remains off: fail Had joined the network Turn on the device to search the previous network to join the network. (not at factory setting The green indicator stays on for 5 seconds: success mode)
-
Page 6: Data Report
While the water leak detection is triggered: The leak detected a change in state and immediately issued a report. No leaks status: 0, leak status: 1. The data report can be decoded by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index Data report configuration and sending period are as following: ＜... - Page 7 (1) Configure device parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v Downlink: 0147003C003C0100000000 The device returns: 8147000000000000000000 (configuration is successful) 8147010000000000000000 (configuration is failed) (2) Read device configuration parameters Downlink: 0247000000000000000000 The device returns: 8247003C003C0100000000 (device current configuration parameter) Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e.
- Page 8 Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Users push the button, Wakes up and collects data REPORTS 3.5V. 3.5V |3.5-3.6|=0.1 Wakes up and Recalculate MaxTime. REPORTS 3.5V collects data 3.5V Does not report sleeping sleeping 1H 10...
-
Page 9: Installation
6. Installation This product comes with waterproof function. When using it, the back of it can be adsorbed on the iron surface, or the two ends can be fixed to the wall with screws. Note: When installing the battery, use a screwdriver or similar tool to assist in opening the battery cover. Waterline Structure: Water line: up to 300m* Water contact alarm: recommended at least... - Page 10 Time : real-time(Within 10 seconds) R718WB Fixing Hook >3cm Soaking water >3CM,Send a Report >3cm detection line Water Soaking depth >2mm...
-
Page 11: Information About Battery Passivation
7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high. -
Page 12: Important Maintenance Instruction
8. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits.
