Telephone base installation
Installation option - wall mount position
To mount the telephone base on the wall

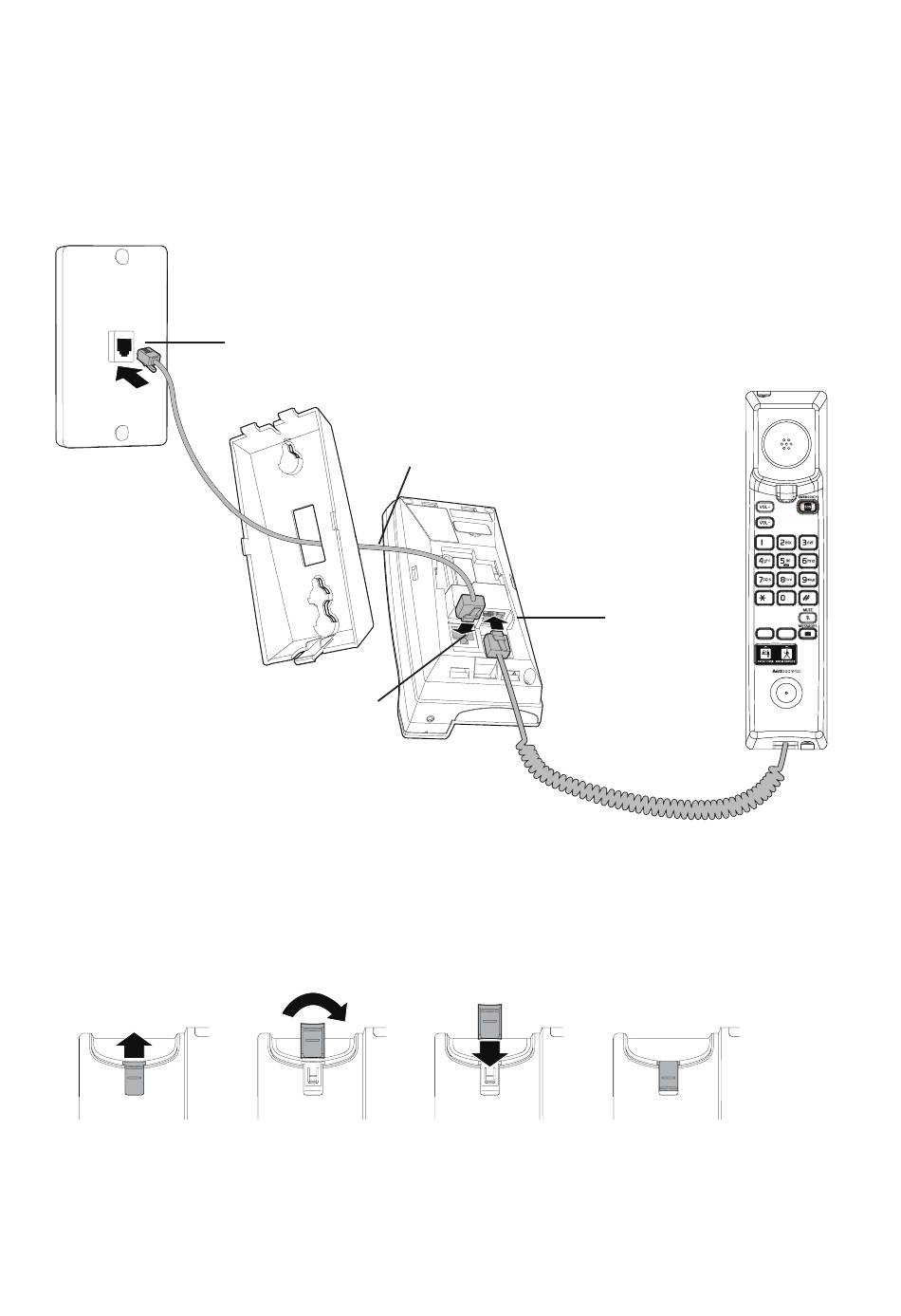

1. Install the telephone base as shown below.
2. Put the corded handset aside. On the telephone base, press the wall mount clip upward
and rotate a half turn (180°). Slide back the clip.
• It locks into place with the protruding edge pointing towards the upper edge of the
telephone base. This protruding edge holds the corded handset when the phone is
mounted on the wall.
3. Turn the telephone base over with the bottom side facing up. Insert the mounting bracket into the two
upper grooves and a lower groove on the telephone base until they lock securely. In the meantime, the
ethernet cable sticks out from the rectangular hole. Besides, affix coil handset cord by fitting it in the
circular hole at the bottom of the mounting bracket as shown below.
Ethernet cable wall jack
Ethernet cable jack
Ethernet cable
EN - 9
Coiled handset
cord jack
