Installation

SIP Corded 1-line Hotel Telephone - HD100
SIP Corded 1-line Wi-Fi Enabled Hotel Telephone - HD100W
Telephone base installation
Installation option - desktop Position

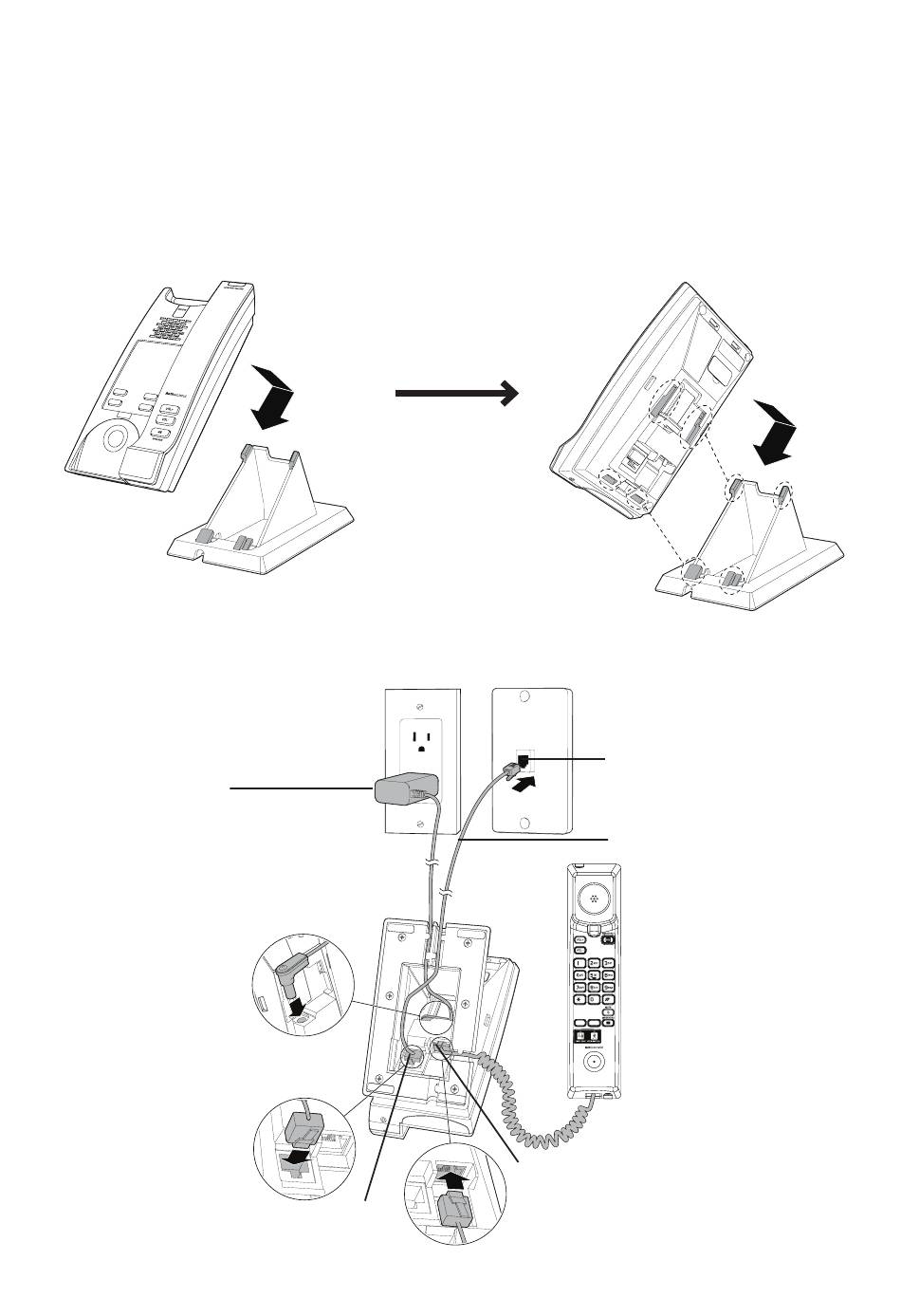

1. Turn the telephone base over with the bottom side facing up. Insert the base stand into the
lower grooves on the telephone base until they lock securely as shown below.
2. Connect both the ethernet cable and coiled handset cord to the telephone base and
route them along the wire ducts accordingly. Install the telephone base as shown below.
Power adapter
(not included)
Ethernet cable jack
Coiled handset cord jack
EN - 8
Ethernet cable wall jack
Ethernet cable
