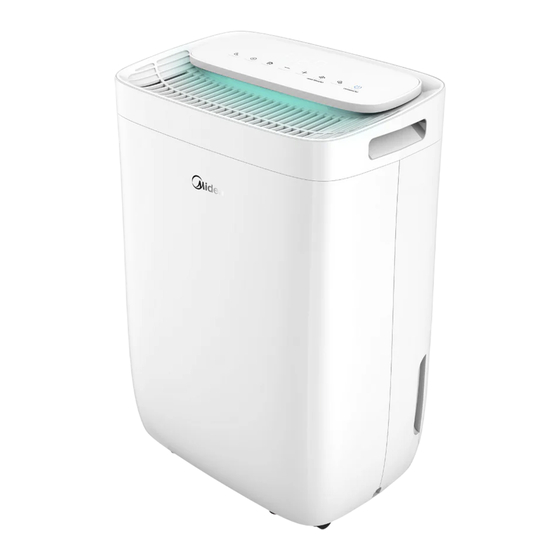

- Page 1 DEHUMIDIFIER Owner’s Manual & Installation Manual MDDQ12 IMPORTANT NOTE: Read this manual carefully before installing or operating your new machine. Make sure to save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Safety Precautions Safety Precautions ........................03 Preparation Identification of parts.........................11 Design Notice..........................11 Positioning the unit........................12 When using the unit........................12 Operating Instructions Control Panel Features.......................13 Other features........................... 15 Removing the collected water....................16 Care and Maintenance Clean the grille and case......................17 Clean the bucket ........................17 Clean the air filter ........................17 When not using the unit for long time periods .................18... -
Page 3: Safety Precautions
Safety Precautions Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. WARNING CAUTION This symbol indicates the possibility of... - Page 4 CAUTION This appliance can be used by children aged from 8 years and above and person with reduced • physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 UV-C lamp(Applicable to the unit contains an UV-C lamp only) This appliance contains a UV-C lamp. Read the maintenance instructions before opening the appliance. 1. Do not operate UV-C lamps outside of the appliance. 2. Appliances that are obviously damaged must not be operated. 3.
- Page 6 WARNING for Using R32/R290 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
- Page 7 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
- Page 8 8)Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed;...
- Page 9 9.Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 10.Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
- Page 10 14.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
-
Page 11: Preparation
Preparation Identification of parts NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller. -
Page 12: Design Notice
Design Notice In order to ensure the optimal performance of our products, the design specifications of the unit are subject to change without prior notice. Positioning the unit applications only. This dehumidifer should not be used 40cm or more for commercial or industrial applications. Place the dehumidifier on a smooth, level floor strong •... -
Page 13: Operating Instructions
Operating Instructions Control Panel Features Note: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail. Indicator Function Indicator... - Page 14 UP( )/DOWN( ) buttons indicator light illuminates. All current settings are locked, and the control panel will not accept any · Humidity Set Control buttons operation except of the LOCK. The humidity level can be set within a range of 35% ·...
-
Page 15: Other Features
Other features Bucket Full Light Dryer mode(On some models) · Glows when the bucket is ready to be emptied, or The unit can make the MAX dehumidification fun- when the bucket is removed or not replaced in the ction when it is under Dryer mode. The fan speed proper position. -
Page 16: Removing The Collected Water
Removing the collected water 2. Continuous draining There are two ways to remove collected water. Water can be automatically emptied into a floor drain 1. Use the bucket by attaching the unit with a water hose(Φ16.5*13.5 · When the bucket is full, the unit will automati- mm)(not included). -
Page 17: Care And Maintenance
Care and Maintenance Care and cleaning of the dehumidifier Turn the dehumidifier off and remove the plug from the wall outlet before cleaning. Clean the Grille and Case · Use water and a mild detergent. Do not use bleach or abrasives. ·... -
Page 18: When Not Using The Unit For Long Time Periods
When not using the unit for long time periods · After turning off the unit, wait one day before emptying the bucket. · Clean the main unit, water bucket and air filter. · Cover the unit with a plastic bag. ·... - Page 20 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. CD001-DQ...
- Page 21 USER MANUAL OF SMART KIT IMPORTANT NOTE: Read the manual carefully before connecting your Smart kit(Wireless module). Make sure to save this manual for future reference.
- Page 23 CONTENTS SPECIFICATION....................PRECAUTIONS....................DOWNLOAD AND INSTALL APP................. USER REGISTRATION ..................NETWORK CONFIGURATION................HOW TO USE APP....................SPECIAL FUNCTIONS..................APP DECLARATION....................
-
Page 24: Specification
1 SPECIFICATION Unit model:MDDQ12 WIFI Module Model: EU-SK105/US-SK105 Standard: IEEE 802. 11b/g/n Antenna Type: Printed PCB Antenna Frequency : WLAN 2400~2483.5 MHz Operation Temperature:0 C~45 C/32 F~113 F Operation Humidity: 10%~85% Power Input: DC 5V/300mA Maximum Transmitted Power: ＜20dBm 2 PRECAUTIONS Applicable system: iOS, Android. -
Page 25: Download And Install App
CAUTION: The following QR code is only available for downloading APP. It is totally different with the QR code packed with unit. Android Scan QR code to download the “ Midea Air ” APP or get it from Google play and app store by manually searching. USER REGISTRATION Please ensure your mobile device is connected to Wi-Fi/Wireless router. -
Page 26: Network Configuration
NETWORK CONFIGURATION Cautions It is necessary to forget any other around network and make sure the Android or iOS device just connect to the Wi-Fi/Wireless network you want to configure. Make sure the Android or iOS device Wi-Fi/Wireless function works well and can be connected back to your original Wi-Fi/Wireless network automatically. - Page 27 Wait smart devices to Select home Wi-Fi, enter Wait connecting to find, then click to add it the password the network Dehumidifier Dehumidifier Dehumidifier Configuration Success, You can choose an Bluetooth setting is successful you can modify the default existing name or name.
- Page 28 Network configuration by select appliance type : If the bluetooth network Please follow the above steps to enter “AP” mode. cofiguration is failure, please select the appliance type. Choose Method Back Scan QR code on the unit Note:Wait5-10 seconds while your device is in AP mode before scanning the QR code.
- Page 29 Dehumidifier Network configuration is Please enter password Configuration Success, successful you can see the device on the list. NOTE: When finishing network configuration, APP will display success cue words on the screen. Due to different internet environment, it is possible that the device status still display “offline”...
-
Page 30: How To Use App
HOW TO USE APP Please ensure both your mobile device and are connected to the dehumidifier Internet before using app to control the via internet, please follow the dehumidifier next steps: Dehumidifier Bucket is full Dehumidifier Choose the Dehumidifier. Make sure the Bucket is not Click “... -
Page 31: Special Functions
Thus, user can control dehumidifier on/off status, operation mode, target humidity, fan speed and so on. NOTE: Not all the function of the APP is available on dehumidifier. For example: ION, Pump, Pure function, please check the user manual to find more information. - Page 32 Share Device function. Click “ Share device ” QR code display. Dehumidifier The other users must log in Add the shared device. the “ Midea Air ” APP, then click “Add Shared Device” and scan the QR code.
-
Page 33: App Declaration
APP DECLARATION FCC ID:2ADQOMDNA21 IC:12575A-MDNA21 This device complies with Part 15 of the FCC Rules and it contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. - Page 36 CD003IU-APWIFI(OBM)
