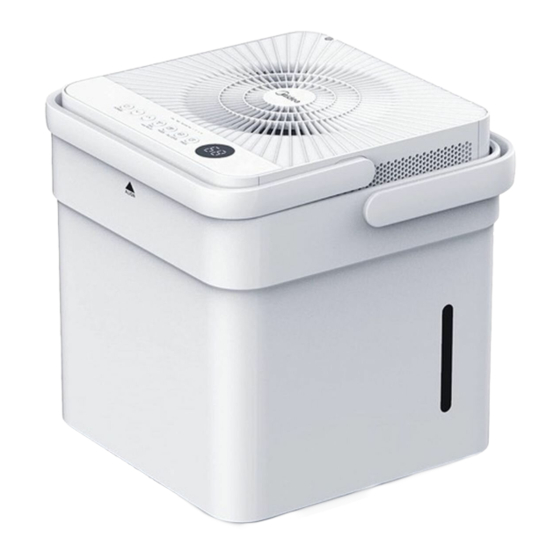

- Page 1 DEHUMIDIFIER Owner’s Manual & Installation Manual MDDM20 IMPORTANT NOTE: Read this manual carefully before installing or operating your new machine. Make sure to save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Safety Precautions Safety Precautions ................................01 Preparation Identification of parts................................09 Installation instructions..............................09 Strorage instructions................................09 Caster installation and disassembly instruction........................09 Design Notice..................................10 Positioning the unit................................10 When using the unit................................10 Operating Instructions Control Panel Features..............................11 Other features..................................13 Removing the collected water............................15 Care and Maintenance Clean the grille and case..............................17 Clean the bucket ................................17... -
Page 3: Safety Precautions
Safety Precautions Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. WARNING CAUTION This symbol indicates the possibility of... - Page 4 CAUTION This appliance can be used by children aged from 8 years and above and person with reduced • physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant) 1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the relevant label on the unit itself. 2.
- Page 6 WARNING for Using R32/R290 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
- Page 7 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
- Page 8 8)Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed;...
- Page 9 9.Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 10.Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
- Page 10 14.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
-
Page 11: Preparation
Preparation Identification of parts NOTE:All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel . air outlet grille control panel handle air intake grille... -
Page 12: Design Notice
bottom of unit caster block Disassembly: 1.To remove the caster , use a screwdriver to prop up the block, then take it down. 2.Then remove the caster. Design Notice In order to ensure the optimal performance of our products, the design specifications of the unit are subject to change without prior notice. -
Page 13: Operating Instructions
Operating Instructions Control Panel Features NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail. Indicator Function Indicator... - Page 14 UP( )/DOWN( ) buttons · PUMP feature(On some models) Press and hold on the Up/Down buttons 2 second to · Humidity Set Control buttons initiate PUMP feature.Press and hold on the Up/Down In Setting dehumidifying mode, The humidity level can be buttons 2 seconds again to stop PUMP feature.
-
Page 15: Other Features
Protection Code: Setting dehumidifying mode P2-Bucket is full -- Empty the bucket and replace it in At setting dehumidifying mode, the unit can be adjusted in a the right position. range 35%~85%, and the humidity setting can be adjusted Eb-Bucket malfunction--Replace the bucket in the right (increase/decreasing) in 5%. - Page 16 Bucketless mode(on some models) √ The dehumidifier can be used without bucket when the unit is under Bucketless mode. The unit will not reminds the water to be full after entering the bucketless mode, therefore, it is suggested that: 10cm or more 1.
-
Page 17: Removing The Collected Water
Removing the collected water Note: There are two ways to remove collected water. · When you remove the bucket, do not touch 1. Use the bucket any parts inside of the unit. Doing so may · When the unit is off,if the bucket is full, the unit will damage the product. - Page 18 3. Pump draining (on some models) · Water can be automatically emptied into a floor drain · select the desired humidity setting and fan speed on or a suitable drainage facility by attaching the pump the unit for pump draining to start. Note: The pump operation on light blinks at 1Hz when drain outlet with a pump drain hose(Φod=1 ′′,...
-
Page 19: Care And Maintenance
Care and Maintenance Care and cleaning of the dehumidifier Turn the dehumidifier off and remove the plug from the wall outlet before cleaning. Clean the Grille and Case · Use water and a mild detergent. Do not use bleach or abrasives. ·... -
Page 20: When Not Using The Unit For Long Time Periods
When not using the unit for long time periods · After turning off the unit, wait one day for water collecting before emptying the bucket. · Clean the main unit, water bucket and air filter. · Cover the unit with a plastic bag. ·... - Page 22 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. CD001UI-DM...
- Page 23 USER MANUAL OF SMART KIT IMPORTANT NOTE: Read the manual carefully before connecting your Smart kit(Wireless module). Make sure to save this manual for future reference.
- Page 24 CONTENTS SPECIFICATION....................PRECAUTIONS....................DOWNLOAD AND INSTALL APP................. USER REGISTRATION ..................NETWORK CONFIGURATION................HOW TO USE APP....................SPECIAL FUNCTIONS..................APP DECLARATION....................
-
Page 25: Specification
1 SPECIFICATION Unit model: MDDM20 WIFI Module Model: EU-OSK103/US-OSK103 Standard: IEEE 802. 11b/g/n Antenna Type: Printed PCB Antenna Transmit frequency: 2412-2472MHz Operation Temperature:0 C~45 C/32 F~113 F Operation Humidity: 10%~85% Power Input: DC 5V/300mA Maximum transmit power： <20dBm 2 PRECAUTIONS Applicable system: iOS, Android. -
Page 26: Download And Install App
CAUTION: The following QR code is only available for downloading APP. It is totally different with the QR code packed with unit. Android Scan QR code to download the “ Midea Air ” APP or get it from Google play and app store by manually searching. USER REGISTRATION Please ensure your mobile device is connected to Wi-Fi/Wireless router. -
Page 27: Network Configuration
5 NETWORK CONFIGURATION Cautions It is necessary to forget any other around network and make sure the Android or iOS device just connect to the Wi-Fi/Wireless network you want to configure. Make sure the Android or iOS device Wi-Fi/Wireless function works well and can be connected back to your original Wi-Fi/Wireless network automatically. - Page 28 8:08 AM QR Code Align the QR code within the fram e to scan Choose the network Choose the “ Scan the Follow the above steps configuration method. QR code ” method. Sacn to enter “AP” mode. the QR code on the unit. Network configuration is Or choose the “Manual Please enter password...
- Page 29 Configuration Success, you can see the device on the list. Using iOS device to do network configuration Make sure your mobile device has already been connected to the Wi-Fi/Wireless network which you want to use. Also, you need to forget other irrelevant Wi-Fi/ Wireless network in case it influences your configuration process.
- Page 30 Wi-Fi/ Follow the above steps to Connect to the Please enter password Wireless network. enter “AP” mode. Network configuration is successful...
- Page 31 NOTE: When finishing network configuration, APP will display success cue words on the screen. Due to different internet environment, it is possible that the device status still display “offline” . If this situation occurs, it is necessary to pull and refresh the device list on the APP and make sure the device status become “online”...
-
Page 32: How To Use App
HOW TO USE APP Please ensure both your mobile device and are connected to the Internet dehumidifier before using app to control the dehumidifier via internet, please follow the next steps: Choose the Dehumidifier. Make sure the Bucket is not Click “... -
Page 33: Special Functions
NOTE: Not all the function of the APP is available on dehumidifier. please check the user manual to find more information. SPECIAL FUNCTIONS Including: Timer on, Timer off, Share device NOTE: If the dehumidifier do not support the above function, the function will be hided from the function list. - Page 34 Share Device function. The other users must log in Click “ Share device ” QR code display. the “ Midea Air ” APP, then click “Add Shared Device” and scan the QR code. Add the shared device.
-
Page 35: App Declaration
APP DECLARATION CAUTIONS: CONTAINS FC C ID: 2 AD QOMD N A1 9 CONTAINS IC : 1 257 5A-MD NA 19 T his d evice co mplies with Pa rt 1 5 o f the F CC R ules and Industry Cannad's licence-exempt RSSs. - Page 36 CD003IU-APWIFI(OBM)
