DEHUMIDIFIER
USER MANUAL
MODEL NUMBER
MDDN2-10DEN7-QA3
MDDN2-12DEN7-QA3
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.

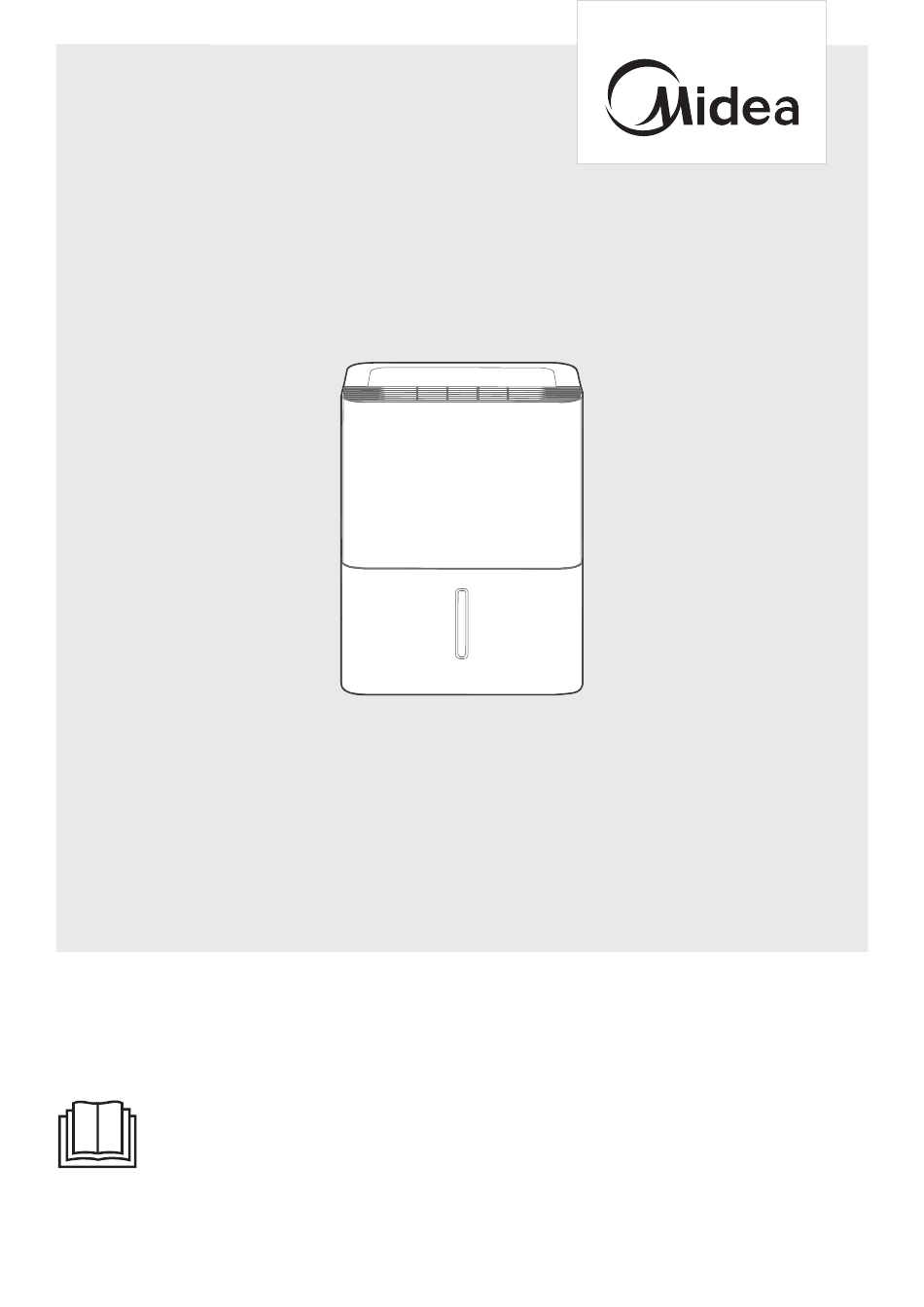

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDDN2-10DEN7-QA3 and is the answer not in the manual?

Questions and answers

Related Manuals for Midea MDDN2-10DEN7-QA3

Summary of Contents for Midea MDDN2-10DEN7-QA3

  • Page 1 DEHUMIDIFIER USER MANUAL MODEL NUMBER MDDN2-10DEN7-QA3 MDDN2-12DEN7-QA3 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

  • Page 3: Table Of Contents

    THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS It’s really important you read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. Explanation of Symbols WARNING The signal word indicates a hazard with a medium level of risk...
  • Page 5 WARNING Do not use in areas where chemicals are handled. • • Never insert your finger or other foreign objects into grills or openings. Take special care to warn children of these dangers. • Do not place heavy object on the power cord and take care so that the cord is not compressed.
  • Page 6 CAUTION The manufactures nameplate is located on the rear panel of the unit and contains • electrical and other technical data specific to this unit. Be sure the unit is properly grounded. To minimize shock and fire hazards, proper • grounding is important.
  • Page 7 WARNING for Using R32/R290 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those • recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition • sources (for example: open flames, an operating gas appliance or an operating electric heater).
  • Page 8 6.Information on servicing 1)Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
  • Page 9 9)Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
  • Page 10 Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished.
  • Page 11 g) Start the recovery machine and operate in accordance with manufacturer's instructions. h)Do not overfill cylinders. (No more than 80 % volume liquid charge). i)Do not exceed the maximum working pressure of thecylinder, even temporarily. j)When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed o .

  • Page 12: Specifications

    SPECIFICATIONS Product Model MDDN2-12DEN7-QA3 MDDN2-10DEN7-QA3 MDDN2-12DEN7-QA3 220-240V~ 50Hz, 1Ph 220-240V~ 50Hz, 1Ph Power source 10 L/DAY 12 L/DAY Capacity (DB=30 RH=80%) 1.6 6 9 6 6 A 2.0A Rated current 340W 350W Rated power input Resistance class IPX0 IPX0...

  • Page 13: Product Overview

    PRODUCT OVERVIEW NOTE ON ILLUSTRATIONS: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly di erent. The actual shape shall prevail. The unit can be controlled by the unit control panel alone. control panel air outlet grille Model A(1) air intake grille...
  • Page 14 Model C(1) handle control panel air intake grille air intake grille drain hose outlet air filter (behind the grill) Power cord band (Used only when storing the unit) caster(on some models) bucket power cord power plug front rear Model C(2) handle control panel air intake grille...

  • Page 15: Confirm It Before You Get Start

    CONFIRM IT BEFORE YOU GET START 40cm or more 40cm or more 20cm 20cm or more or more 40cm or more Front view Top view Casters(At four points on the bottom of unit) Casters can move freely. Do not force casters to move over carpet, nor move the unit with water in the bucket. (The unit may tip over and spill water.) A dehumidifier operating in a basement will have little or no e ect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area.

  • Page 16: Removing The Collected Water

    REMOVING THE COLLECTED WATER There are two ways to remove collected water. Type 1: Type 2: Bucket drainage water hose drainage (continuous) Type 1: Use the bucket · When the bucket is full, the unit will automatically stop running, and the Full indicator light will flash. ·...
  • Page 17 Type 2: water hose drainage (continuous) Water can be automatically emptied into a floor drain by attaching the unit with a water hose( 16.5*13.5 mm)(not included). · Remove the rubber plug from the back of the unit and store it in a safe location. ·...

  • Page 18: Operation Instructions 1

    OPERATION INSTRUCTIONS Control Panel Press 2s Fresh (Press 2s) Press 2s NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly di erent according to the models. Your machine may not contain some indicators or buttons.
  • Page 19 Description Press to turn the dehumidifier on and o . NOTE: The power light illuminates when the unit is switched on and turns dark when the unit is switched o . When Humidity/Temperature sensor POWER ON/OFF malfunction occurs, the power light blinks at 5 times per second (on some models).
  • Page 20 Other features Bucket Full Light Auto Shut O Glows when the bucket is ready to be emptied, or The dehumidifier shuts o when the bucket is full, or when the bucket is removed or not replaced in the when the bucket is removed or not replaced in the proper position.

  • Page 21: Cleaning And Maintenance 1

    CLEANING AND MAINTENANCE Care and cleaning of the dehumidifier Turn the dehumidifier o and remove the plug from the wall outlet before cleaning. Clean the Grille and Case Use water and a mild detergent. Do not use bleach or abrasives. Do not splash water directly onto the main unit.
  • Page 22 · Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher. To attach: · Insert the air filter into the unit from underside to upside for model C. NOTE: When re-install the filter, please pat the middle buckles of the filter first and then pat the bottom bukcle.

  • Page 23: Troubleshooting

    TROUBLESHOOTING Before calling for service, review the chart below first yourself. Problem What to check Make sure the dehumidifier s plug is pushed completely into the outlet. Check the house fuse/circuit breaker box. Unit does not start Dehumidifier has reached its preset level or bucket is full. Water bucket is not in the proper position.

  • Page 24: Trademarks, Copyrights And Legal Statement

    Midea Group and/or its a liates (“Midea”), to which Midea owns trade- marks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark.

  • Page 25: Data Protection Notice

    European Economic Area. Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via MideaDPO@midea.com.
  • Page 26 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version.
  • Page 28 CD002UI-DN/DE(a) 20230425...
