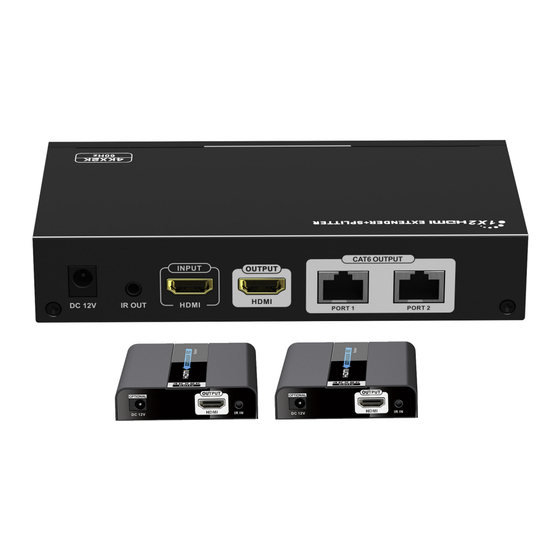

- Page 1 4K 60Hz 2 PORT HDMI EXTENDER SPLITTER 30M PSG3425...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 1. Power input Connect with DC12V/2A power adapter (supplied) 2. IR signal output Connect with IR transmitter extension cable, face the emitter towards the source device IR receiver panel 3 HDMI input Connect with the source device 4. HDMI output Connect with HDMI display device 5.
-
Page 4: Installation
INSTALLATION • Connect the source device to the HDMI in port of the transmitter with an HDMI cable, and connect the HDMI out port of the receivers to each display device with a second HDMI cable. • Connect the CAT out port of the transmitter and the CAT in port of the receivers via a network cable (CAT6/CAT6A/CAT7). -
Page 5: Specifications
IR User Guide: • IR receiver extension cables should be connected to the IR IN port of the receivers. Only use one remote control in one location at a time to avoid conflict. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter.
