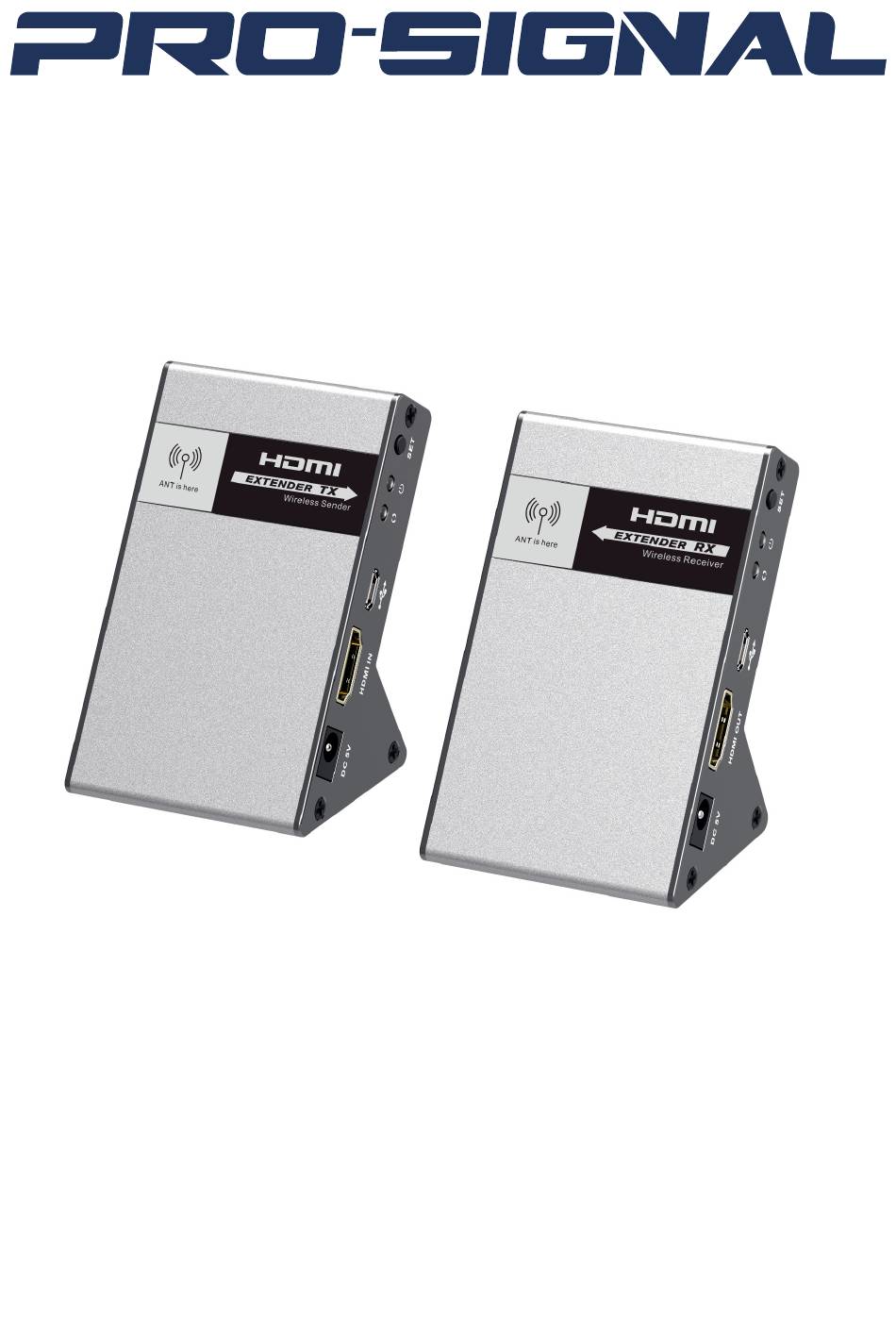

- Page 1 4K 30Hz 10M WIRELESS EXTENDER PSG3424...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 1. Power input Connect with PSU. 2. HDMI input Connect with HDMI source device. 3 Micro USB Connect to the source device USB port (optional). 4. Transmission LED Slow flash LED indicates the unit has started radio transmission and has not yet found the receiver, transmitter is in scan mode, searching for a matching receiver.
-
Page 4: Installation
INSTALLATION • Connect the transmitter HDMI input with HDMI source device. • Connect the receiver HDMI output with HDMI display device. • Connect the power supplies to both transmitter and receiver and plug into the mains supply and turn on the power. •... -
Page 5: Specifications
SPECIFICATIONS Voltage/Current DC 5V/1A Power consumption TX: <2.5W RX: <2.5W HDMI compliance HDMI 1.4 HDCP compliance HDCP 2.2 HDMI resolution 80i@60Hz, 480p@60Hz, 576i@50Hz. 576p@50Hz. 720p@50/60Hz. 1080i@50/60Hz. 1080p@50/60Hz 1080p@50/60Hz/120Hz, 3840x2160@24/30Hz Audio formats supported CH 7.1/LPCM/DTS-HD/Dolby-AC3 Maximum transfer rate 10.2Gbps Input and output TMDS 0.7~1.2Vp-p(TMDS) signal Input and output DDC...
