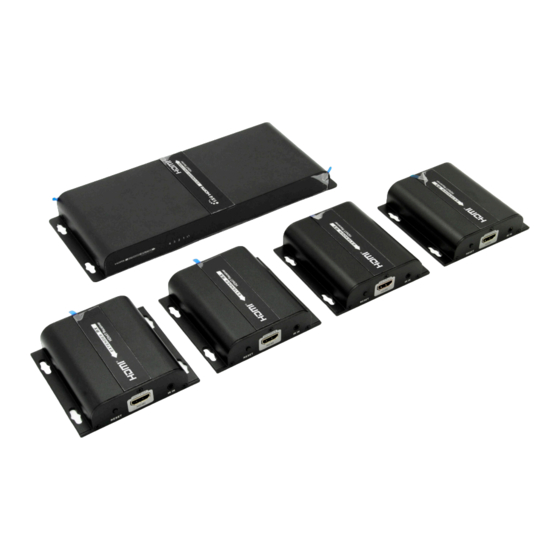

- Page 1 1080P HDMI EXTENDER SPLITTER 120M PSG3427...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 1. Reset button Press to restart the device 2. HDMI input Connect with the source device 3. IR out Connect with IR extension cable 4. RJ45 signal output Connect with network cables 5. 5VDC input Connect with 5VDC/2A power adapter 6.
- Page 4 IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. • The emitter of the IR extension cable should face as close as possible to the IR receiving window of the source device.
- Page 5 SPECIFICATIONS Input HDMI×1 (Type A, 19 pin, female) Output HDbitT×4 (RJ45 connector) Transport protocol HDbitT Transmission CAT5/80 meters, CAT5e/100 meters, CAT6/120 meters distance 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, Video support 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz Audio format TMDS signal 0.5~1.5Vp-p (TMDS) DDC signal 5Vp-p (TTL) IR passback Support 20~60KHz IR frequency devices HDCP...
