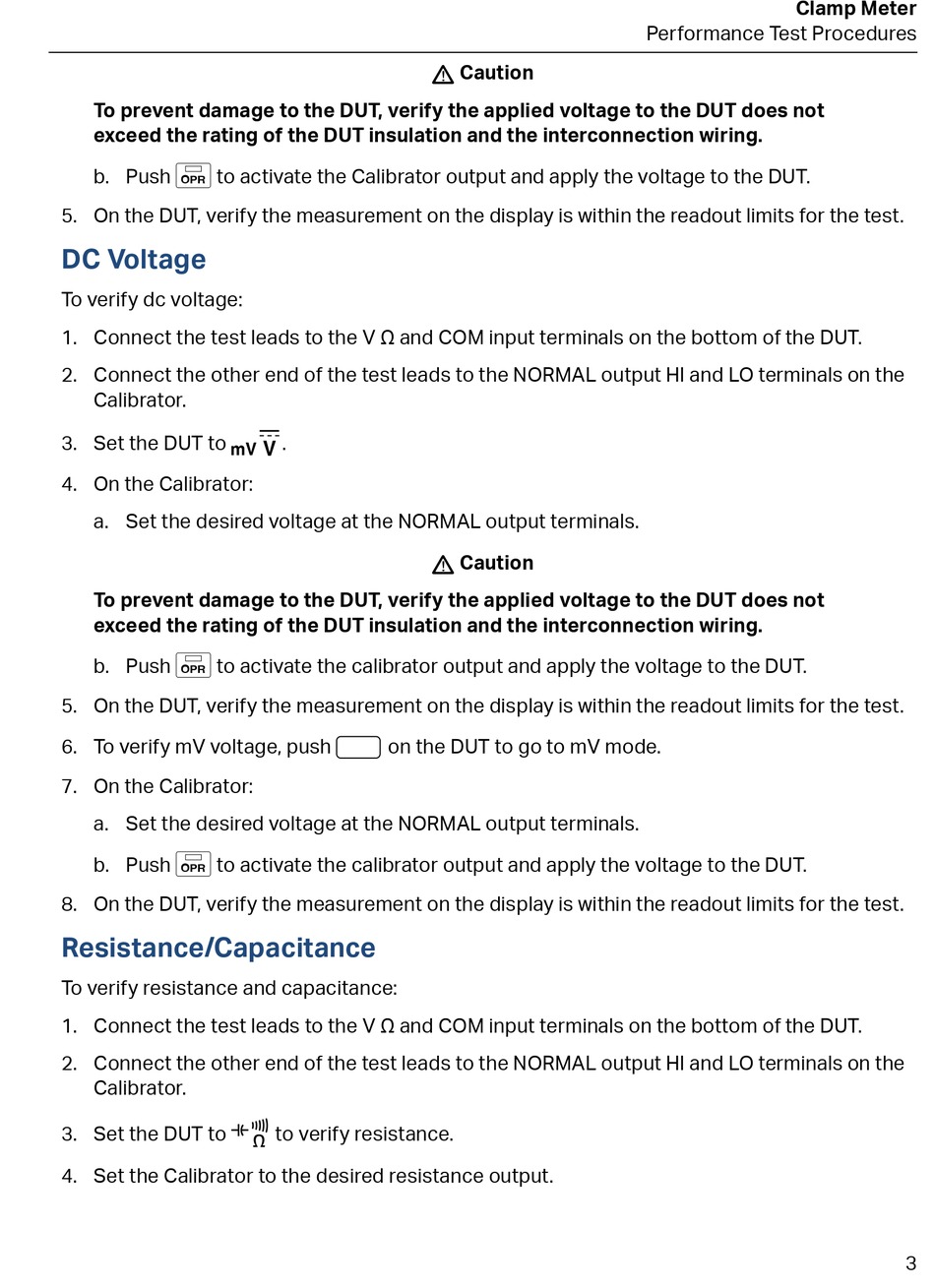

Dc Voltage; Resistance/Capacitance - Fluke 377 Calibration Manual

To prevent damage to the DUT, verify the applied voltage to the DUT does not
exceed the rating of the DUT insulation and the interconnection wiring.
b. Push M to activate the Calibrator output and apply the voltage to the DUT.
5. On the DUT, verify the measurement on the display is within the readout limits for the test.

DC Voltage

To verify dc voltage:
1. Connect the test leads to the V Ω and COM input terminals on the bottom of the DUT.
2. Connect the other end of the test leads to the NORMAL output HI and LO terminals on the
Calibrator.
N
3. Set the DUT to
4. On the Calibrator:
a. Set the desired voltage at the NORMAL output terminals.
To prevent damage to the DUT, verify the applied voltage to the DUT does not
exceed the rating of the DUT insulation and the interconnection wiring.
b. Push M to activate the calibrator output and apply the voltage to the DUT.
5. On the DUT, verify the measurement on the display is within the readout limits for the test.
6. To verify mV voltage, push
7. On the Calibrator:
a. Set the desired voltage at the NORMAL output terminals.
b. Push M to activate the calibrator output and apply the voltage to the DUT.
8. On the DUT, verify the measurement on the display is within the readout limits for the test.

Resistance/Capacitance

To verify resistance and capacitance:
1. Connect the test leads to the V Ω and COM input terminals on the bottom of the DUT.
2. Connect the other end of the test leads to the NORMAL output HI and LO terminals on the
Calibrator.
D
3. Set the DUT to
4. Set the Calibrator to the desired resistance output.
 Caution
.
 Caution
B
on the DUT to go to mV mode.
to verify resistance.
Clamp Meter
Performance Test Procedures
3
