Buyers SaltDogg 14708F463211 Instruction Manual

Stainless Steel Hopper Spreaders,
Auger Feed
Contents
Stainless Steel Self-Contained Hopper Spreaders ............ 1
Recommended Vehicle Requirements: .............................. 1
Average Material Weights ................................................... 1
Safety Precautions ............................................................. 1
Safety Symbols .................................................................. 2
Installation Instructions ...................................................... 3
Control Box and Vehicle Wiring Harness Installation ......... 3
Spinner/Chute Assembly Operation ................................... 4
Installation Instructions - Hydraulic Models ....................... 5
Spreader Operation - Hydraulic Models ............................ 5
Spreader Maintenance ....................................................... 6
SPREADER WARRANTY INFORMATION
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein.
Buyers Products Company warrants all parts of the product to be free from
defects in material and workmanship for a period of one (1) year. Parts must
be properly installed and used under normal conditions. Normal wear is
excluded.
Any part which has been altered, including modifications, misuse, accident,
or lack of maintenance will not be considered under this warranty.
The sole responsibility of Buyers Products Company under this warranty is
limited to repairing or replacing any part(s) which are returned, prepaid, 30
days after such defect is discovered, and returned part(s) are found to be
defective by Buyers Products Company.
Authorization from Buyers Products Company must be obtained before
returning any part. The following information must accompany defective
parts returned to Buyers Products Company: RMA#, spreader model, serial
number, date installed, and distributor from whom purchased.
Buyers Products Company shall not be liable for damage arising out of failure
of any unit to operate properly, or failure, or delay in work, or for any conse-
quential damages. No charges for transportation or labor performed on any
part will be allowed under this warranty.
Spreader Models and Specifications
HOPPER
MODEL # POWER LENGTH
14708F463211 Hydraulic 96
14708F467211 Electric 96
14709F463211 Hydraulic
108
14709F467211 Electric
108
14709F523211 Hydraulic 108
14709F527211 Electric 108
14710F463211 Hydraulic 120
14710F467211 Electric 120
14710F523211 Hydraulic
120
14710F527211
Electric 120
Installation Manual
OVERALL OVERALL EMPTY CAPACITY
LENGTH WIDTH WEIGHT
115 70 1328
115 70 1328
127 70 1443
127 70 1443
127 70 1551
127 70 1551
139 70 1526
139 70 1526
139 70 1641
139 70 1641
General Information

Recommended Vehicle Requirements:

This spreader is to be used on trucks with dump bodies or
flatbed trucks with a Gross Vehicle Weight Rated chassis
of 15,000 lbs. or greater.
Do not overload vehicle beyond the vehicle's Gross
Vehicle Weight Rating (GVWR) or Gross Axle Weight
Ratings (GAWR). Check the vehicle's load rating certi-
fication sticker for maximum vehicle capacity.

Average Material Weights:

MATERIAL WEIGHT (pounds per cubic yard)
• Rock Salt - 2,160 lbs per cubic yard
• Sand weight, course dry - 2,565 lbs per cubic yard
• Sand weight, course wet - 3,240 lbs per cubic yard
Note: To calculate the total Gross Spreader Weight
(including ice control material), add the empty spreader
weight plus the ice control material and spreader
(YDS.)
3.00 accessories.
3.00

Safety Precautions

4.00
4.00
5.00
5.00 This symbol points out important safety instructions which,
if not followed, could endanger the personal safety and/or
4.50
property of yourself and others. Read and follow all instructions
4.50
in this manual before attempting to install or operate this
5.00
spreader. Failure to comply with these instructions may result in
5.00
personal injury. When you see this symbol. HEED ITS WARNING!
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003

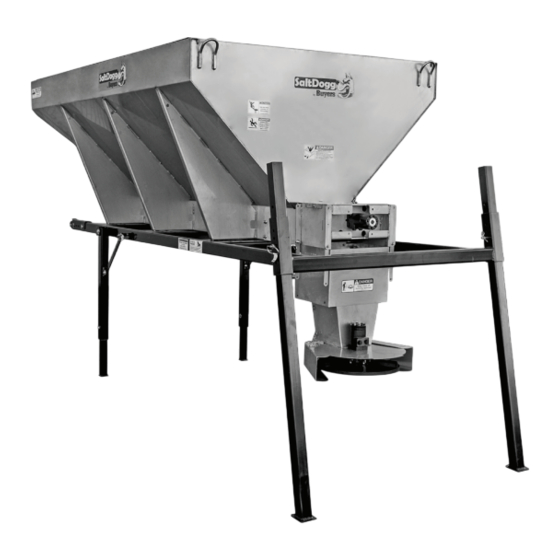

shown with optional
spreader stand
CAUTION
