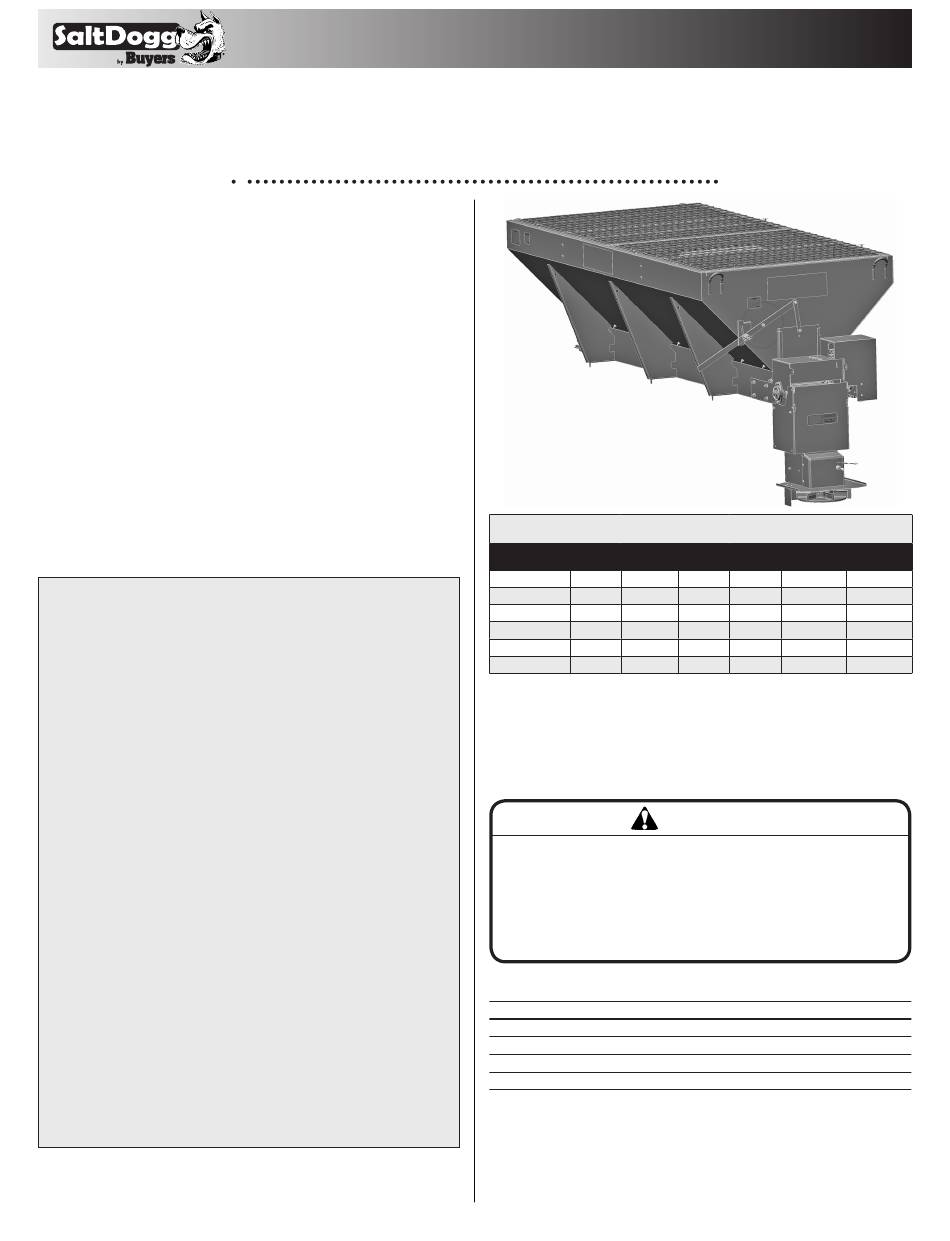

Buyers SaltDogg 1400455SSE Installation Manual

Stainless steel self-contained hopper spreaders

Advertisement

Quick Links

Stainless Steel
Self-Contained Hopper Spreaders

Table of Contents

Warranty Information ...................................................................1
General Information ..................................................................1-2
Safety Precautions .......................................................................2
Installation Instructions ............................................................ 2-6
Operation Instructions ...........................................................5 & 6
Spreader Maintenance ...........................................................5 & 6
Drawings ................................................................................. 7-12
SPREADER WARRANTY INFORMATION
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein.
Buyers Products Company warrants all parts of the product to be free from
defects in material and workmanship for a period of one (1) year, excluding
the gasoline engine, from the date of installation. Parts must be properly
installed and used under normal conditions. Normal wear is excluded.
Any part which has been altered, including modifications, misuse, accident,
or lack of maintenance will not be considered under this warranty.
The sole responsibility of Buyers Products Company under this warranty is
limited to repairing or replacing any part(s) which are returned, prepaid, 30
days after such defect is discovered, and returned part(s) are found to be
defective by Buyers Products Company.
Authorization from Buyers Products Company must be obtained before
returning any part. The following information must accompany defective
parts returned to Buyers Products Company: RMA#, spreader model, serial
number, date installed, and distributor from whom purchased.
Buyers Products Company shall not be liable for damage arising out of
failure of any unit to operate properly, or failure, or delay in work, or for any
consequential damages. No charges for transportation or labor performed
on any part will be allowed under this warranty.
The gasoline engine is solely warranted through engine's manufacturer. All
engine related warranty claims are to be processed through the engine's
manufacturer. This information is explained in the engine owner's manual.
Installation Manual
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com
Spreader Models and Specifications
HOPPER
MODEL #
POWER
LENGTH
1400455SSE
Electric
96"
1400455SSH
Hydraulic
96"
1400460SSE
Electric
108"
1400460SSH
Hydraulic
108"
1400465SSE
Electric
118"
1400465SSH
Hydraulic
118"

General Information

1. Recommended Vehicle Requirements:
This spreader is to be used on trucks with dump bodies or flat
bed trucks with a Gross Vehicle Weight Rated chassis of 15,000
lbs. or greater.
Do not overload vehicle beyond the vehicle's Gross
Vehicle Weight Rating (GVWR) or Gross Axle Weight
Ratings (GAWR). Check the vehicle's load rating
certification sticker for maximum vehicle capacity.
2. Average Material Weights:
MATERIAL
#1 Rock Salt
#2 Rock Salt
Coarse Sand - Dry
Coarse Sand - Wet
Note: To calculate the total spreader weight (including ice
control material); add the empty spreader weight plus the
ice control material and spreader accessories.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
OVERALL
OVERALL
EMPTY
LENGTH
WIDTH
WEIGHT
116.5"
58"
1,335 lbs.
118.8"
58"
1,335 lbs.
128.5"
58"
1,400 lbs.
130"
58"
1,400 lbs.
132"
58"
1,466 lbs.
132"
58"
1,466 lbs.
CAUTION
WEIGHT (POUNDS PER CUBIC YARD)
950
1,215
2,565
3,240
CAPACITY
2.5 yds.
2.5 yds.
2.75 yds.
2.75 yds.
3.0 yds.
3.0 yds.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SaltDogg 1400455SSE and is the answer not in the manual?

Questions and answers

Summary of Contents for Buyers SaltDogg 1400455SSE

  • Page 1: Table Of Contents

    58" 1,466 lbs. 3.0 yds. Buyers Products Company warrants all parts of the product to be free from defects in material and workmanship for a period of one (1) year, excluding General Information the gasoline engine, from the date of installation. Parts must be properly 1.
  • Page 2: Safety Precautions

    Installation Instructions 3. Recommended Fastener Torques: Maintain all fastener torques as shown in the following table. 1. Mounting the Spreader onto the Vehicle: Failure to do so may cause injury to persons. A. Remove the tailgate from the vehicle. B. Lift the spreader by lifting loops on side of hopper. SAE GRADE 2 SAE GRADE 5 WARNING...
  • Page 3 2. Control Box and Vehicle Wiring Harness Installation CAUTION Make sure you have connected the proper wire color. This is wire ground electrical system! No connections to DO NOT MOUNT CONTROLLER IN THE WAY OF AIR truck’s frame or body allowed! BAG DEPLOYMENT! WARNING (it maybe necessary to drill holes).
  • Page 4 O. Optional spot light (5 AMP max) can be installed on heat can damage the wire harnesses. Use quick ties to secure harness to underbody. spreader. Remove cap from single white wire. Connect light to J. Connect the wire harness to the motor. Make sure wire this wire and trucks frame.
  • Page 5: Operation Instructions

    in chute and motor mount. Then secure chute by installing an electrical connection is made or after a connector is disconnected. 2. Grease the following: • Idler shaft bearings (2) • Bearing (1) 3. Check the Feed Chain tension periodically. To check the tension, measure in 21"-25"...
  • Page 6 2. Position valve on/off lever to off. hydraulic system to warm up. 3. After the system is warm turn the spinner and auger (conveyor chain) knobs to the desired settings. Hydraulic Plumbing Diagram 4. Changing the conveyor chain and spinner speeds as well as 3/4"...
  • Page 7: Bill Of Materials

    Hopper Assembly - Electric Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION ITEM PART NO. OTY. DESCRIPTION 3025240 HOPPER WELDMENT 10 FT 3.0 CU YD SST FNH063011054SS NUT, HH 5/8-11 X 17/32 HIGH SST 3028138 HOPPER WELDMENT 9 FT 2.75 CU YD SST 3009199 SHIELD, 10' TROUGH PS SIDE 3028151...
  • Page 8 Hopper Assembly - Hydraulic Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION ITEM PART NO. OTY. DESCRIPTION 3025240 HOPPER WELDMENT 10 FT 3.0 CU YD SST 3009199 SHIELD, 10' TROUGH PS SIDE 3028138 HOPPER WELDMENT 9 FT 2.75 CU YD SST 3008353 SHIELD, 9' TROUGH PS SIDE 3028151...
  • Page 9 Chute Assembly - Electric Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION ITEM PART NO. OTY. DESCRIPTION 3025428 UPPER CHUTE WELDMENT 3024581 PIN, CHUTE ADJUSTMENT 3025432 LOWER CHUTE WELDMENT PIN, HAIR COTTER, .09 ZINC – SCREW, HHC-3/8-16 X 3/4 SST 3024582 MOTOR COVER, CHUTE –...
  • Page 10 Chute Assembly - Hydraulic Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION ITEM PART NO. OTY. DESCRIPTION 3025428 UPPER CHUTE WELDMENT 1410241 WIPER BELT, HOPPER 3025432 LOWER CHUTE WELDMENT – WASHER, FLAT 1 /4 SAE SS – SCREW, HHC-3/8- 1 6 X 3/4 SST –...
  • Page 11 Spreader Kit - Electric Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION 3024576 HOPPER ASM,3.0 CU YD SST ELECTRIC MOTOR 3028146 HOPPER ASM,2.75 CU YD SST ELECTRIC MOTOR 3028148 HOPPER ASM,2.5 CU YD SST ELECTRIC MOTOR 3025440 CHUTE ADJUSTABLE ELECTRIC,SST 3026058 HARDWARE BOX,1400465SSE...
  • Page 12 Spreader Kit - Hydraulic Model Bill of Materials ITEM PART NO. OTY. DESCRIPTION 3024576 HOPPER ASM,3.0 CU YD SST HYDRAULIC MOTOR 3028137 HOPPER ASM,2.75 CU YD SST HYDRAULIC MOTOR 3028149 HOPPER ASM,2.5 CU YD SST HYDRAULIC MOTOR 3026061 CHUTE ADJUSTABLE HYDRAULIC,SST 3026062 HARDWARE BOX,1400465SSH 3026059 Rev B...
