Buyers SaltDogg PRO Series Installation Instructions Manual

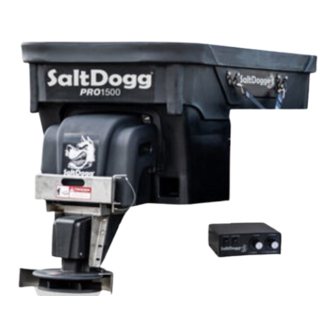

SaltDogg PRO Series
®
Electric Drive Poly Hopper Spreader
U.S. Patents 9,562,333
Table of Contents
General Information ....................................................................1
Safety Precautions ......................................................................1
Installation Instructions ........................................................... 1-5
Spreader Operation ....................................................................6
Spreader Maintenance .............................................................6-7
Repair Parts & Drawings ........................................................7-26
Warranty Information ................................................................28
General Information
SPREADER OVERALL OVERALL
MODEL SERIES LENGTH WIDTH
PRO1500 89.5" 48"
PRO2000 96" 48"
PRO2500 116.5" 48"
PRO3000 125.7" 48.6"
PRO4000 123.3 77"
PRO6000 136.3" 77"
Vehicle Requirements
SPREADER
MODEL SERIES TRUCK MINIMUM GVWR
PRO1500 8,500 lbs.
PRO2000 8,500 lbs.
PRO2500 13,000 lbs. (8 ft,. bed)
PRO3000 13,000 lbs. (8 ft,. bed)
PRO4000 15,000 lbs.
PRO6000 25,999 lbs.
Average Material Weights
This spreader is restricted to the use of dry, free-flowing salt,
sand, and sand/salt mix. Do not run other materials through the
spreader.
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Sand/Salt up to 50/50 Mix-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
Installation Instructions
OVERALL EMPTY CAPACITY
HEIGHT WEIGHT
38" 647 lbs. 1.5 cu. yd.
44.3" 705 lbs. 2.0 cu. yd.
44.3" 986 lbs. 2.5 cu. yd.
46.1" 902 lbs. 3.0 cu. yd.
47.3 812 lbs. 4.0 cu. yd.
57" 1,675 lbs. 6,0 cu. yd.
ALTERNATOR MINIMUM AMPS
150 AMP
150 AMP
150 AMP
150 AMP
150 AMP
150 AMP
Weight (pounds per cubic yard)
2,250
1,431
2,700
Do not overload vehicle beyond the vehicle's GVWR or GAWR.
Check vehicle's load rating certification sticker for maximum
vehicle capacity.
Improper installation and operation could cause personal
injury, and/or property damage. Observe the following Safety
Precautions before, during and after operating this spreader. By
following these precautions and common sense, possible injury
to persons and potential damage to this machine may be avoided.
Safety Precautions
1. Read the entire Installation Instructions before operating or
servicing this spreader.
2. Read and understand all safety decals on the spreader
before operating.
3. Check to make sure all safety guards are securely mounted
into place before operating this spreader.
STUCK
4. Verify that all personnel are clear of the spreader spray area
before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits. If there
are any questions, contact the vehicle manufacturer.
6. Do not adjust, clean, lubricate or unclog material jambs
without first turning off the spreader.
7. Do not climb on or in the spreader during operation. Do not
ride on the spreader while the vehicle is in motion.
8. Make sure the spreader is securely fastened to the vehicle in
accordance with this manual.
9. Do not operate a spreader that is in need of maintenance or
repairs.
10. Do not operate the spreader while ill, tired, or under the
influence of alcohol or drugs.
11. Batteries normally produce explosive gases which can
cause personal injury. Always disconnect the battery before
removing or replacing electrical components.
12. Do not leave unused material in hopper. Material can
freeze or solidify, causing spreader to not work properly, and/or
damage the unit. Empty and clean after each use.
Installation Instructions
1. Mounting the Spreader onto the Vehicle
A. Remove the tailgate from the vehicle (if equipped) as well as
any other object which will interfere with the spreader.
B. Check truck's bed for all kinds of sharp debris or foreign
objects. They can cut and seriously damage poly hopper.
C. Remove chute, hardware kit from inside spreader. If spreader
has been used make sure there is no material left in the hopper.
D. Lift spreader using all tie downs (Fig. 1), or using fork lift.
Lower spreader into the truck bed.
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
CAUTION
WARNING
(PRO1500, 2000, 2500 Series)
—continued inside
