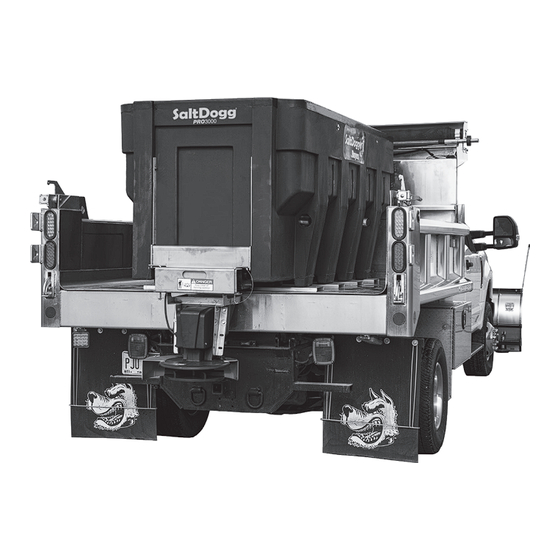

Electric drive poly hopper spreader
Hide thumbs Also See for SaltDogg PRO3000 Series:

Advertisement

Quick Links

PRO3000 &PRO3000CH Series SaltDogg
Electric Drive Poly Hopper Spreader
3.0 cubic yards
U.S. Patent 9,562,333
Table of Contents
General Information ....................................................................1
Safety Precautions ......................................................................1
Installation Instructions ........................................................... 1-3
Spreader Operation ....................................................................4
Spreader Maintenance ............................................................ 4-5
Repair Parts & Drawings ......................................................... 5-8
Warranty Information ..................................................................8
General Information
Overall Length: 125.7 inches
Overall Width: 48.6 inches
Overall Height: 46.1 inches
Empty Weight: 902 lbs.
Capacity Struck: 3.0 cu. yd.
Vehicle Requirements
Trucks with minimum GVWR 13,000 lbs. (8 ft. bed),
150 AMP or higher alternator is recommended.
Materials Recommended to Spread
Average Material Weights
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Coarse Sand-Dry
Sand/Salt up to 50/50 Mix-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
Safety Precautions
CAUTION
Do not overload vehicle beyond the vehicle's GVWR or GAWR.
Check vehicle's load rating certification sticker for maximum
vehicle capacity.
WARNING
Improper installation and operation could cause personal
injury, and/or property damage. Observe the following Safety
Precautions before, during and after operating this spreader. By
following these precautions and common sense, possible injury
to persons and potential damage to this machine may be avoided.
Installation Instructions
Weight (pounds per cubic yard)
2,250
1,431
2,565
2,700
®
1. Read the entire Installation Instructions before operating this
spreader.
2. Read and understand all safety decals on the spreader
before operating.
3. Check to make sure all safety guards are securely mounted
into place before operating this spreader.
4. Verify that all personnel are clear of the spreader spray area
before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits. If there
are any questions, contact the vehicle manufacturer.
6. Do not adjust, clean, lubricate or unclog material jambs
without first turning off the spreader.
7. Do not climb on or in the spreader during operation. Do not
ride on the spreader while the vehicle is in motion.
8. Make sure the spreader is securely fastened to the vehicle in
accordance with this manual.
9. Do not operate a spreader that is in need of maintenance or
repairs.
10. Do not operate the spreader while ill, tired, or under the
influence of alcohol or drugs.
11. Batteries normally produce explosive gases which can
cause personal injury. Always disconnect the battery before
removing or replacing electrical components.
12. Do not leave unused material in hopper. Material can
freeze or solidify, causing spreader to not work properly, and/or
damage the unit. Empty and clean after each use
It is recommended to install Backup Alarm on trucks to be up
fitted with spreaders.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (800) 841-8003
www.buyersproducts.com
CAUTION
—continued inside

Advertisement

loading
Need help?

Need help?

Do you have a question about the SaltDogg PRO3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Buyers SaltDogg PRO3000 Series

  • Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.buyersproducts.com Installation Instructions PRO3000 &PRO3000CH Series SaltDogg ® Electric Drive Poly Hopper Spreader 3.0 cubic yards U.S. Patent 9,562,333 Table of Contents General Information ..............1 Safety Precautions ..............1 Installation Instructions ............
  • Page 2 Installation Instructions Fig. 3 1. Mounting the Spreader onto the Vehicle A. Remove the tailgate from the vehicle (if equipped) as well as 2. ALIGN HOLES AND any other object which will interfere with the spreader. SECURE CHUTE USING B. Check truck’s bed for all kinds of sharp debris or foreign PINS #3033174 objects.
  • Page 3 FIT TO BED BED WIDTH Fig. 5 G. Connect fuse connector to the fuse terminal or ignition switch (5 AMP max). H. Layout a path for the power cable to the battery, use quick ties to secure power cable. DO NOT CONNECT TO BATTERY AT THIS TIME! I.
  • Page 4 Spreader Operation WARNING 1. PRO3000 is equipped with a dual independent speed Never leave material in hopper for extended period of time. controller. To start spreader, press “POWER” switch. Switch Material can freeze, solidify and seriously damage the spreader will be illuminated. Auger/ chain and spinner will start rotating. Auger and spinner can be adjusted independently.
  • Page 5 Repair Parts - Chute Assembly 4. Inspect terminals/connectors every time you disconnect spreader from wire harness. Apply thin layer of dielectric grease on terminals. If any tarnish/corrosion is found, clean terminals and apply dielectric grease. 5. Use dielectric grease on all electrical connectors before an electrical connection is made or after connector is disconnected 6.
  • Page 6: Bill Of Materials

    Repair Parts - PRO3000 Auger Hopper Assembly Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION CLAMP, HOSE .750, 13/32 HOLE 3019878 EXTENSION WIRE HARNESS 8FT MOTOR GREASE FITTING, 1/4 STD 3025124 COVER DISCHARGE SHPE3000 1410200 BEARING, FLANGED 1-1/8"...
  • Page 7 Repair Parts - PRO3000CH Chain Hopper Assembly Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION CLAMP, HOSE .750, 13/32 HOLE 3035344 GREASE FITTING 1/4TUBE 1/4-28 MALE STRAIGHT GREASE FITTING, 1/4 STD 3035345 GREASE FITTING 1/4TUBE 1/4-28 MALE 90 DEGREES 5000 HOSE CLAMP, .375 DIA 3035346...
  • Page 8 The sole responsibil- ity of Buyers Products Company under this warranty is limited to repairing or replacing any part(s), which are returned, prepaid, 30 days after such defect is discovered, and returned part(s) are found to be defective by Buyers Products Company.
